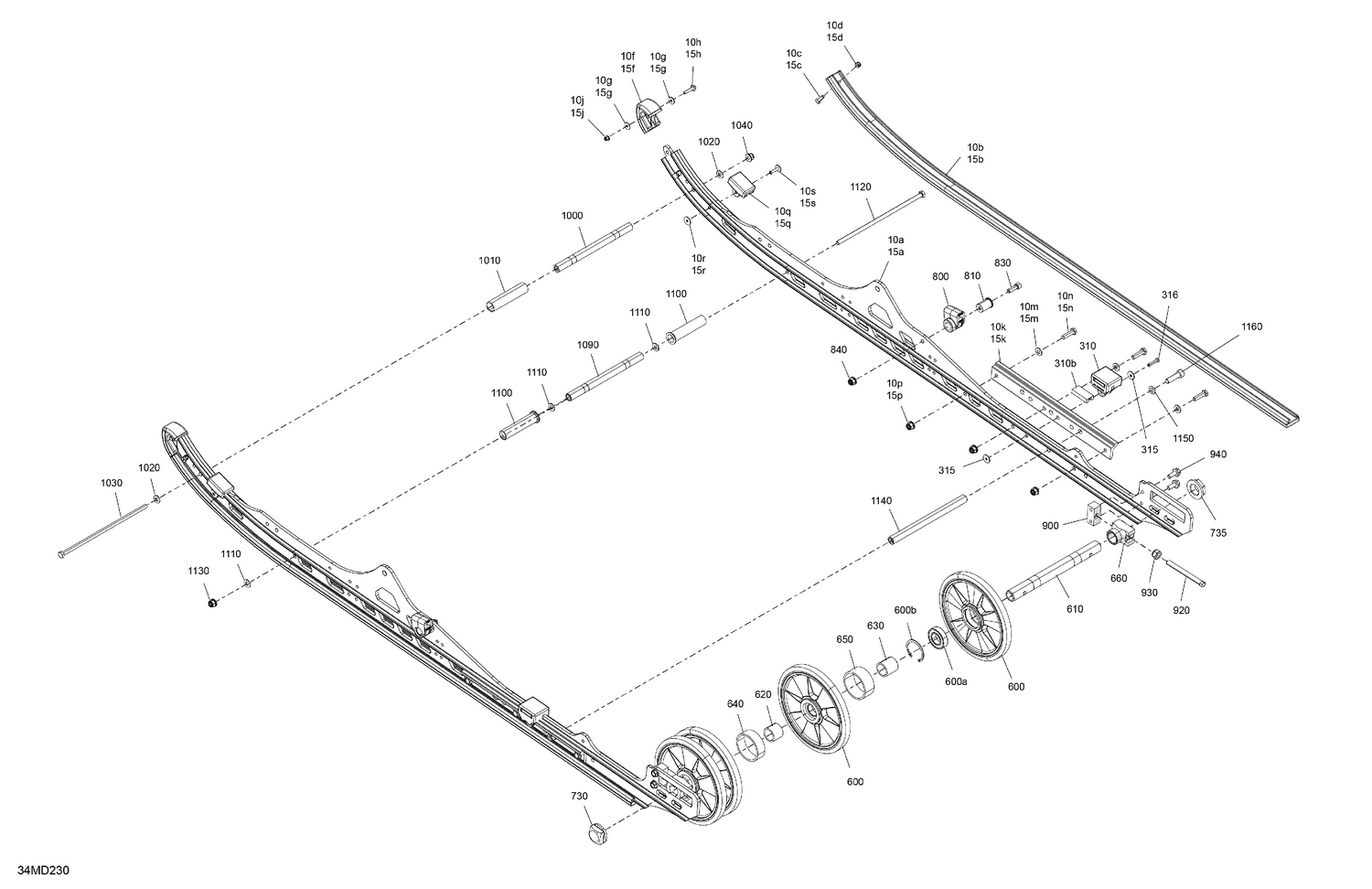

05- Suspension - Rear - Lower Section
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 503197418 | Neo Yellow, Rail Suspension 154 |
| 10b | 503191198 | Black, Slider 154 |
| 10c | 208562531 | Phillips Screw M6 X 25 |
| 10d | 232561434 | Elastic Stop Nut M6 |
| 10f | 503196872 | Rail Protector |
| 10g | 250200140 | Washer |
| 10h | 207652544 | Hex. Flange Screw M5 X 25 |
| 10j | 233251434 | Flange Elastic Nut M5 |
| 10k | 503195826 | Rail Reinforcement |
| 10m | 503192494 | Washer |
| 10n | 207183054 | Hex. Cap Screw M8 X 30 |
| 10p | 233281466 | Elastic Flange Nut M8 |
| 10q | 503190576 | Rubber Stopper |
| 10r | 503191273 | Washer |
| 10s | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 15a | 503197418 | Neo Yellow, Rail Suspension 154 |
| 15b | 503191198 | Black, Slider 154 |
| 15c | 208562531 | Phillips Screw M6 X 25 |
| 15d | 232561434 | Elastic Stop Nut M6 |
| 15f | 503196872 | Rail Protector |
| 15g | 250200140 | Washer |
| 15h | 207652544 | Hex. Flange Screw M5 X 25 |
| 15j | 233251434 | Flange Elastic Nut M5 |
| 15k | 503195826 | Rail Reinforcement |
| 15m | 503192494 | Washer |
| 15n | 207183054 | Hex. Cap Screw M8 X 30 |
| 15p | 233281466 | Elastic Flange Nut M8 |
| 15q | 503190576 | Rubber Stopper |
| 15r | 503191273 | Washer |
| 15s | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 310b | 503195523 | Rubber Stopper Ass'y |
| 315 | 503191273 | Washer |
| 316 | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 600a | 503193548 | Ball Bearing |
| 600b | 415129780 | Retaining Ring |
| 610 | 503193692 | Rear Axle |
| 620 | 503196705 | Spacer |
| 630 | 503196706 | Spacer |
| 640 | 503197262 | Spacer |
| 650 | 503197263 | Spacer |
| 660 | 503193694 | Spacer |
| 730 | 503193695 | Nut |
| 735 | 503193696 | Nut |
| 800 | 861805547 | Spring Support Kit |
| 810 | 503196210 | Bushing |
| 830 | 205082554 | Socket Screw M8 X 25 |
| 840 | 233281466 | Elastic Flange Nut M8 |
| 900 | 503193697 | Tensioner |
| 920 | 230100054 | Hex Screw M10 x 100 |
| 930 | 233601466 | Elastic Locking Nut M10 |
| 940 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 1000 | 503196930 | Axle Stopper Strap |
| 1010 | 503197291 | Spacer |
| 1020 | 503192494 | Washer |
| 1030 | 503192440 | Bolt M8 X 248mm |
| 1040 | 233281466 | Elastic Flange Nut M8 |
| 1090 | 503195954 | Pivot Axle |
| 1100 | 503195825 | Spacer |
| 1110 | 503192494 | Washer |
| 1120 | 503192440 | Bolt M8 X 248mm |
| 1130 | 233281466 | Elastic Flange Nut M8 |
| 1140 | 503191260 | Axle Strap |
| 1150 | 503192496 | Washer |
