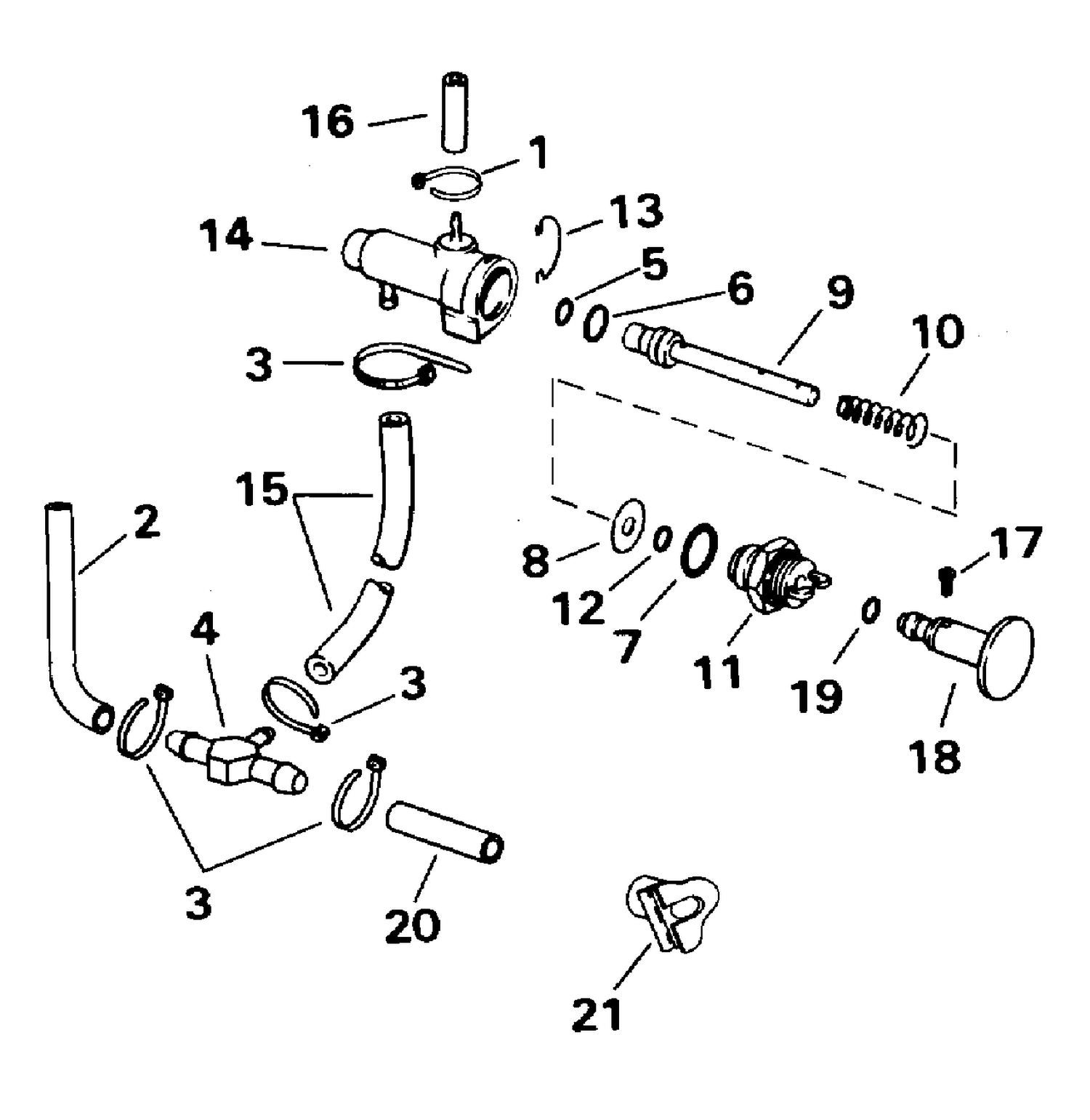

PRIMER PUMP - 15KC MODELS ONLY
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | HOSE, | Fuel pump to tee, 6 1/4 in. (159mm) |
| 3 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 4 | 0338896 | RACCORD, T flexible d'eau |
| 15 | HOSE, | Primer inlet, 15 in. (381mm) |
| 16 | HOSE, | Primer to carb., 3 1/2 in. (76mm) |
| 17 | 0329054 | SCREW |
| 18 | 0334365 | KNOB |
| 19 | 0330992 | JOINT TORIQUE, bouton |
| 20 | HOSE, | Tee to fuel filter, 9 in. (230mm) |
| 0432142 | 5007336 | Kit Ay This part replaces 0432142. |
