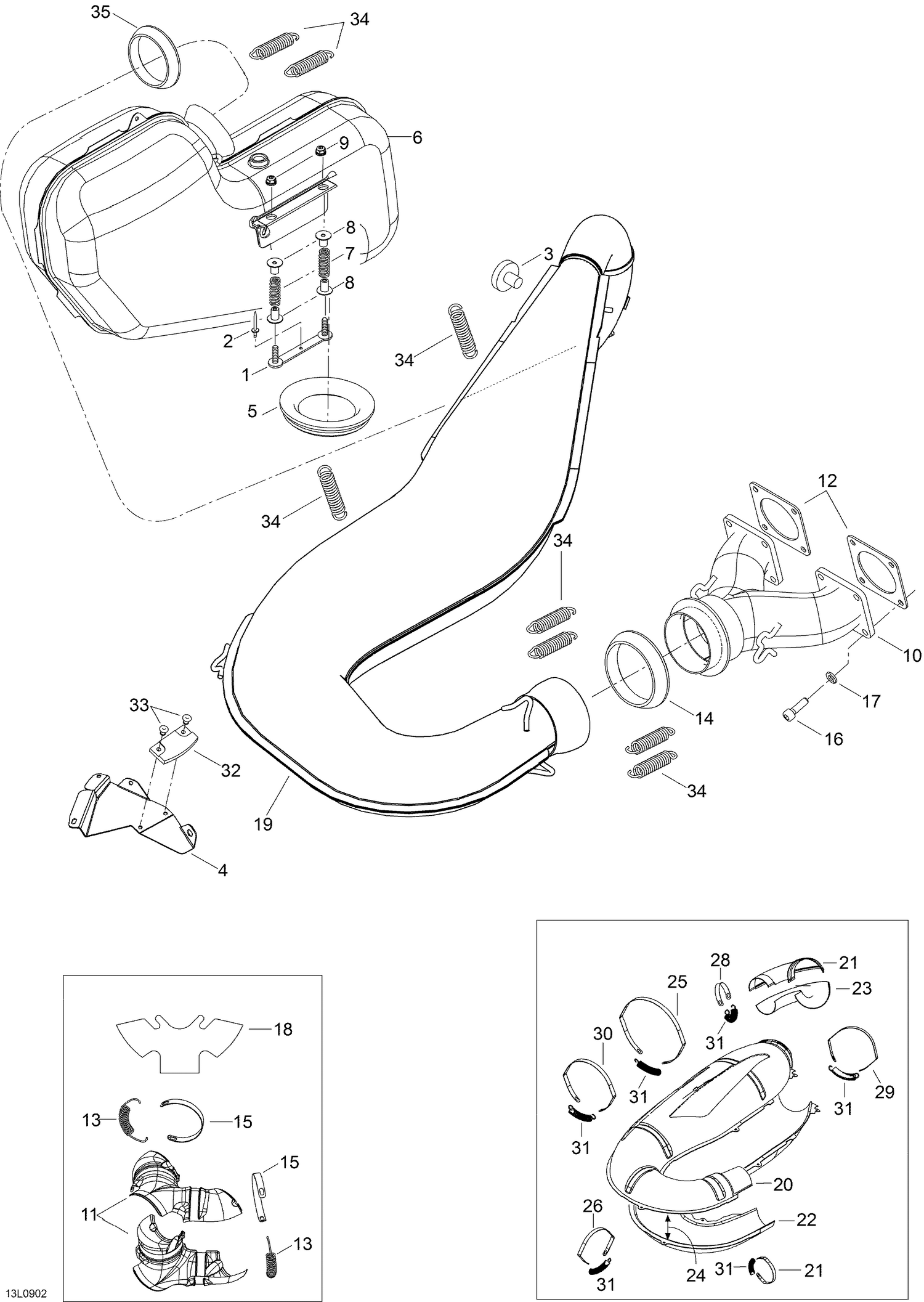

| Ref | Part Number | Description |
|---|
| 1 |
605453843 |
BRACKET - Call your local BRP dealership |
| 2 |
M36489 |
Rivet |
| 3 |
514053654 |
Rubber Bumper |
| 4 |
605351705 |
SUPPORT - Call your local BRP dealership |
| 5 |
514054224 |
Exhaust Grommet |
| 6 |
605153845 |
Muffler Ass'y |
| 7 |
414913700 |
SPRING - Call your local BRP dealership |
| 8 |
514053343 |
GUIDE - Call your local BRP dealership |
| 9 |
M33029 |
Lock Nut Vm8 |
| 10 |
420673072 |
EXHAUST MANIFOLD - Call your local BRP dealership |
| 11 |
514053593 |
Enveloppe, Exhaust Manifold |
| 12 |
420850552 |
Gasket |
| 13 |
514053643 |
Spring |
| 14 |
514053487 |
Exhaust Gasket |
| 15 |
514053603 |
RETAINING STRAP - Call your local BRP dealership |
| 16 |
M40052 |
Socket Head Screw M6 X 20 |
| 17 |
234161471 |
Lock Washer M6, Black |
| 18 |
514053588 |
INSULATING WOOL - Call your local BRP dealership |
| 20 |
Not |
Available As Spare Part - Upper Front Half Enveloppe |
| 21 |
Not |
Available As Spare Part - Upper Rear Half Enveloppe |
| 22 |
Not |
Available As Spare Part - Lower Half Enveloppe |
| 23 |
Not |
Available As Spare Part - Lower Rear Half Enveloppe |
| 24 |
Not |
Available As Spare Part - Insulation Wool |
| 25 |
Not |
Available As Spare Part - Retainer Strap |
| 26 |
Not |
Available As Spare Part - Retainer Strap |
| 27 |
Not |
Available As Spare Part - Retainer Strap |
| 28 |
Not |
Available As Spare Part - Retainer Strap |
| 29 |
Not |
Available As Spare Part - Retainer Strap |
| 30 |
Not |
Available As Spare Part - Retainer Strap |
| 31 |
Not |
Available As Spare Part - Spring |
| 32 |
514053352 |
BUMPER - Call your local BRP dealership |
| 33 |
36037 |
Black Rivet This part replaces M36037. |
| 34 |
415107100 |
Spring |
