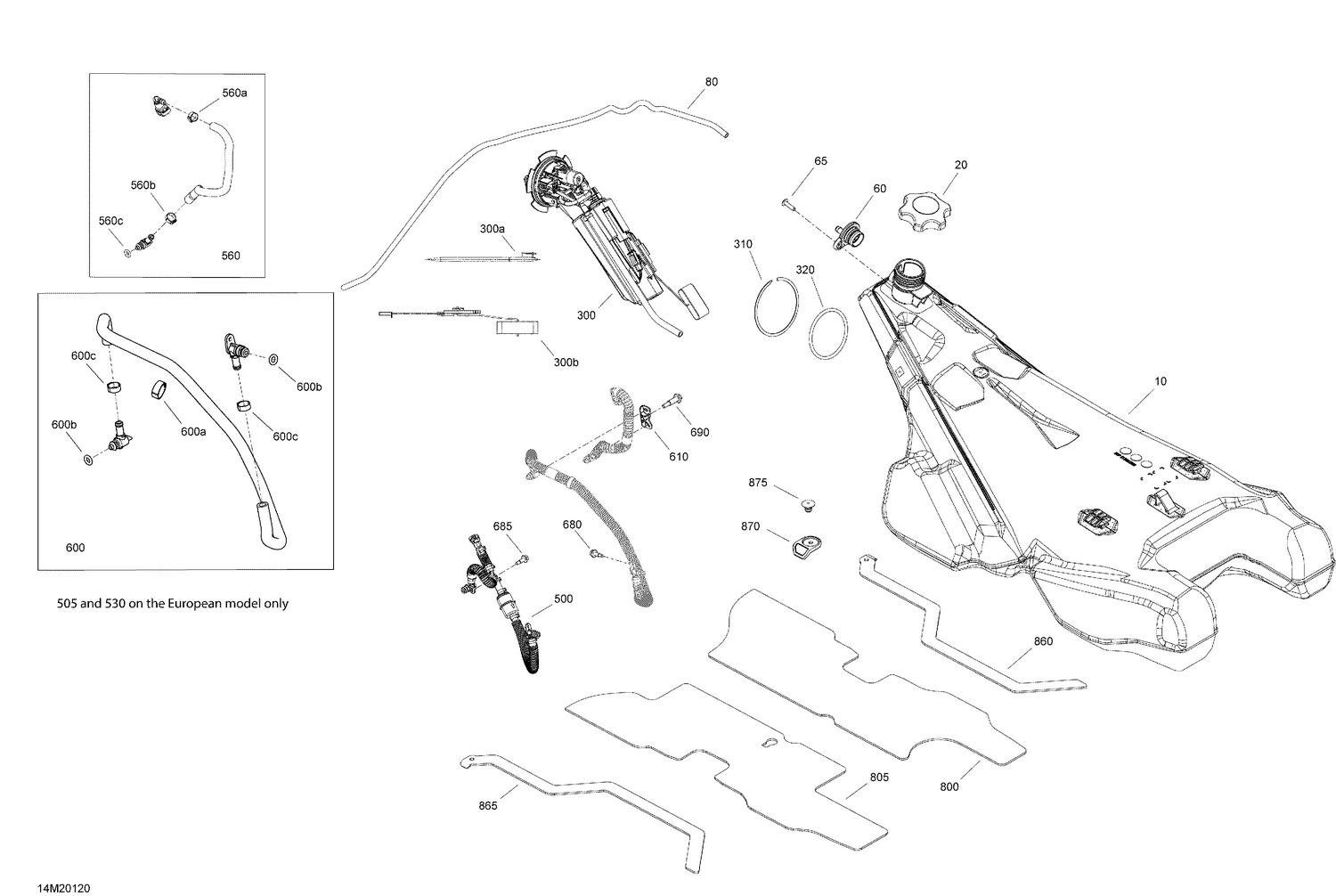

02- Engine - Fuel
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 513034100 | Fuel Tank This part replaces 513033939. |
| 20 | 513034170 | Fuel Tank Cap This part replaces 513033943. |
| 60 | 513033849 | Check Valve |
| 65 | 250000918 | Truss Torx Screw K40 X 16 |
| 80 | 219704410 | Polyurethane Hose 10000Mm Long |
| 300a | 415130508 | Filter This part replaces 415130069. |
| 300b | 415130281 | Fuel Level Sensor |
| 310 | 513033798 | Circlip |
| 320 | 513033862 | O-Ring |
| 500 | 513034021 | Hose Ass'y |
| 505 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 530 | 293650171 | Tridon Gear Clamp |
| 560a | 293650125 | Oetiker Clamp |
| 560b | 293650053 | Crimp Clamp |
| 560c | 513033668 | O-Ring |
| 600a | 513033910 | Ring |
| 600b | 513033668 | O-Ring |
| 600c | 293650053 | Crimp Clamp |
| 610 | 513033903 | Bracket |
| 680 | 250000911 | Hex. Flange Screw M5 X 16 |
| 685 | 250000911 | Hex. Flange Screw M5 X 16 |
| 690 | 250001018 | Hex. Flange Screw M5 X 28 S.Grip |
| 800 | 513033871 | Insulated Foam |
| 805 | 513033872 | Insulated Foam |
| 860 | 513033981 | RH Foam |
| 865 | 513033982 | LH Foam |
| 870 | 513033917 | Retainer Plate |
