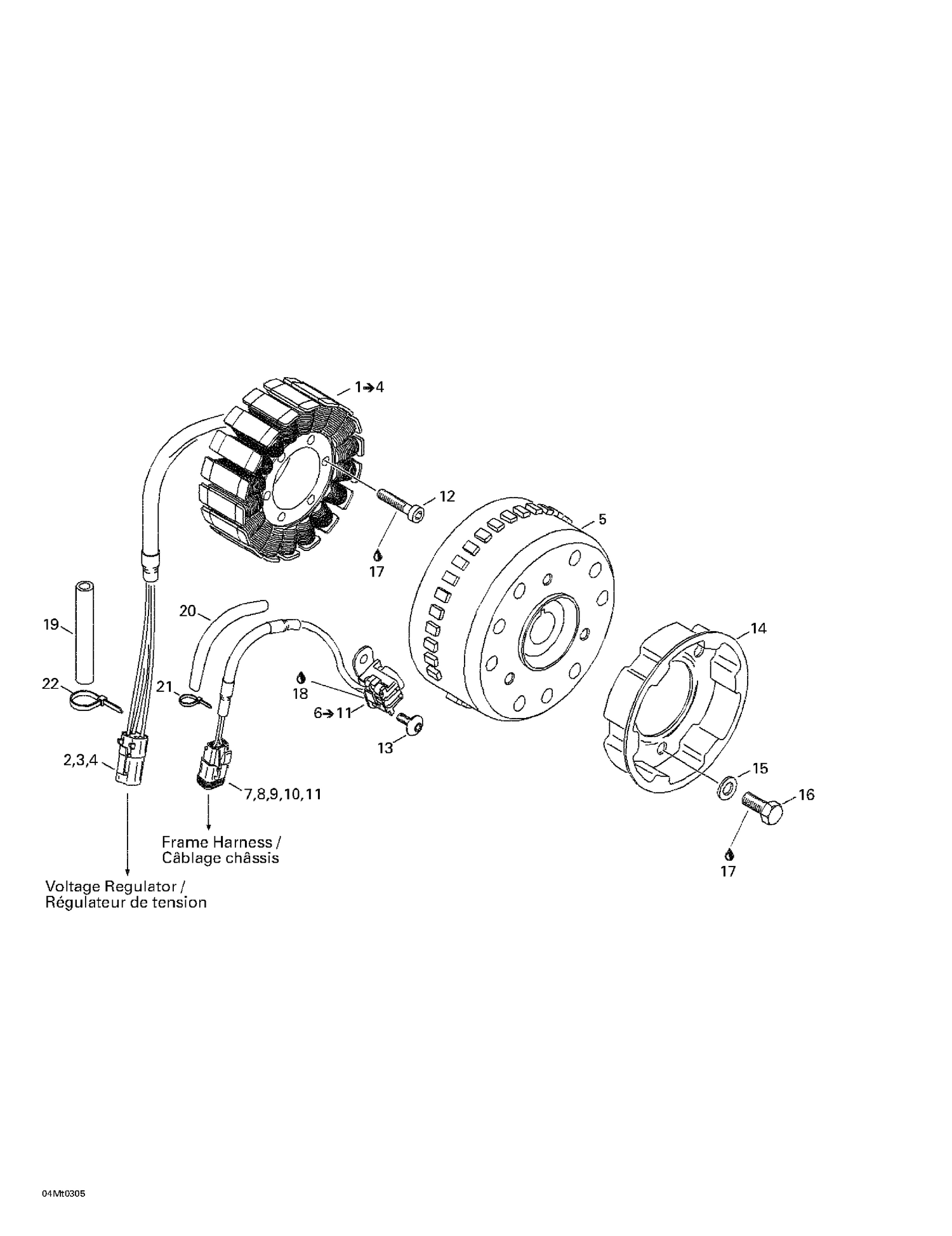

| Ref | Part Number | Description |
|---|
| 2 |
278001473 |
Female Terminal Housing, 4 Circuits |
| 3 |
515175568 |
Male Terminal |
| 4 |
278001474 |
Female Lock, 4 Circuits |
| 5 |
420866040 |
FLYWHEEL - Call your local BRP dealership |
| 7 |
515175670 |
Female Terminal Housing, 2 Circuits |
| 8 |
278000632 |
Female Terminal |
| 9 |
278001661 |
FEMALE TERMINAL - Call your local BRP dealership |
| 10 |
515175675 |
Female Lock, 2 Circuits |
| 11 |
293000052 |
Sealing Cap |
| 12 |
420241816 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 13 |
420640324 |
Torx Screw M6 X 16 This part replaces 420640321. |
| 14 |
420852533 |
Starting Pulley This part replaces 420852532. |
| 15 |
420827405 |
Flat Washer |
| 16 |
207181644 |
Hex. Screw M8 x 16 |
| 17 |
293800060 |
Loctite 243, 10 ml |
| 18 |
Not |
Available As Spare Part - Sikaflex 255, 310 ml |
| 19 |
219704407 |
Tubing 10 MM 1000MM Long |
| 20 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 21 |
293750002 |
Tie Wrap 142 mm |
