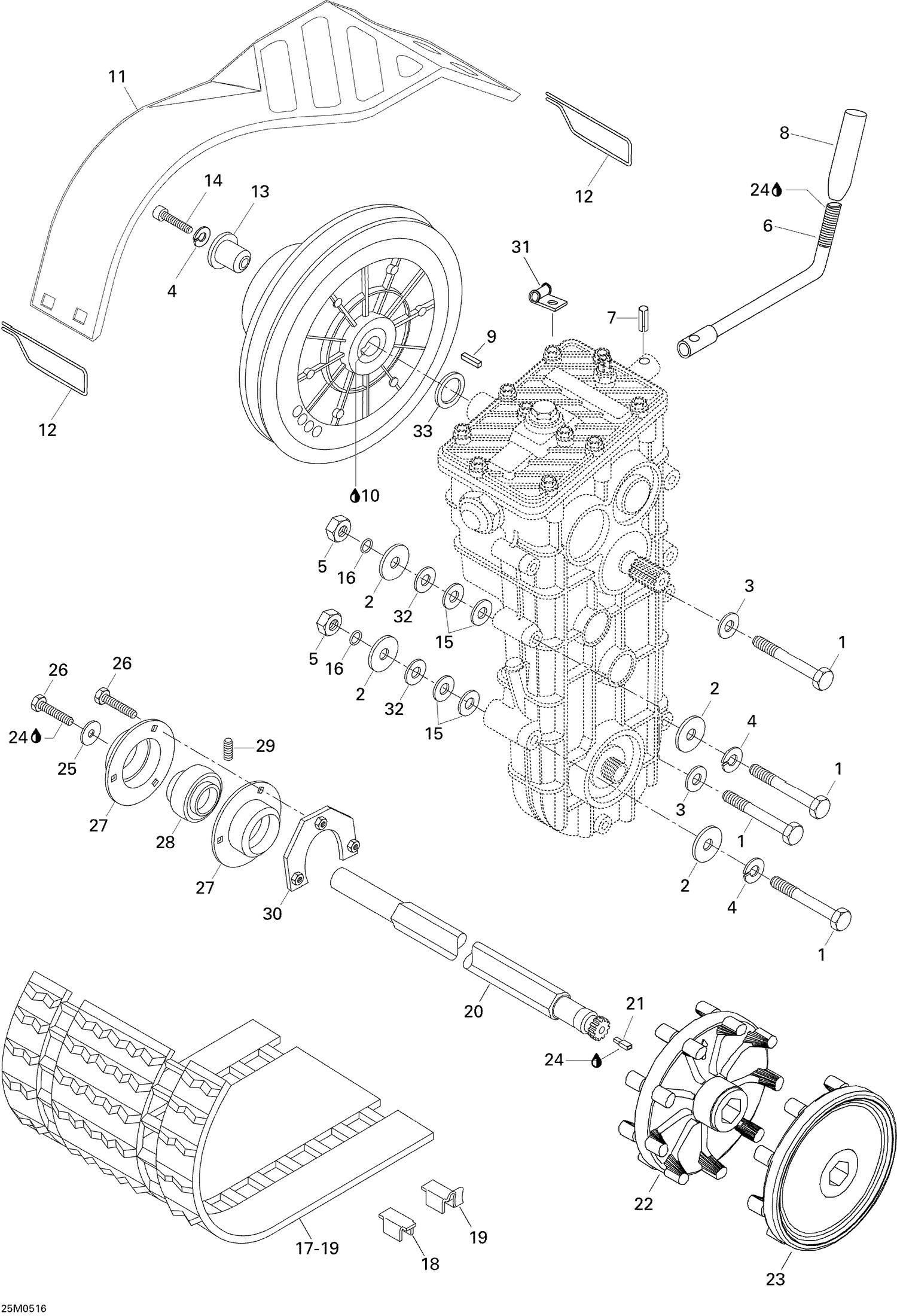

| Ref | Part Number | Description |
|---|
| 1 |
M40012 |
Screw M8 X 80 |
| 2 |
234082410 |
Flat Washer 8 mm This part replaces M20010. |
| 3 |
234081410 |
Flat Washer 8 mm |
| 4 |
234181401 |
Lock Washer 8 mm |
| 5 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 6 |
M5340902 |
Bras Vitesse *Arm-Shifter |
| 8 |
28247 |
Shift button This part replaces M28247. |
| 9 |
619690074 |
KEY - Call your local BRP dealership This part replaces M418763. |
| 10 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 11 |
M5142660 |
BELT GUARD - Call your local BRP dealership |
| 12 |
5442726 |
Pin This part replaces M5442726. |
| 15 |
XXX |
Not Available As Spare Parts |
| 16 |
XXX |
Not Available As Spare Parts |
| 18 |
M5318323 |
CLEAT-GUIDE - Call your local BRP dealership |
| 19 |
M5318322 |
CLEAT - Call your local BRP dealership |
| 21 |
542013 |
Speed Drive Insert This part replaces M542013. |
| 22 |
414931800 |
SPROCKET - Call your local BRP dealership |
| 24 |
293800060 |
Loctite 243, 10 ml |
| 25 |
M546336 |
Washer |
| 26 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336. |
| 27 |
534430 |
Bearing House This part replaces M534430. |
| 28 |
M31UC205 |
BALL BEARING - Call your local BRP dealership |
| 29 |
M31UC205 |
BALL BEARING - Call your local BRP dealership This part replaces M10531. |
| 30 |
546421 |
Fasten Ring Weld This part replaces M546421. |
| 31 |
XXX |
Not Available As Spare Parts |
| 32 |
XXX |
Not Available As Spare Parts |
