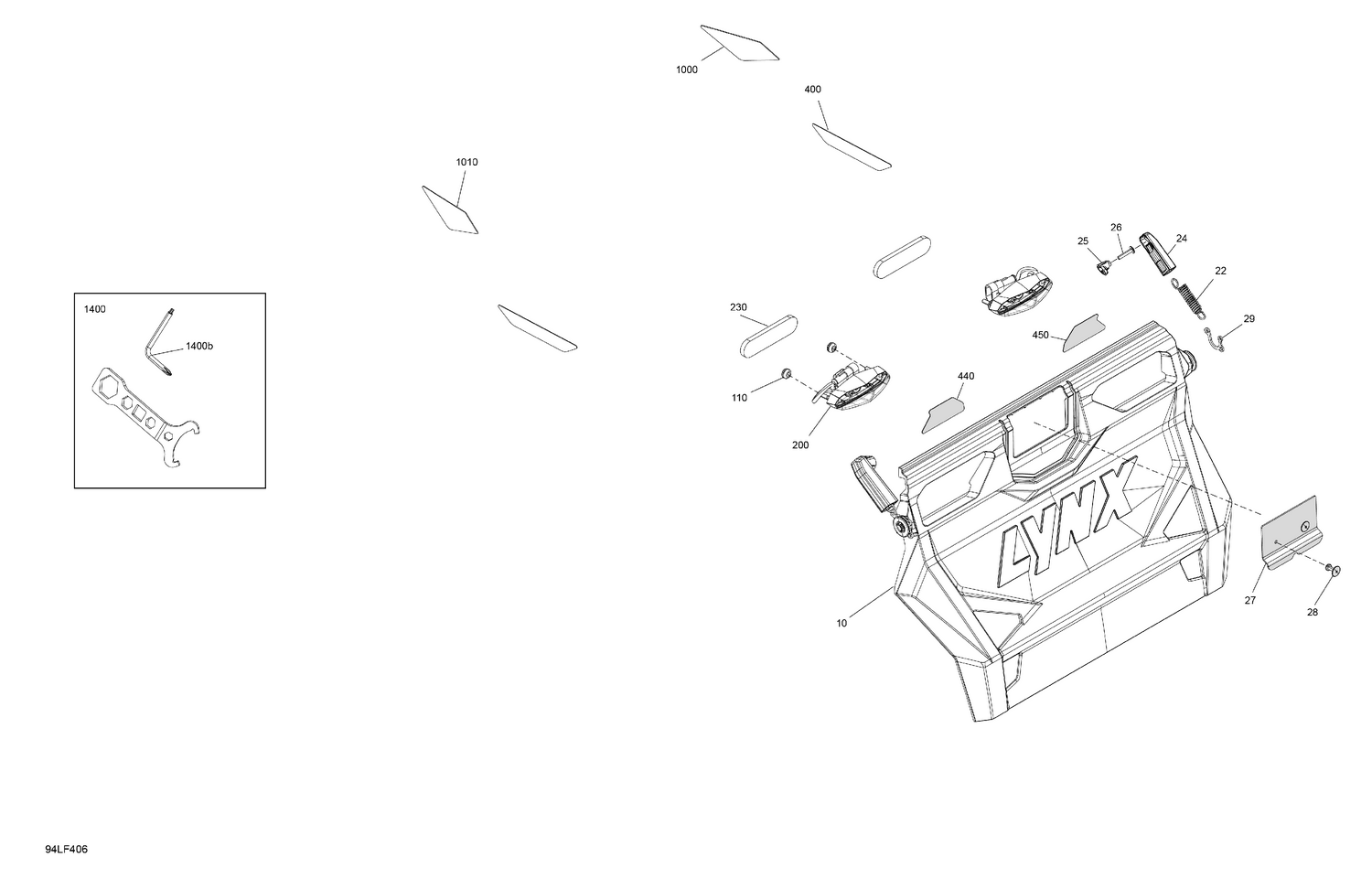

09- Miscellaneous - Utilities
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520003340 | Snow Guard |
| 22 | 520003618 | Spring |
| 24 | 520003619 | Spring Cover |
| 25 | 520003456 | Spring Support |
| 26 | 250000843 | Torx Truss Screw M6 X 30 |
| 27 | 520003547 | Cover Plate |
| 28 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 29 | 518336961 | Hook, Short |
| 110 | 293720101 | Grommet |
| 200 | 520003188 | Tail Light |
| 230 | 705015551 | Red Reflector |
| 400 | 520003529 | Red, LH/RH Rear Reflector |
| 440 | 520001740 | LH Rear Red Reflector |
| 450 | 520002016 | RH Rear Red Reflector |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
