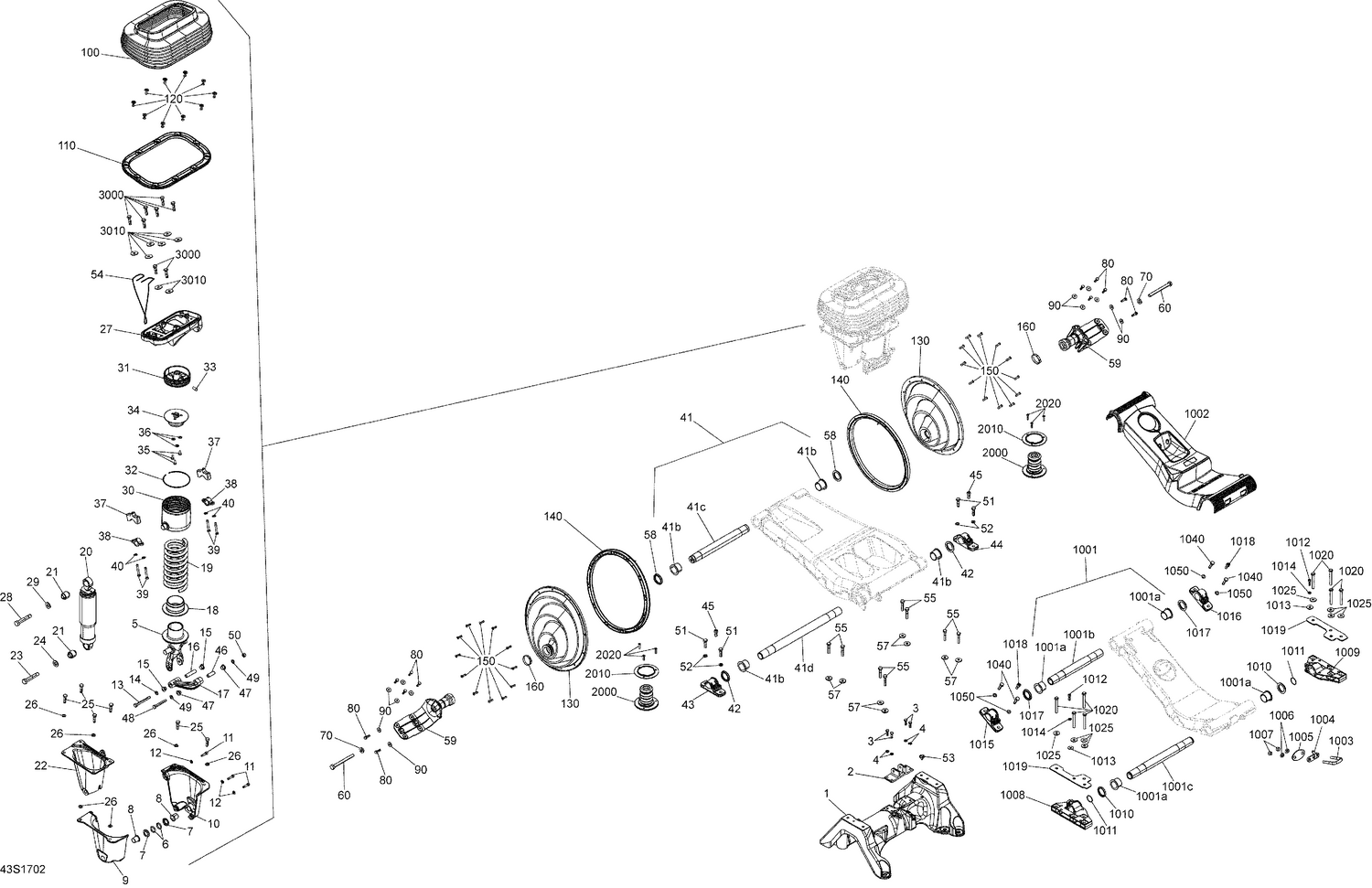

| Ref | Part Number | Description |
|---|
| 1 |
279000316 |
FRONT ARM BASE - Call your local BRP dealership |
| 2 |
279000155 |
BRACKET - Call your local BRP dealership |
| 3 |
207362060 |
Hex. Screw M6 X 20, Scotch Grip |
| 4 |
234061600 |
Stainless Flat Washer M6 |
| 5 |
279000188 |
LOWER SPRING PROTECTOR - Call your local BRP dealership |
| 6 |
279000104 |
O-RING - Call your local BRP dealership |
| 7 |
279000105 |
BUSHING - Call your local BRP dealership |
| 8 |
279000103 |
BUSHING - Call your local BRP dealership |
| 9 |
279000070 |
LH SPRING HOLDER - Call your local BRP dealership |
| 10 |
279000074 |
RH SPRING HOLDER - Call your local BRP dealership |
| 11 |
205562560 |
Socket Head Screw M6 X 25, Scotch Grip |
| 12 |
234061600 |
Stainless Flat Washer M6 |
| 13 |
207287560 |
HEX. SCREW M8 X 75, SCOTCH GRIP - Call your local BRP dealership |
| 14 |
234080600 |
Flat Washer M8, Stainless |
| 15 |
279000137 |
BUSHING - Call your local BRP dealership |
| 16 |
279000153 |
SPACER - Call your local BRP dealership |
| 17 |
279000157 |
SPRING ALIGNMENT ARM - Call your local BRP dealership |
| 18 |
279000182 |
LOWER SPRING PROTECTOR - Call your local BRP dealership |
| 19 |
279000219 |
PAINTED SPRING - Call your local BRP dealership |
| 20 |
279000218 |
SHOCK - Call your local BRP dealership |
| 21 |
279000051 |
Bushing |
| 22 |
279000055 |
SHOCK LOWER HOLDER - Call your local BRP dealership |
| 23 |
207227060 |
HEX. SCREW M12 X 70, SCOTCH GRIP - Call your local BRP dealership |
| 24 |
250200053 |
FLAT WASHER M12 - Call your local BRP dealership |
| 25 |
207383060 |
Hex. Screw M8 X 30, Scotch Grip |
| 26 |
234080600 |
Flat Washer M8, Stainless |
| 27 |
279000057 |
Shock Upper Holder |
| 28 |
207227060 |
HEX. SCREW M12 X 70, SCOTCH GRIP - Call your local BRP dealership |
| 29 |
250200053 |
FLAT WASHER M12 - Call your local BRP dealership |
| 30 |
279000189 |
UPPER SPRING HOLDER - Call your local BRP dealership |
| 31 |
279000191 |
UPPER SPRING HOLDER - Call your local BRP dealership |
| 32 |
279000198 |
Retaining Ring |
| 33 |
279000205 |
PLUNGER - Call your local BRP dealership |
| 34 |
279000183 |
Upper Spring Protector |
| 35 |
207361260 |
Hex. Screw M6 X 12, Scotch Grip |
| 36 |
234061600 |
Stainless Flat Washer M6 |
| 37 |
279000206 |
E-COAT SPACER - Call your local BRP dealership |
| 38 |
279000106 |
CLAMP - Call your local BRP dealership |
| 39 |
207364560 |
Hex. Screw M6 x 45, Scotch Grip |
| 40 |
234061600 |
Stainless Flat Washer M6 |
| 41b |
279000019 |
Bushing |
| 41c |
279000038 |
PIVOT TUBE - Call your local BRP dealership |
| 41d |
279000041 |
PIVOT TUBE - Call your local BRP dealership |
| 42 |
279000047 |
RUBBER BUMPER - Call your local BRP dealership |
| 43 |
279000089 |
LH CLAMP - Call your local BRP dealership |
| 44 |
279000092 |
RH CLAMP - Call your local BRP dealership |
| 45 |
205582060 |
Socket Head Screw M8 X 20, Scotch Grip |
| 46 |
279000138 |
SPACER - Call your local BRP dealership |
| 47 |
279000137 |
BUSHING - Call your local BRP dealership |
| 48 |
207086060 |
HEX. SCREW M8 X 60 - Call your local BRP dealership |
| 49 |
234080600 |
Flat Washer M8, Stainless |
| 50 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 51 |
207383060 |
Hex. Screw M8 X 30, Scotch Grip |
| 52 |
234080600 |
Flat Washer M8, Stainless |
| 53 |
293730040 |
Mount Dart |
| 54 |
708200118 |
RETAINING CABLE - Call your local BRP dealership |
| 55 |
250000729 |
HEX. SCREW M8 X 40, SOTCH GRIP - Call your local BRP dealership |
| 57 |
279000336 |
Flat Washer This part replaces 279000164. |
| 58 |
279000047 |
RUBBER BUMPER - Call your local BRP dealership |
| 59 |
279000306 |
FOOT REST - Call your local BRP dealership |
| 60 |
230201060 |
Hex. Screw M10 X 110, Scotch Grip |
| 70 |
211200051 |
Flat Washer |
| 80 |
207362060 |
Hex. Screw M6 X 20, Scotch Grip |
| 90 |
250200115 |
Flat Washer M6 |
| 100 |
279000008 |
CENTRAL BELLOWS - Call your local BRP dealership |
| 110 |
279000010 |
Retaining Plate |
| 120 |
293150123 |
Pop Rivet 3/16" |
| 130 |
279000009 |
Lateral Bellows |
| 140 |
279000011 |
Retaining Ring |
| 150 |
293150176 |
Pop Rivet 3/16" |
| 160 |
293650242 |
Oetiker Clamp |
| 1001a |
279000019 |
Bushing |
| 1001b |
279000031 |
PIVOT TUBE - Call your local BRP dealership |
| 1001c |
279000033 |
PIVOT TUBE - Call your local BRP dealership |
| 1002 |
279000080 |
REAR ARM MOULDING - Call your local BRP dealership |
| 1003 |
292000933 |
U-Clamp |
| 1004 |
291002351 |
Hook |
| 1005 |
291001386 |
Black, Finition Plate |
| 1006 |
234081600 |
Stainless, Flat Washer 8 mm |
| 1007 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 1008 |
279000083 |
LH REAR BASE - Call your local BRP dealership |
| 1009 |
279000087 |
RH REAR BASE - Call your local BRP dealership |
| 1010 |
279000047 |
RUBBER BUMPER - Call your local BRP dealership |
| 1011 |
279000100 |
RETAINING RING - Call your local BRP dealership |
| 1012 |
205562060 |
Socket Head Screw M6 X 20, Scotch Grip |
| 1013 |
234001600 |
Flat Washer 10 mm, Stainless |
| 1014 |
234061600 |
Stainless Flat Washer M6 |
| 1015 |
279000089 |
LH CLAMP - Call your local BRP dealership |
| 1016 |
279000092 |
RH CLAMP - Call your local BRP dealership |
| 1017 |
279000047 |
RUBBER BUMPER - Call your local BRP dealership |
| 1018 |
205582060 |
Socket Head Screw M8 X 20, Scotch Grip |
| 1019 |
279000114 |
RETAINING PLATE - Call your local BRP dealership |
| 1020 |
207285060 |
Hex. Screw M8 X 50, Scotch Grip |
| 1025 |
234082600 |
Flat Washer 8 mm, Stainless |
| 1040 |
207383060 |
Hex. Screw M8 X 30, Scotch Grip |
| 1050 |
234080600 |
Flat Washer M8, Stainless |
| 2000 |
279000193 |
RUBBER BUMPER - Call your local BRP dealership |
| 2010 |
279000115 |
Retaining Ring |
| 2020 |
293150005 |
Pop Rivet 3/16" |
| 3000 |
207383060 |
Hex. Screw M8 X 30, Scotch Grip |
