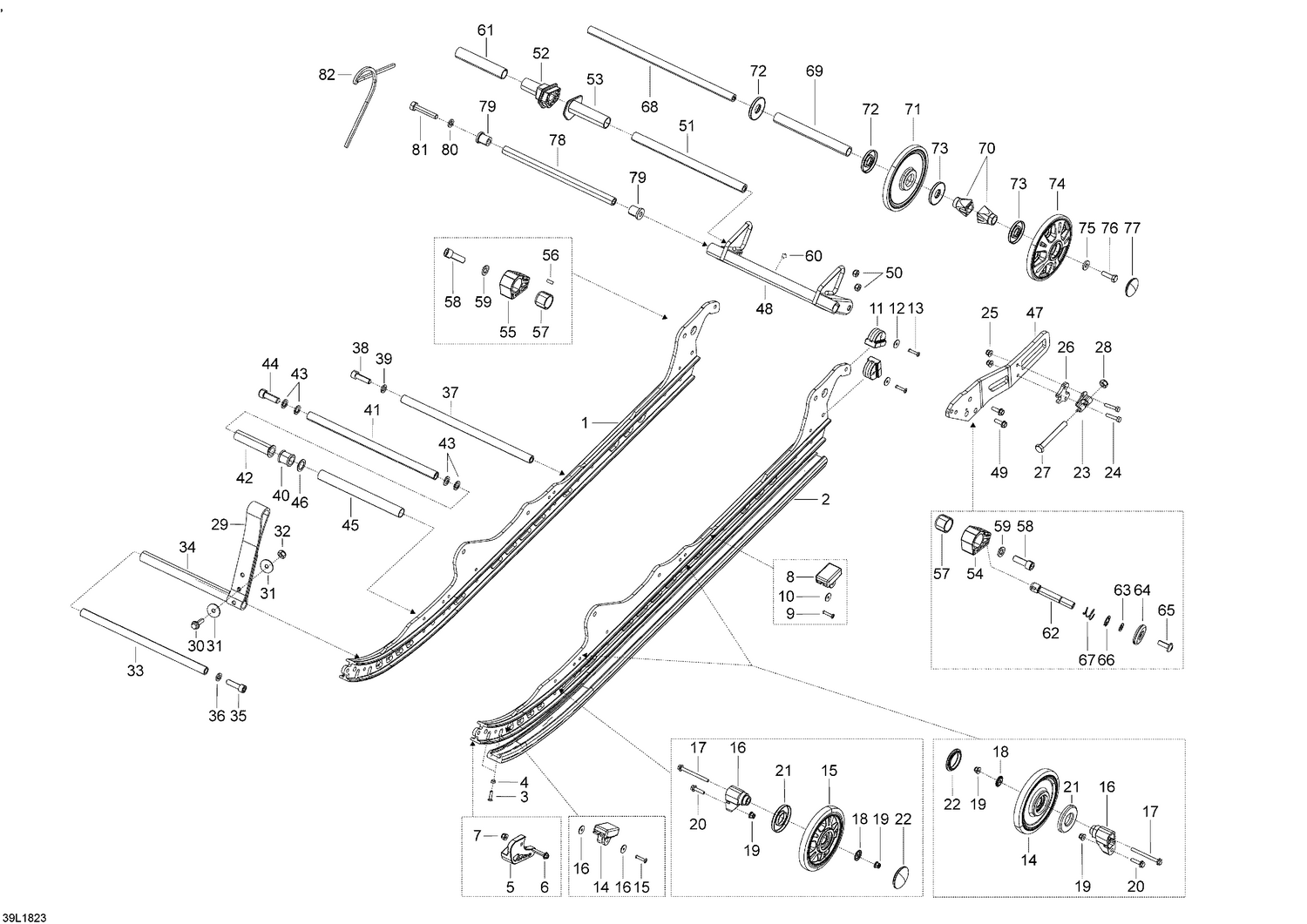

| Ref | Part Number | Description |
|---|
| 1 |
503194188 |
Runner |
| 2 |
503191619 |
Slider 137 |
| 3 |
208562531 |
Phillips Screw M6 X 25 |
| 4 |
232561434 |
Elastic Stop Nut M6 |
| 5 |
503192299 |
Runner Protector |
| 6 |
207652544 |
Hex. Flange Screw M5 X 25 |
| 7 |
233251434 |
Flange Elastic Nut M5 |
| 8 |
503190576 |
Rubber Stopper |
| 9 |
293150142 |
Pop Rivet 3/16" |
| 10 |
503191273 |
Washer |
| 11 |
503191291 |
Rubber Stopper |
| 12 |
293150142 |
Pop Rivet 3/16" |
| 13 |
503191273 |
Washer |
| 14 |
503191311 |
Black, Wheel Ass'y 147 mm |
| 15 |
503191152 |
Black, Wheel Ass'y 147 mm |
| 16 |
503193894 |
Casted Support |
| 17 |
207667056 |
Hex. Flange Screw M6 X 70 |
| 18 |
503191820 |
Wheel Cup M6 |
| 19 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 20 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 21 |
503190434 |
Labyrinth Seal |
| 22 |
503192771 |
Black, Wheel Cap |
| 23 |
503192583 |
Tensioner |
| 24 |
207063054 |
Hex. Cap Screw M6 X 30 |
| 25 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 26 |
503193250 |
Spacer |
| 27 |
230100054 |
Hex Screw M10 x 100 |
| 28 |
233601466 |
Elastic Locking Nut M10 |
| 29 |
503192360 |
Stopper Strap |
| 30 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 31 |
224081301 |
Flat Washer |
| 32 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 33 |
503191418 |
Axle Strap |
| 34 |
503191419 |
Spacer |
| 35 |
205503544 |
Socket Head Screw M10 X 35, Scotch Grip |
| 36 |
503189564 |
Washer |
| 37 |
503191418 |
Axle Strap |
| 38 |
205503544 |
Socket Head Screw M10 X 35, Scotch Grip |
| 39 |
503189564 |
Washer |
| 40 |
503189271 |
Bushing |
| 41 |
503193967 |
Shaft |
| 42 |
503191259 |
Center Bushing |
| 43 |
503189276 |
Washer |
| 44 |
205523544 |
Socket Head Screw M12 X 35, Scotch Grip |
| 45 |
503191421 |
Spacer |
| 46 |
503189273 |
Washer |
| 47 |
503193377 |
LH Rail Pivot |
| 47 |
503193378 |
RH Rail Pivot |
| 48 |
503191414 |
Welded Pivot |
| 49 |
207682534 |
Hex. Flange Screw M8 X 25 |
| 50 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 51 |
503191711 |
Cam Axle |
| 52 |
503191190 |
RH Spring Cam |
| 53 |
503191668 |
LH Spring Cam |
| 54 |
503192426 |
LH Block |
| 55 |
503192427 |
RH Block |
| 56 |
250400005 |
Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership |
| 57 |
503189488 |
Block Guide |
| 58 |
205523544 |
Socket Head Screw M12 X 35, Scotch Grip |
| 59 |
503189148 |
Washer |
| 60 |
408200700 |
Grease Fitting |
| 61 |
503191713 |
Spacer |
| 62 |
503192437 |
Rode |
| 63 |
234051410 |
Flat Washer M5 |
| 64 |
503192438 |
Handle |
| 65 |
250000742 |
Torx Screw M5 X 14 |
| 66 |
293370068 |
Circlip |
| 67 |
503192436 |
Compression Spring |
| 68 |
503191408 |
Rear Axle |
| 69 |
503196316 |
Spacer This part replaces 503191409. |
| 70 |
503190428 |
Rear Wheel Spacer |
| 71 |
503192140 |
Black, Wheel Ass'y, 165 mm |
| 72 |
503190682 |
Labyrinth Seal |
| 73 |
503190434 |
Labyrinth Seal |
| 74 |
503192128 |
Deep Black, Wheel Ass'y, 165 mm |
| 75 |
503190439 |
Washer |
| 76 |
250000019 |
Hex. Screw With Nylon |
| 77 |
503192771 |
Black, Wheel Cap |
| 78 |
503191390 |
Lower Shaft |
| 79 |
503189324 |
Bushing |
| 80 |
503192496 |
Washer |
| 81 |
250000605 |
Hex. Screw S.Grip M10 X 55 |
