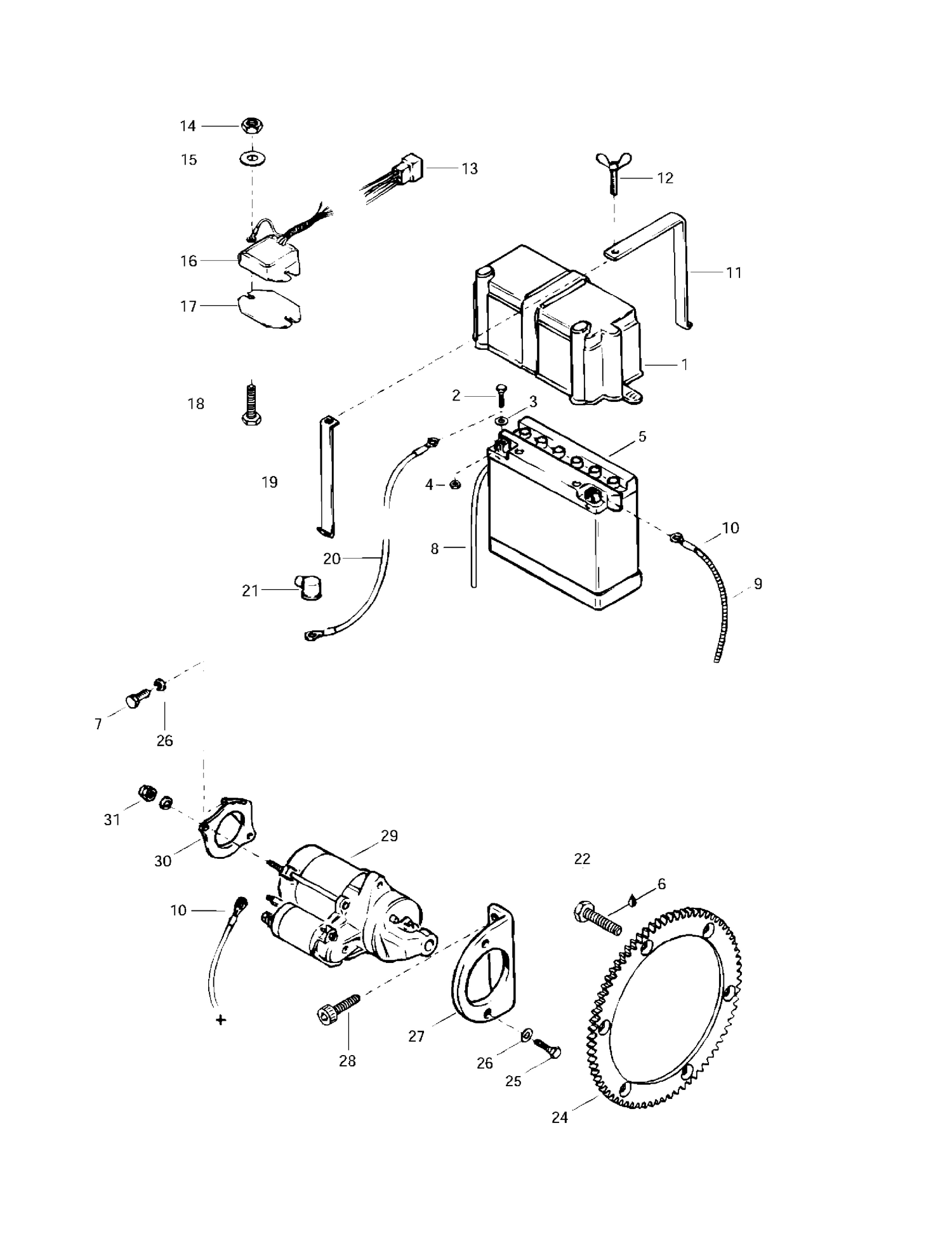

| Ref | Part Number | Description |
|---|
| 1 |
570022000 |
Battery Cover |
| 2 |
207161644 |
Hex. Screw M6 X 16 This part replaces 222061665. |
| 3 |
234061410 |
Flat Washer 6 mm This part replaces 224061151. |
| 4 |
232061414 |
Hex. Nut M6 This part replaces 228061045. |
| 5A |
391302100 |
FLAT WASHER - Call your local BRP dealership |
| 5B |
410300800 |
Battery Cap |
| 5C |
207161644 |
Hex. Screw M6 X 16 This part replaces 222061665. |
| 5D |
232061414 |
Hex. Nut M6 This part replaces 228061045. |
| 6 |
293800060 |
Loctite 243, 10 ml This part replaces 413703000. |
| 7 |
207181644 |
Hex. Screw M8 x 16 This part replaces 222081665. |
| 8 |
M39039 |
Tube |
| 9 |
M28012 |
HOUSING - Call your local BRP dealership |
| 10 |
605349434 |
BATTERY WIRE - Call your local BRP dealership This part replaces M549886. |
| 11 |
M549888 |
Steel Strip |
| 12 |
M40108 |
Screw M6 x 25 |
| 13 |
M42063 |
Tab Housing |
| 14 |
232551414 |
Elastic Stop Nut M5 This part replaces 228551045. |
| 15 |
234051410 |
Flat Washer M5 This part replaces 224051111. |
| 16 |
515163900 |
VOLTAGE REGULATOR - Call your local BRP dealership |
| 17 |
M544741 |
Plate |
| 18 |
207162044 |
Hex. Screw M6 X 20 This part replaces 222062065. |
| 19 |
M549889 |
Steel Strip |
| 20 |
M549887 |
Ground Wire |
| 21 |
M42673580 |
Protector Cap |
| 22 |
M40322 |
Screw |
| 24 |
414807500 |
Ring Gear (86 Theet) |
| 25 |
207182044 |
Hex. Screw M8 X 20 This part replaces 222082065. |
| 26 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 27 |
420951417 |
Starter Bracket |
| 28 |
205082044 |
Socket Head Screw M8 X 20 This part replaces 222982065. |
| 29 |
410212400 |
ELECTRIC STARTER ASSY - Call your local BRP dealership |
| 30 |
420951427 |
Starter Support (MAG) |
