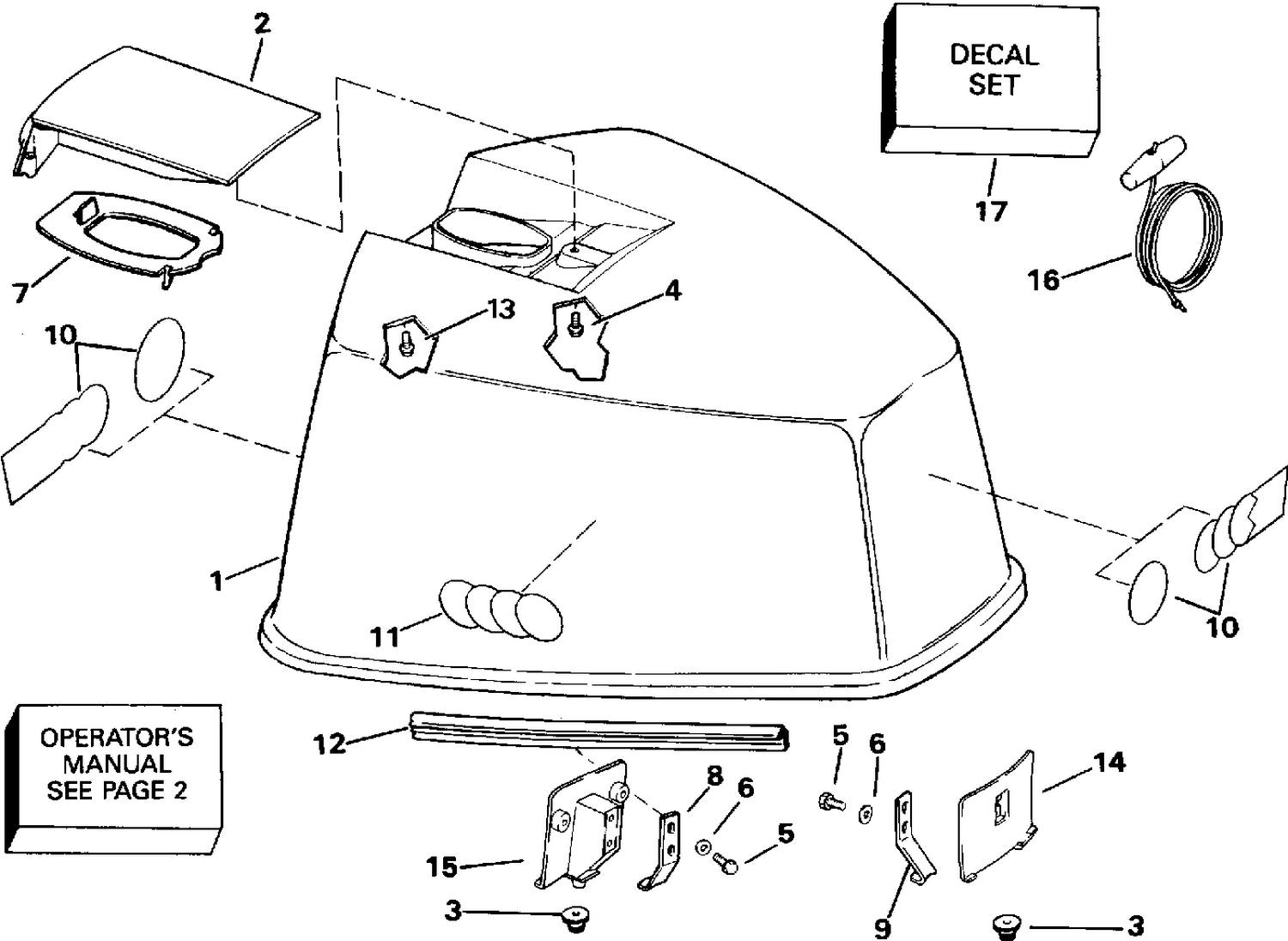

ENGINE COVER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0284108 | ENGINE COVER ASSY., Evinrude |
| 1 | 0434921 | ENGINE COVER ASSY., Johnson |
| 6 | 0306407 | LOCCKWASHER,Cover latch |
| 9 | 0323175 | HOOK , Motor Cover, Front |
| 10 | 0211023 | APPLIQUE Front |
| 10 | 0334008 | APPLIQUE, Engine cover, front |
| 11 | 0334007 | APPLIQUE, Sides |
| 12 | 0329548 | SEAL |
| 14 | 0336991 | BRACKET, Locating, front |
| 15 | 0336992 | BRACKET, Locating, rear |
| 16 | 0378347 | CORDE DE LANCEUR |
| 17 | 0435636 | DECAL SET, Johnson |
