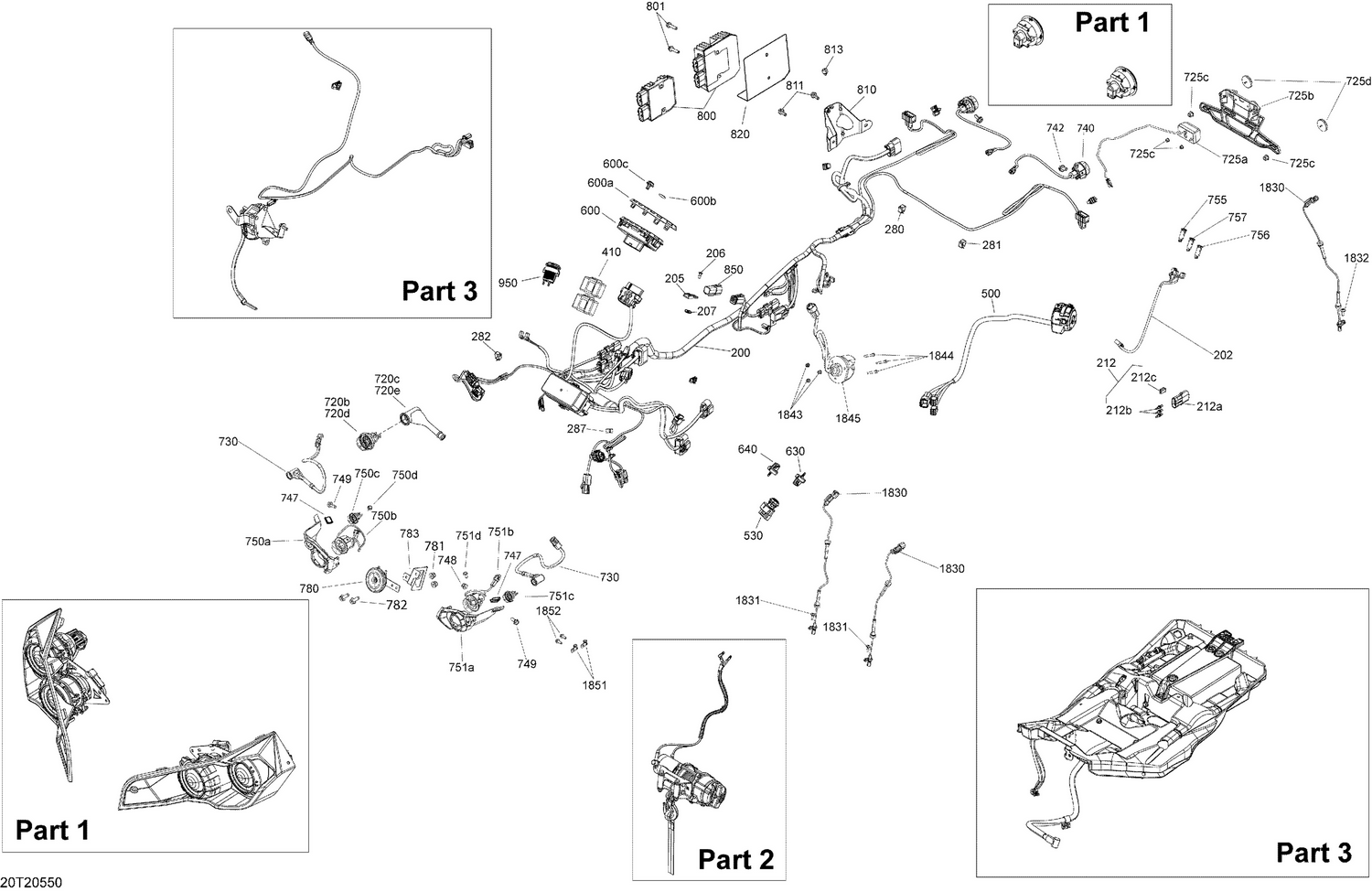

10- Electrical System - Main Section
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 200 | 710006713 | Main Wiring Harness |
| 202 | 710005840 | Indicator Light Cable |
| 205 | 270000141 | Clip |
| 206 | 390402300 | Pop Rivet 3/16" |
| 207 | 391301600 | Washer |
| 212a | 278000281 | Female Terminal Housing, 3 Circuits |
| 212b | 278000216 | Wire Seal |
| 212c | 710000992 | Clip |
| 280 | 414227300 | Clip |
| 281 | 414227300 | Clip |
| 282 | 414227300 | Clip |
| 287 | 414227300 | Clip |
| 410 | 710003239 | Flasher Unit |
| 500 | 710006211 | LH Multi Fonction Control |
| 530 | 710008400 | Ignition Switch This part replaces 710003847. |
| 600 | 710006216 | Speedometer |
| 600b | 704904615 | BRP Logo13 mm |
| 600c | 715900265 | Button |
| 630 | 710002183 | Grey, Electronic Key |
| 640 | 710000817 | Black, Electronic Key |
| 720c | 710003269 | Cap Protector |
| 720e | 710003269 | Cap Protector |
| 725a | 710005563 | License Plate Light |
| 725b | 708300553 | Plate Support |
| 725c | 233251434 | Flange Elastic Nut M5 |
| 725d | 705011221 | Red Reflector |
| 730 | 710005676 | Position Light Harness |
| 740 | 710002964 | Flasher |
| 742 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 747 | 414479100 | Clip |
| 748 | 233281414 | Hex. Flange Elastic Nut M8 |
| 749 | 207682044 | Hex. Flange Screw M8 X 20 |
| 750a | 710005900 | RH Flasher Support |
| 750b | 710002964 | Flasher |
| 750c | 710001726 | Day Light |
| 750d | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 751a | 710005899 | LH Flasher Support |
| 751b | 710002964 | Flasher |
| 751c | 710001726 | Day Light |
| 751d | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 755 | 710005766 | Pilot Light Trailer Flasher |
| 756 | 710005767 | Pilot Light Tail Lamp |
| 757 | 710003909 | Pilot Lamp |
| 780 | 710004791 | Horn |
| 781 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 782 | 207661644 | Hex. Flange Screw M6 X 16 |
| 783 | 710006112 | Horn Support |
| 800 | 710005842 | Voltage Regulator |
| 801 | 210262550 | Hex. Flange Forming Screw M6 X 25 |
| 810 | 710002587 | Rectifier Support |
| 811 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 813 | 293830005 | Rubber Bumper |
| 820 | 710006746 | Deflector |
| 850 | 710003006 | Housing |
| 950 | 710001248 | DC Outlet |
| 1830 | 710006981 | Speed Sensor |
| 1831 | 250000720 | Torx Screw K50 X 16 |
| 1832 | 250000721 | Torx Truss Screw M6 X 16 |
| 1843 | 233251434 | Flange Elastic Nut M5 |
| 1844 | 205053588 | Socket Head Screw M5 X 35 |
| 1845 | 710005846 | Trailer Harness |
| 1851 | 293650256 | Clamp |
