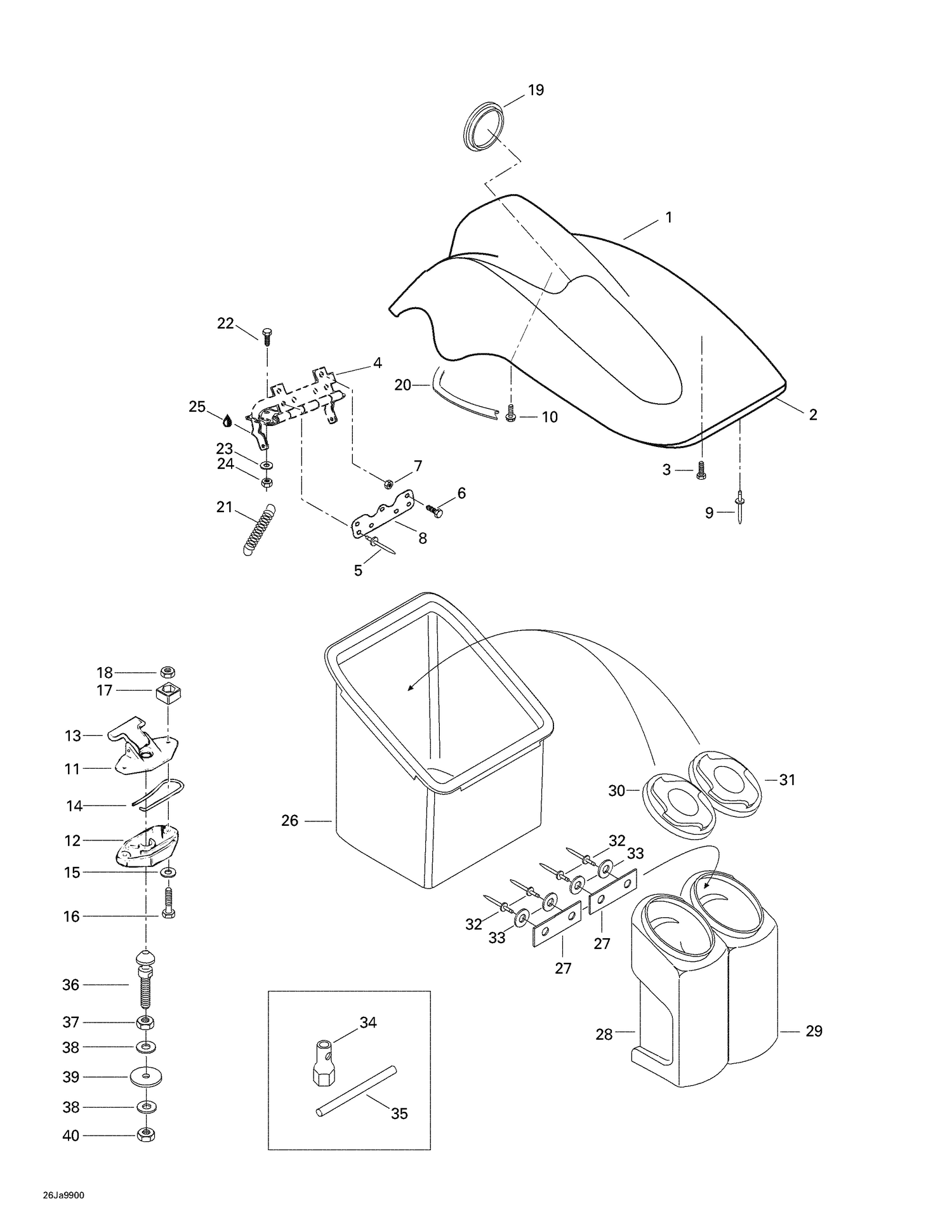

| Ref | Part Number | Description |
|---|
| 1 |
204620016 |
Upper Storage Cover |
| 2 |
204620017 |
Lower Storage Cover |
| 3 |
241140060 |
Screw K40 X 10 |
| 4 |
204620281 |
HINGE ASS'Y - Call your local BRP dealership This part replaces 204620036. |
| 5 |
293150039 |
Pop Rivet 3/16" |
| 6 |
207151260 |
HEX. SCREW M6 X 12 - Call your local BRP dealership |
| 7 |
232551600 |
Hex. Elastic Nut M5 |
| 8 |
269500107 |
Retainer Plate |
| 9 |
293150039 |
Pop Rivet 3/16" |
| 10 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 11 |
269700109 |
Latch Ass'y This part replaces 269700020. |
| 12 |
269700109 |
Latch Ass'y This part replaces 269000015. |
| 13 |
269700109 |
Latch Ass'y This part replaces 269000016. |
| 14 |
269700017 |
Latch Spring |
| 15 |
234061600 |
Stainless Flat Washer M6 |
| 16 |
207163560 |
Hex. Screw M6 X 35 |
| 18 |
232061600 |
Hex. Nut M6 |
| 19 |
204620033 |
Cap-Gauge |
| 20 |
219704368 |
Seal Tray 1000Mm Long |
| 21 |
204620018 |
HINGE SPRING - Call your local BRP dealership |
| 22 |
207151600 |
Hex. Screw M5 x 16 |
| 23 |
234051600 |
Flat Washer M5, Stainless |
| 24 |
232551600 |
Hex. Elastic Nut M5 |
| 25 |
293550010 |
Synthetic Grease, 400 G |
| 26 |
269501940 |
STORAGE TRAY - Call your local BRP dealership This part replaces 269500416. |
| 27 |
293250037 |
GASKET - Call your local BRP dealership |
| 28 |
269500606 |
EXTINGUISHER HOUSING - Call your local BRP dealership |
| 29 |
269500606 |
EXTINGUISHER HOUSING - Call your local BRP dealership This part replaces 269500605. |
| 30 |
269501939 |
EXTINGUISHER HOUSING CAP - Call your local BRP dealership This part replaces 269500603. |
| 31 |
269500604 |
Storage Cap |
| 32 |
293150032 |
RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 33 |
234032600 |
Flat Washer M3, Stainless |
| 34 |
204630050 |
Socket Wrench |
| 35 |
204630051 |
Steel Bar |
| 36 |
291000691 |
LATCH STUD - Call your local BRP dealership |
| 37 |
232100600 |
Hex. Jam Nut M10 |
| 38 |
234002600 |
Flat Washer 10 mm, Stainless |
| 39 |
291000628 |
RUBBER WASHER - Call your local BRP dealership |
