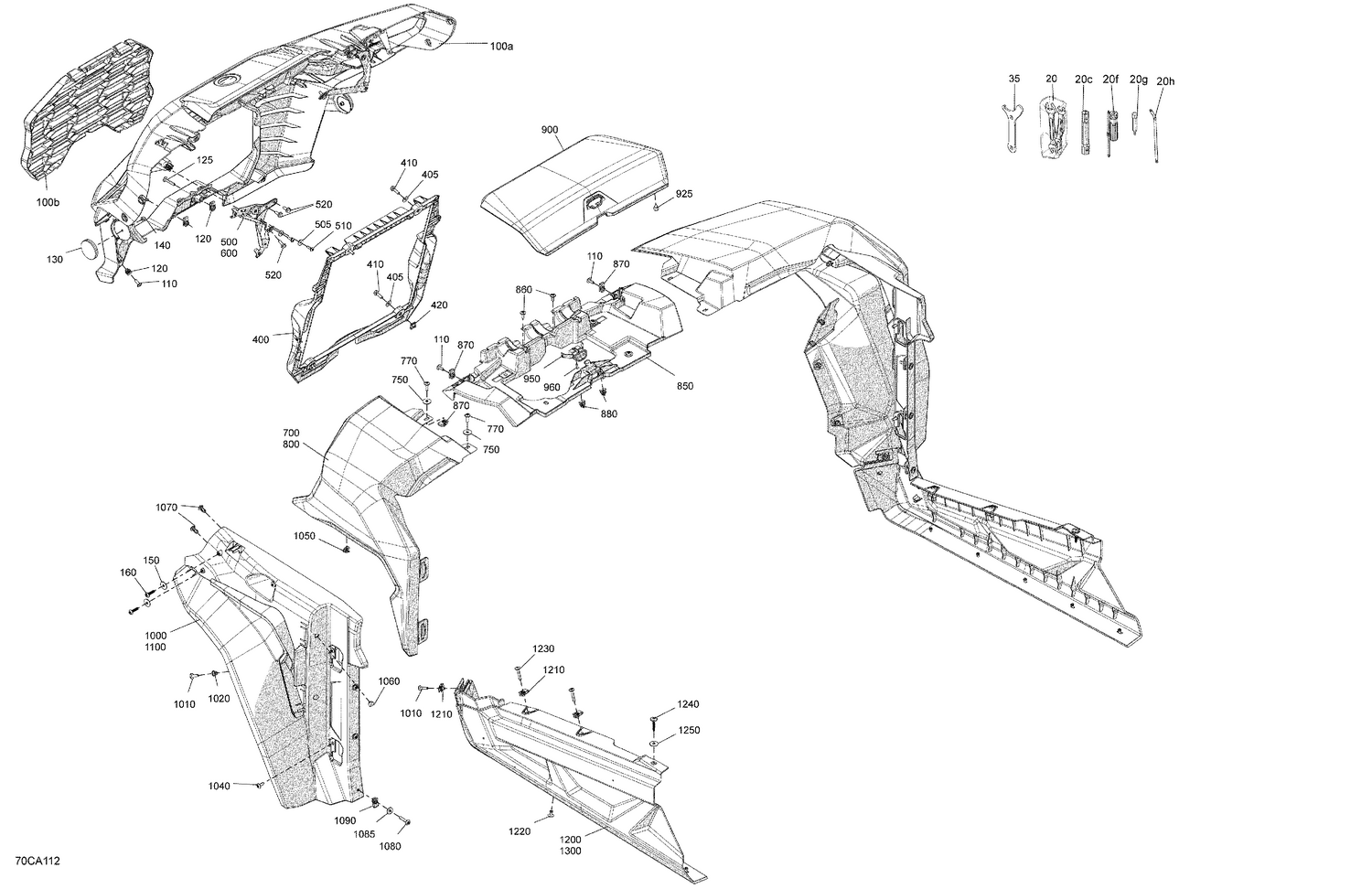

07- Body - Front Section
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 20c | 529000085 | Socket Wrench 14/16MM |
| 20f | 529000021 | Screw Driver |
| 20g | 529000088 | Driven Open Tool |
| 20h | 708200340 | Torx Key T30 |
| 35 | 529000057 | Adjustment Wrench |
| 100a | 705015069 | Front Fascia |
| 100b | 705015071 | Grille |
| 110 | 250000721 | Torx Truss Screw M6 X 16 |
| 120 | 250100198 | Panel Nut M6 X 1.0 |
| 125 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 130 | 705011222 | Amber Reflector |
| 140 | 233251494 | Elastic Flange Nut M5 |
| 150 | 250200162 | Flat Washer M6.6 X 22 |
| 160 | 250000980 | Hex. Screw Pt K60 X 25 |
| 400 | 705015160 | Front Radiator Deflector |
| 405 | 234062410 | Flat Washer 6 mm |
| 410 | 207662044 | Hex. Flange Screw M6 X 20 |
| 420 | 250001173 | Panel Nut M6 X 1.0 |
| 500 | 705015072 | LH Headlight Support |
| 505 | 250200162 | Flat Washer M6.6 X 22 |
| 510 | 250000720 | Torx Screw K50 X 16 |
| 520 | 207661644 | Hex. Flange Screw M6 X 16 |
| 600 | 705015073 | RH Headlight Support |
| 750 | 250200162 | Flat Washer M6.6 X 22 |
| 770 | 250000722 | Torx Screw M6 X 20 |
| 850 | 705015163 | Front Multi Purpose Support |
| 860 | 250000721 | Torx Truss Screw M6 X 16 |
| 870 | 250100198 | Panel Nut M6 X 1.0 |
| 880 | 517306478 | Clip |
| 900 | 705015062 | Hood |
| 925 | 293830005 | Rubber Bumper |
| 950 | 264000133 | Glove Box Latch |
| 960 | 250001119 | Screw K40 X 10 |
| 1000 | 705015060 | LH Front Mud Guard |
| 1010 | 250000712 | Torx Screw M6 X 20 |
| 1020 | 233261494 | Hex. Flange Elastic Nut M6 |
| 1040 | 250000721 | Torx Truss Screw M6 X 16 |
| 1050 | 517306478 | Clip |
| 1060 | 293730060 | Black, Dart 10 mm |
| 1070 | 293150230 | Tuflok Plastic Rivet |
| 1080 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 1085 | 234062670 | Stainless Steel Flat Washer |
| 1090 | 250100198 | Panel Nut M6 X 1.0 |
| 1100 | 705015061 | RH Front Mud Guard |
| 1200 | 705011331 | LH Rocker Panel |
| 1210 | 250100198 | Panel Nut M6 X 1.0 |
| 1220 | 293150101 | Pop Rivet 3/16” This part replaces 293150101. |
| 1230 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 1240 | 250000840 | Torx Truss Screw Head PT.K50 X 40 |
| 1250 | 250200162 | Flat Washer M6.6 X 22 |
