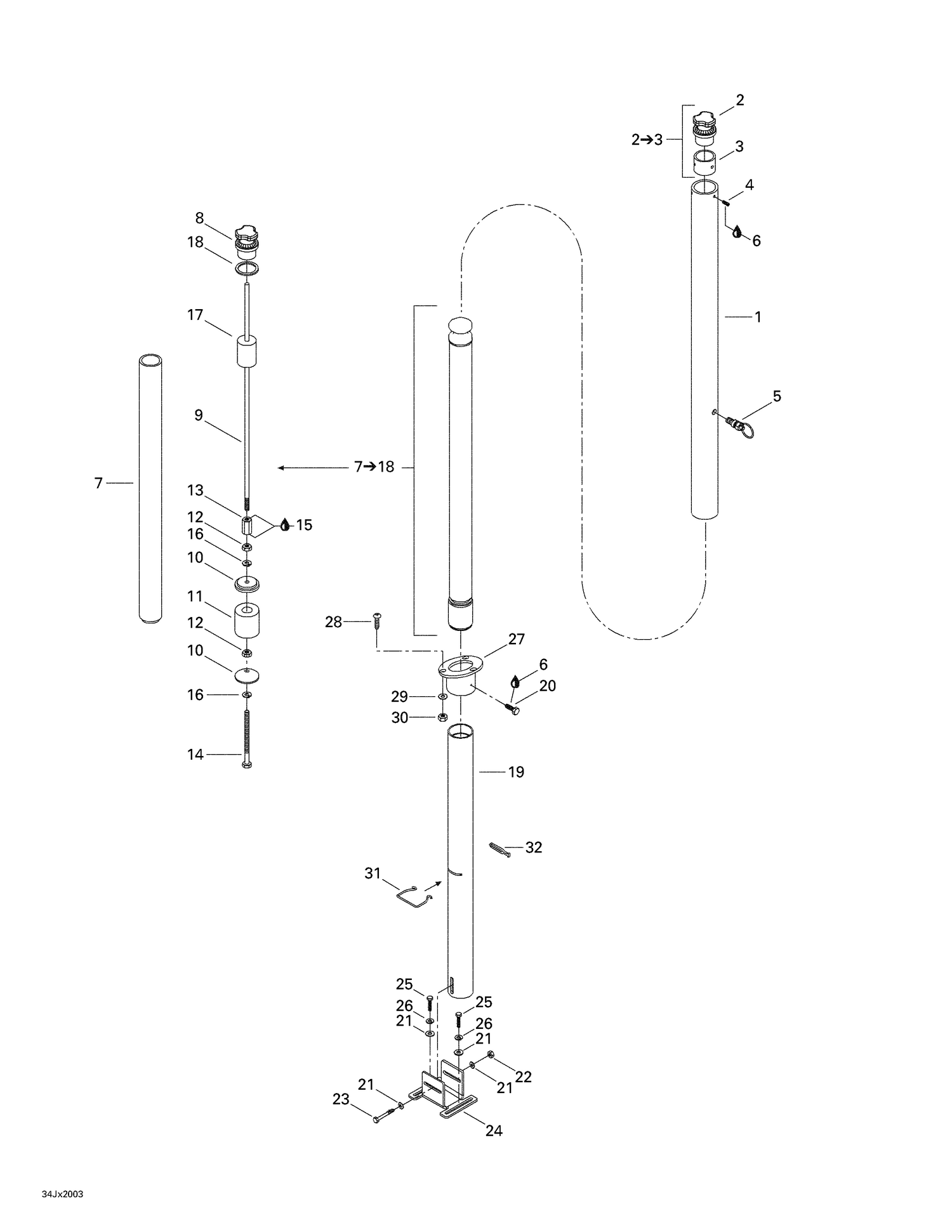

09- Body And Accessories 2
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204070334 | Post |
| 2 | 204070335 | Ski Cap |
| 3 | 204070336 | Sleeve |
| 4 | 206561560 | Socket Head Set Screw M6 x 15 |
| 5 | 204070412 | Retractable Spring Pin |
| 6 | 293800005 | Loctite 271, 10 ml |
| 7 | 204070338 | INNER POST - Call your local BRP dealership |
| 8 | 204070440 | Ski Cap |
| 9 | 204070340 | Threaded Rod |
| 10 | 204070341 | Compression Disk |
| 11 | 204070376 | Compression Boot |
| 12 | 232061600 | Hex. Nut M6 |
| 13 | 204070414 | Hex. Coupling Nut M6 X 18 |
| 14 | 207169060 | Hex. Screw M6 X 90 |
| 15 | 293800005 | Loctite 271, 10 ml |
| 16 | 234461608 | External Serrated Lock Washer 6 mm |
| 17 | 204070419 | Rod Holder |
| 18 | 204070420 | Sliding Ring |
| 19 | 204070448 | Outer Post Ass'y |
| 20 | 207141660 | Hex. Screw M4 X 16 |
| 21 | 234082600 | Flat Washer 8 mm, Stainless |
| 22 | 232581600 | Hex. Elastic Nut M8 |
| 23 | 207089060 | HEX. SCREW M8 X 90 - Call your local BRP dealership |
| 24 | 204070345 | Post Base |
| 25 | 207183060 | Hex. Screw M8 X 30 |
| 26 | 234181601 | Lock Washer 8 mm, Stainless |
| 27 | 204070344 | Collar Ass'y |
| 28 | 208563060 | OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership |
| 29 | 234062600 | Flat Washer M6, Stainless |
| 30 | 232561600 | Hex. Elastic Stop Nut M6 |
| 31 | 204070449 | Ski Pole Lock |
