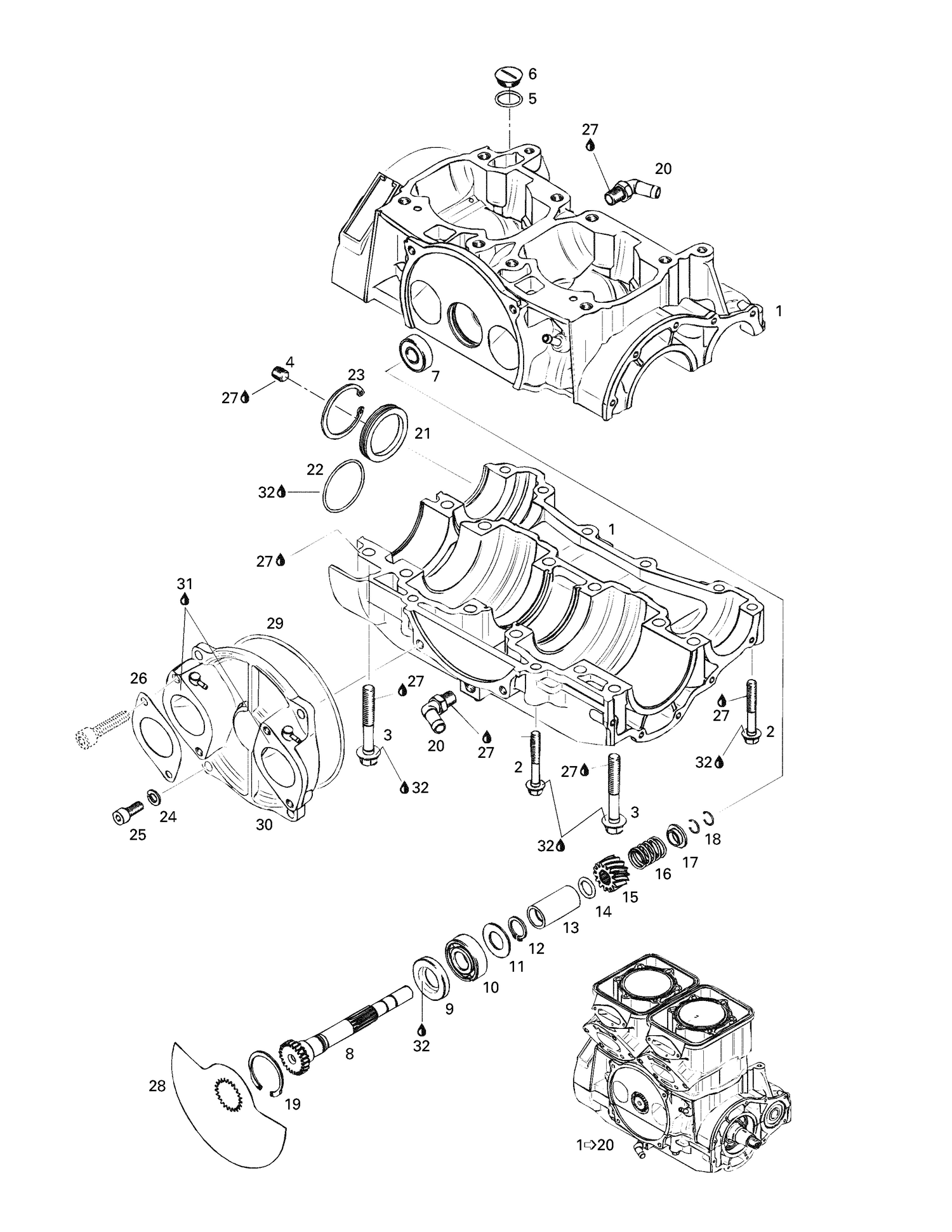

| Ref | Part Number | Description |
|---|
| 2 |
290240328 |
Hex. Flange Screw M8 x 55 |
| 3 |
290941333 |
Flange Screw M10 x 73,5 |
| 4 |
290240483 |
Drain Plug 1/8" |
| 5 |
420250890 |
O-Ring This part replaces 290250890. |
| 6 |
420241801 |
Drain Plug This part replaces 290241801. |
| 7 |
420932797 |
Ball Bearing This part replaces 290932797. |
| 8 |
290837351 |
Rotary Valve Shaft |
| 9 |
290930580 |
OIL SEAL - Call your local BRP dealership |
| 10 |
293350051 |
BALL BEARING - Call your local BRP dealership This part replaces 290932032. |
| 11 |
290227439 |
Shim |
| 12 |
420845450 |
SNAP RING - Call your local BRP dealership This part replaces 290845450. |
| 13 |
290847287 |
Distance Sleeve |
| 14 |
293300024 |
O-Ring |
| 15 |
420935736 |
Sprocket 14Th This part replaces 290935735. |
| 16 |
290938810 |
Spring |
| 17 |
290827430 |
Spring Seat |
| 18 |
290845160 |
Circlip |
| 19 |
420945880 |
Lock Ring This part replaces 290845260. |
| 20 |
420922242 |
Angular Tube This part replaces 290922245. |
| 21 |
420810745 |
BEARING COVER - Call your local BRP dealership This part replaces 290810740. |
| 22 |
290230300 |
O-Ring |
| 23 |
420810745 |
BEARING COVER - Call your local BRP dealership This part replaces 290945823. |
| 24 |
234180602 |
Lock Spring Washer 8 mm, Stainless This part replaces 217383600. |
| 25 |
290240073 |
Cylinder Screw M8 x 20 |
| 26 |
293250134 |
Gasket This part replaces 293250070. |
| 28 |
420924502 |
ROTARY VALVE, 159 - Call your local BRP dealership This part replaces 290924502. |
| 29 |
290831765 |
O-Ring |
| 30 |
290811241 |
Cover Rotary Valve |
| 32 |
413707000 |
Dow Corning 111, 150 g |
