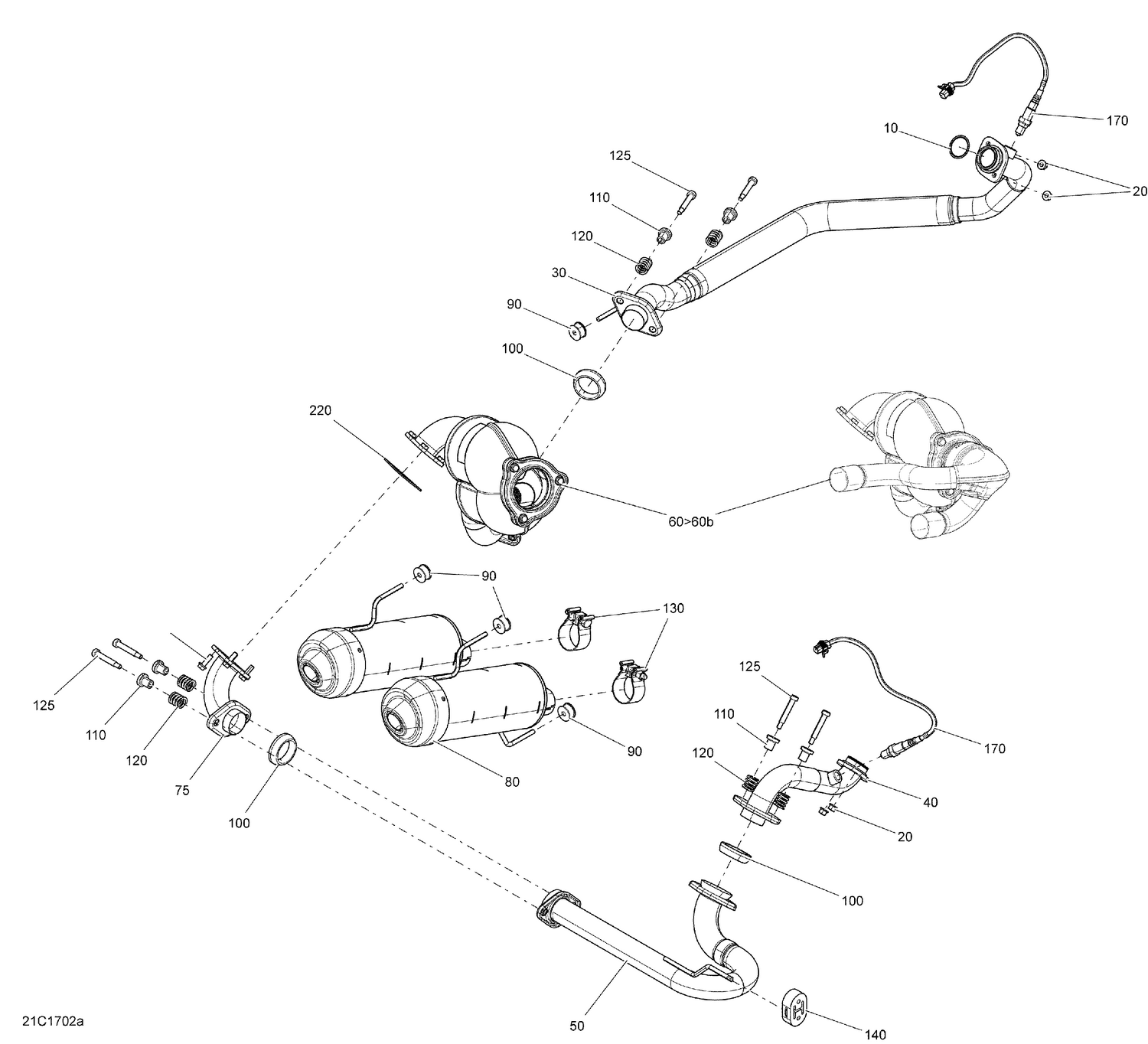

01- Exhaust System - 1000R EFI
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 707600317 | Gasket |
| 20 | 233081416 | Hex. Flange Nut M8 |
| 30 | 707601210 | FRONT HEAD PIPE - Call your local BRP dealership |
| 40 | 707601213 | REAR HEAD PIPE - Call your local BRP dealership |
| 50 | 707601214 | PIPE_EXHAUST IN WELD - Call your local BRP dealership |
| 60a | 707601281 | PIPE - Call your local BRP dealership |
| 60b | 707601278 | PIPE_EXHAUST OUT WELD - Call your local BRP dealership |
| 75 | 707601232 | PIPE_EXHAUST IN WELD - Call your local BRP dealership |
| 80 | 707601038 | Muffler |
| 90 | 707600702 | Anti-Vibration Rubber |
| 100 | 707601128 | Seal |
| 110 | 707601254 | Bushing |
| 120 | 707600682 | Spring |
| 125 | 250000658 | Socket Head Screw M10 X 50 |
| 130 | 293650231 | Gear Clamp |
| 140 | 707600638 | Rubber Bumper |
| 170 | 707600872 | Oxygen Sensor |
