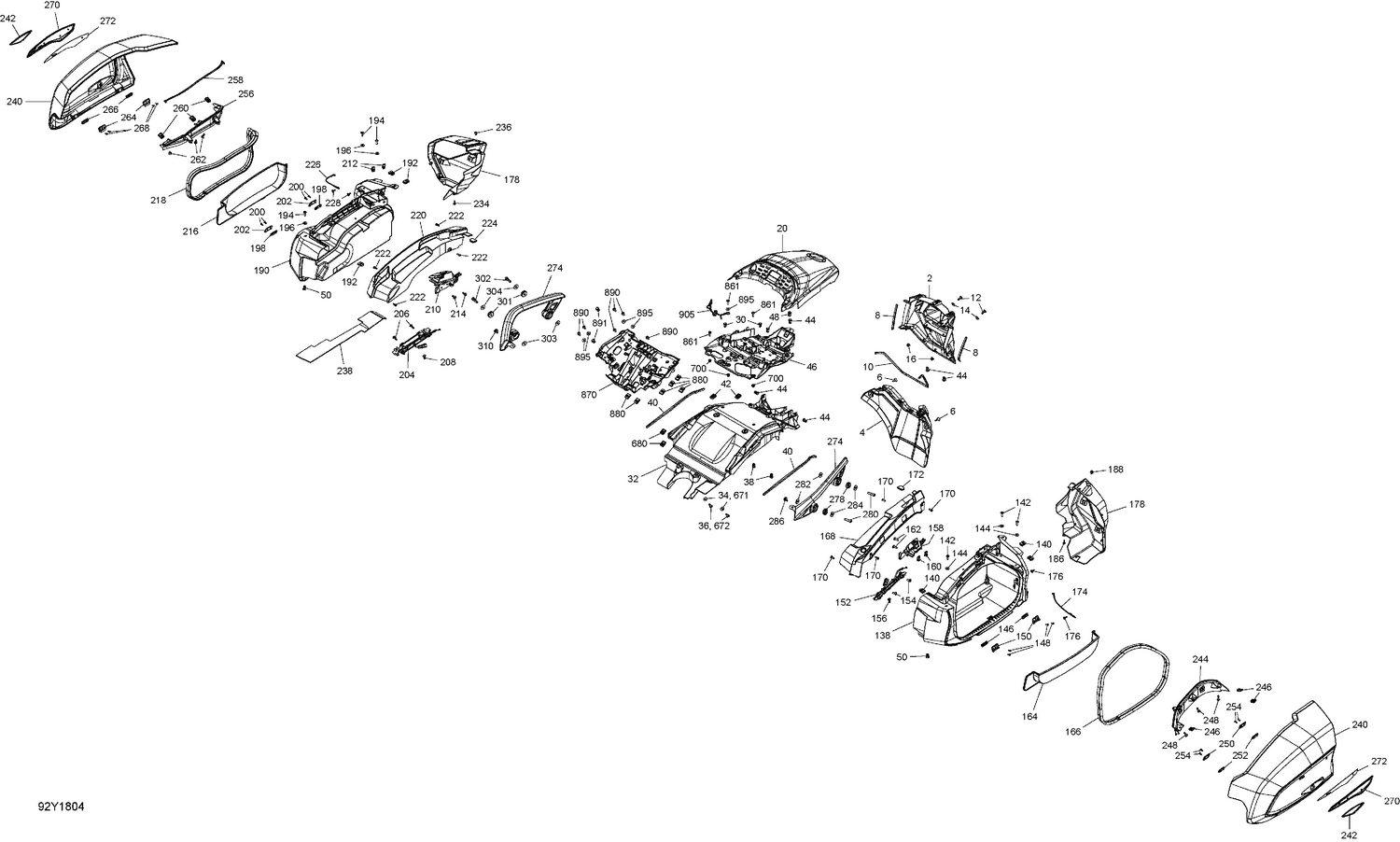

09- Cargo
Parts (105)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 708301584 | Rear Fender |
| 4 | 708301747 | Rear Fender Extention |
| 6 | 414745900 | Tuflock Phillips Plastic Screw |
| 8 | 293250385 | Neoprene Seal, 150 MM |
| 10 | 219704373 | Seal 1000Mm Long |
| 20 | 708001786 | Steel black Tail Fairing |
| 28 | 517302785 | Edge Clip |
| 30 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 32 | 708301609 | Under Tail |
| 34 | 234062670 | Stainless Steel Flat Washer |
| 36 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 38 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 40 | 293250385 | Neoprene Seal, 150 MM |
| 42 | 250100208 | Panel Nut M6 X 1.0 This part replaces 250100169. |
| 44 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 46 | 708302571 | Electronic Component Support This part replaces 708302143. |
| 48 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 50 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 138 | 708302404 | LH Cargo |
| 140 | 250100208 | Panel Nut M6 X 1.0 This part replaces 250100169. |
| 142 | 250000722 | Torx Screw M6 X 20 |
| 144 | 250200164 | Flat washer M6 |
| 146 | 708302046 | Retaining Plate |
| 148 | 250000577 | Torx Truss Screw K40 X 12 |
| 150 | 708302045 | Male Hinge |
| 152 | 708301794 | LH Latch Assembly |
| 154 | 250000722 | Torx Screw M6 X 20 |
| 156 | 710002033 | Connector Holder |
| 158 | 708301222 | LH Control |
| 160 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 162 | 250000722 | Torx Screw M6 X 20 |
| 164 | 708301719 | Cargo Separator LH |
| 166 | 293250420 | Molded Weather Strip |
| 168 | 708302401 | LH Cargo Fairing |
| 170 | 250000720 | Torx Screw K50 X 16 |
| 174 | 708300385 | Retainer Cable |
| 176 | 250000725 | Screw M4 X 16 |
| 178 | 708302283 | LH Light Support |
| 178 | 708302285 | RH Light Support |
| 180 | 708302284 | Brace |
| 182 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 184 | 250000722 | Torx Screw M6 X 20 |
| 186 | 250000720 | Torx Screw K50 X 16 |
| 188 | 293830005 | Rubber Bumper |
| 190 | 708302405 | RH Cargo |
| 192 | 250100208 | Panel Nut M6 X 1.0 This part replaces 250100169. |
| 194 | 250000722 | Torx Screw M6 X 20 |
| 196 | 250200164 | Flat washer M6 |
| 198 | 708302046 | Retaining Plate |
| 200 | 250000577 | Torx Truss Screw K40 X 12 |
| 202 | 708302045 | Male Hinge |
| 204 | 708301795 | RH Latch Assembly |
| 206 | 250000722 | Torx Screw M6 X 20 |
| 208 | 710002033 | Connector Holder |
| 210 | 708301697 | RH Control |
| 212 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 214 | 250000722 | Torx Screw M6 X 20 |
| 216 | 708301862 | Cargo Separator RH |
| 218 | 293250420 | Molded Weather Strip |
| 220 | 708302402 | RH Cargo Fairing |
| 222 | 250000720 | Torx Screw K50 X 16 |
| 224 | 708301805 | Antena Cap |
| 226 | 708300385 | Retainer Cable |
| 228 | 250000725 | Screw M4 X 16 |
| 230 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 232 | 250000722 | Torx Screw M6 X 20 |
| 234 | 250000720 | Torx Screw K50 X 16 |
| 236 | 293830005 | Rubber Bumper |
| 238 | 705009908 | Heat Shield |
| 244 | 708301663 | LH Inner Cover |
| 246 | 250100208 | Panel Nut M6 X 1.0 This part replaces 250100169. |
| 248 | 250000722 | Torx Screw M6 X 20 |
| 250 | 708302044 | Female Hinge |
| 252 | 708302046 | Retaining Plate |
| 254 | 250000577 | Torx Truss Screw K40 X 12 |
| 256 | 708301664 | RH Inner Cover This part replaces 708301664. |
| 258 | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 260 | 250100208 | Panel Nut M6 X 1.0 This part replaces 250100169. |
| 262 | 250000722 | Torx Screw M6 X 20 |
| 264 | 708302044 | Female Hinge |
| 266 | 708302046 | Retaining Plate |
| 268 | 250000577 | Torx Truss Screw K40 X 12 |
| 272 | 704905469 | Trim Box Double Face Tape |
| 274 | 708003456 | LH Rear Holding Handle This part replaces 708001413. |
| 278 | 708302461 | Bushing |
| 280 | 250000823 | Socket Head Screw M8 X 30, Scotch Grip |
| 282 | 234082410 | Flat Washer 8 mm |
| 284 | 234081670 | Stainless Steel Flat Washer 8 mm |
| 286 | 414745900 | Tuflock Phillips Plastic Screw |
| 300 | 708003457 | RH Rear Holding Handle This part replaces 708001414. |
| 301 | 708302461 | Bushing |
| 302 | 250000823 | Socket Head Screw M8 X 30, Scotch Grip |
| 303 | 234082410 | Flat Washer 8 mm |
| 304 | 234081670 | Stainless Steel Flat Washer 8 mm |
| 310 | 414745900 | Tuflock Phillips Plastic Screw |
| 671 | 234062670 | Stainless Steel Flat Washer |
| 672 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 680 | 250100208 | Panel Nut M6 X 1.0 This part replaces 250100169. |
| 700 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 861 | 250000722 | Torx Screw M6 X 20 |
| 870 | 708301698 | Cargo Rear Support |
| 880 | 250100208 | Panel Nut M6 X 1.0 This part replaces 250100169. |
| 890 | 250000717 | Torx Head Screw M6 X 16 |
| 891 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 895 | 250200164 | Flat washer M6 |
