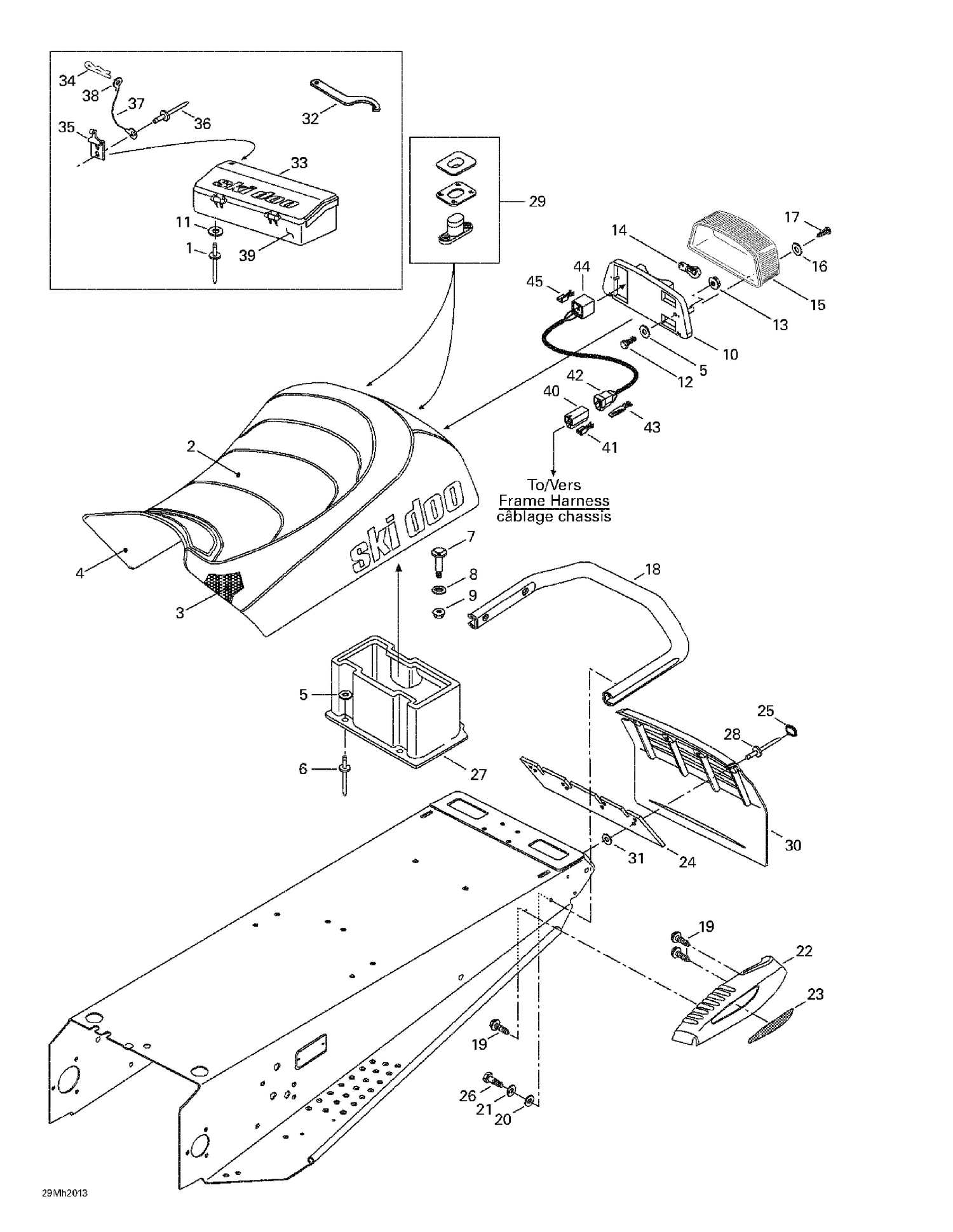

09- Seat And Accessories
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 2 | 510003715 | Seat Cover (1 pass.) |
| 3 | 415046302 | Foam Seat |
| 4 | 572088200 | Sub-Seat |
| 5 | 517297900 | WASHER - Call your local BRP dealership |
| 6 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 8 | 732610072 | Push Nut |
| 9 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 10 | 510004061 | LIGHT HOUSING - Call your local BRP dealership This part replaces 414513600. |
| 11 | 517124300 | Washer |
| 12 | 207053044 | Hex. Screw M5 X 30 |
| 13 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 14 | 520000758 | Bulb This part replaces 410504000. |
| 15 | 414513700 | Lens |
| 16 | 414516400 | Washer - Call your local BRP dealership |
| 17 | 209632540 | Phillips Tapping Screw M3.9 X 25 |
| 18 | 518314000 | REAR BUMPER - Call your local BRP dealership |
| 19 | 365901100 | HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 20 | 234081410 | Flat Washer 8 mm |
| 21 | 234181401 | Lock Washer 8 mm |
| 22 | 572092200 | RH Moulding |
| 23 | 516000237 | RH Reflector, Red |
| 24 | 572108200 | REINFORCEMENT - Call your local BRP dealership |
| 25 | 415073300 | Cap |
| 26 | 207182044 | Hex. Screw M8 X 20 |
| 27 | 572106300 | Rear Trunk, Se-Air |
| 28 | 293150100 | Pop Rivet 3/16" This part replaces 390908000. |
| 29 | 414728000 | SEAT BUCKLE - Call your local BRP dealership |
| 31 | 517225900 | Flat Washer |
| 32 | 529000035 | Adjustment Wrench This part replaces 529032900. |
| 34 | 414112400 | HAIR PIN - Call your local BRP dealership |
| 35 | 517168500 | Latch |
| 36 | Not | Available As Spare Part - Rivet |
| 37 | 414407400 | Wire |
| 38 | 561502800 | Terminal Ring |
| 39 | 529035592 | Tool Kit (Not Shown) |
| 40 | 409204300 | Female Housing |
| 41 | 561503100 | FEMALE TERMINAL - Call your local BRP dealership This part replaces 409205300. |
| 42 | 409204200 | FEMALE HOUSING - Call your local BRP dealership |
| 43 | 409210000 | MALE TERMINAL - Call your local BRP dealership |
| 44 | 515175250 | Female Terminal Housing, 3 Circuits |
| 516000238 | LH | Reflector, Red 516000238 |
| 516000238 | Réflecteur | GA, Rouge 516000238 |
| 572092300 | Enjoliveur | GA 572092300 |
| 572092300 | LH | Moulding 572092300 |
