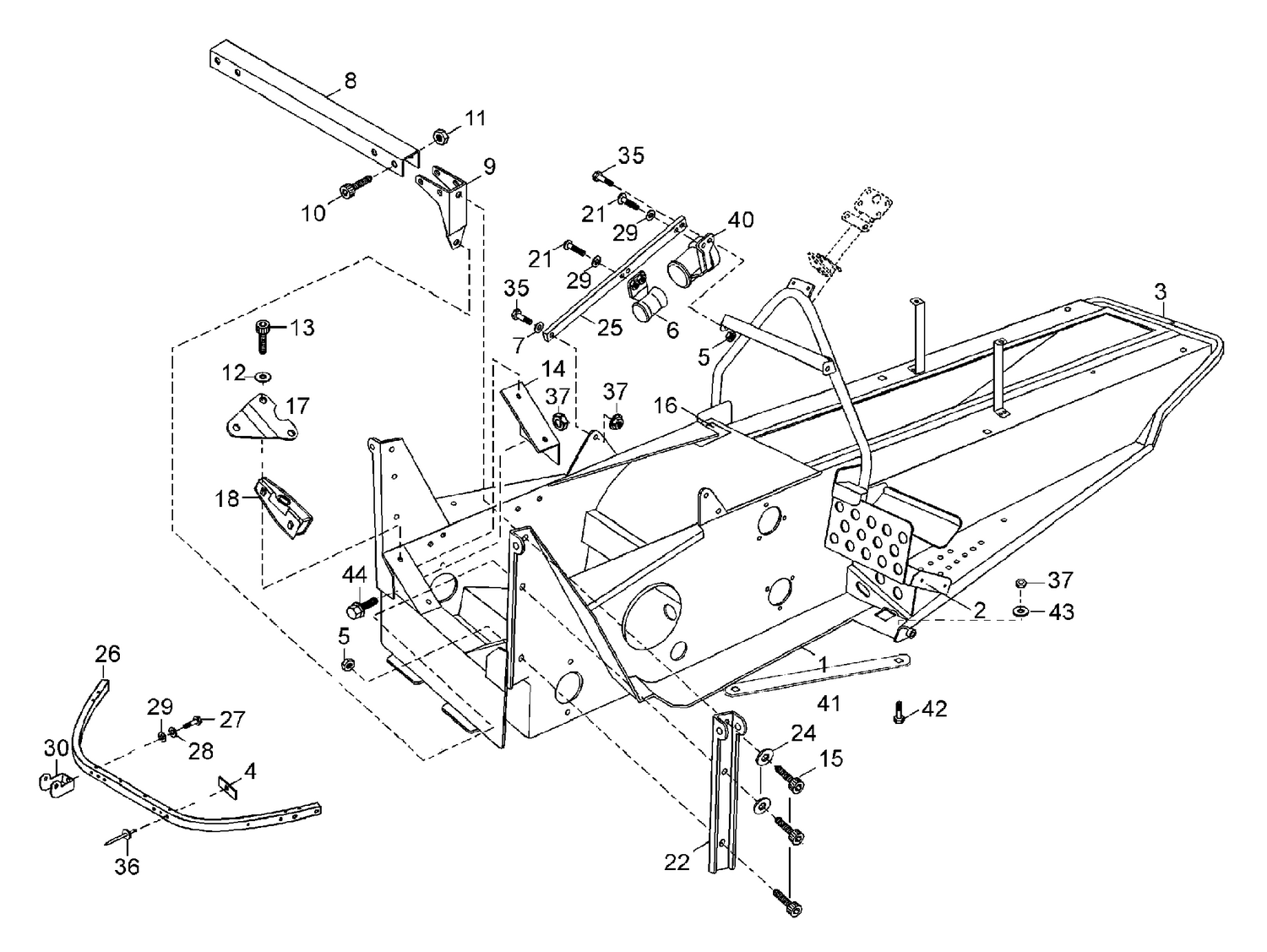

| Ref | Part Number | Description |
|---|
| 1 |
5144980 |
Chassis unpainted |
| 2 |
5243018 |
L.H. Front footrest |
| 2 |
5243019 |
R.H. Front footrest |
| 3 |
5243825 |
Rear Bumber |
| 5 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 6 |
5443756 |
Rope Guide |
| 7 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 8 |
5341940 |
Support tube |
| 9 |
5441938 |
Support weld. |
| 10 |
40286 |
Allen sc. M8 X 45 DIN912m8.8Zn(1=10pcs) - Call your local BRP dealership |
| 11 |
33029 |
Lock nut |
| 12 |
20072 |
Lock washer |
| 13 |
40305 |
Allen screw M8x20 |
| 14 |
5343067 |
Support |
| 15 |
40305 |
Allen screw M8x20 |
| 16 |
5442096 |
Cover Tape |
| 17 |
5344213 |
Support tunepipe |
| 18 |
5443069 |
Support weld. |
| 21 |
40155 |
Screw M6x20 |
| 22 |
5343050 |
Bracket |
| 24 |
Not |
Available As Spare Part - Screw M10x45 - DOES NOT APPLY TO THIS MODEL |
| 25 |
5443066 |
Support |
| 26 |
5344269 |
Hinge bumber |
| 27 |
40029 |
Screw M6x16 |
| 28 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 29 |
20052 |
Spring washer |
| 30 |
5444295 |
Hinge support weld. |
| 32 |
40078 |
SCREW M6 x 22 DIN933m8.8Zne(1=10pcs - Call your local BRP dealership |
| 33 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 34 |
20003 |
Washer |
| 35 |
40037 |
Screw M8x25 |
| 36 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 37 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 40 |
5443999 |
Rope Guide |
| 41 |
5345770 |
Pulling sheet |
| 42 |
40312 |
Locking screw |
| 43 |
20005 |
WASHER M10 - Call your local BRP dealership |
