| Ref | Part Number | Description |
|---|
| 4 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 5 |
0303739 |
PIVOT PIN |
| 6 |
0328907 |
COLLIER, amorçage vers support This part replaces 0303740. |
| 12 |
0306831 |
BATTERY CABLE ASSY. |
| 14 |
0310302 |
SCREW PUMP ASSY |
| 16 |
0315322 |
LINK |
| 18 |
0333440 |
CLAMP, Battery cable This part replaces 0317755. |
| 20 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 22 |
0322176 |
PUCH KNOB, Key |
| 23 |
0392569 |
CHOKE SOLENOID This part replaces 0582363. |
| 24 |
0327732 |
SPRING, Plunger This part replaces 0324085. |
| 25 |
0324092 |
PLUNGER, Solenoid |
| 26 |
0327712 |
LINK, Choke This part replaces 0324093. |
| 27 |
0325092 |
GASKET |
| 29 |
0382778 |
PIN, Solenoid |
| 30 |
0388278 |
FLOAT CHAMBER |
| 39 |
0323272 |
DASH 1 |
| 40 |
0391033 |
IGNITION SWITCH & KEY ASSY |
| 41 |
KEY |
Ref: 42 0520421 GROMMET 0520421 |
| 43 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 0173731 |
0173731 |

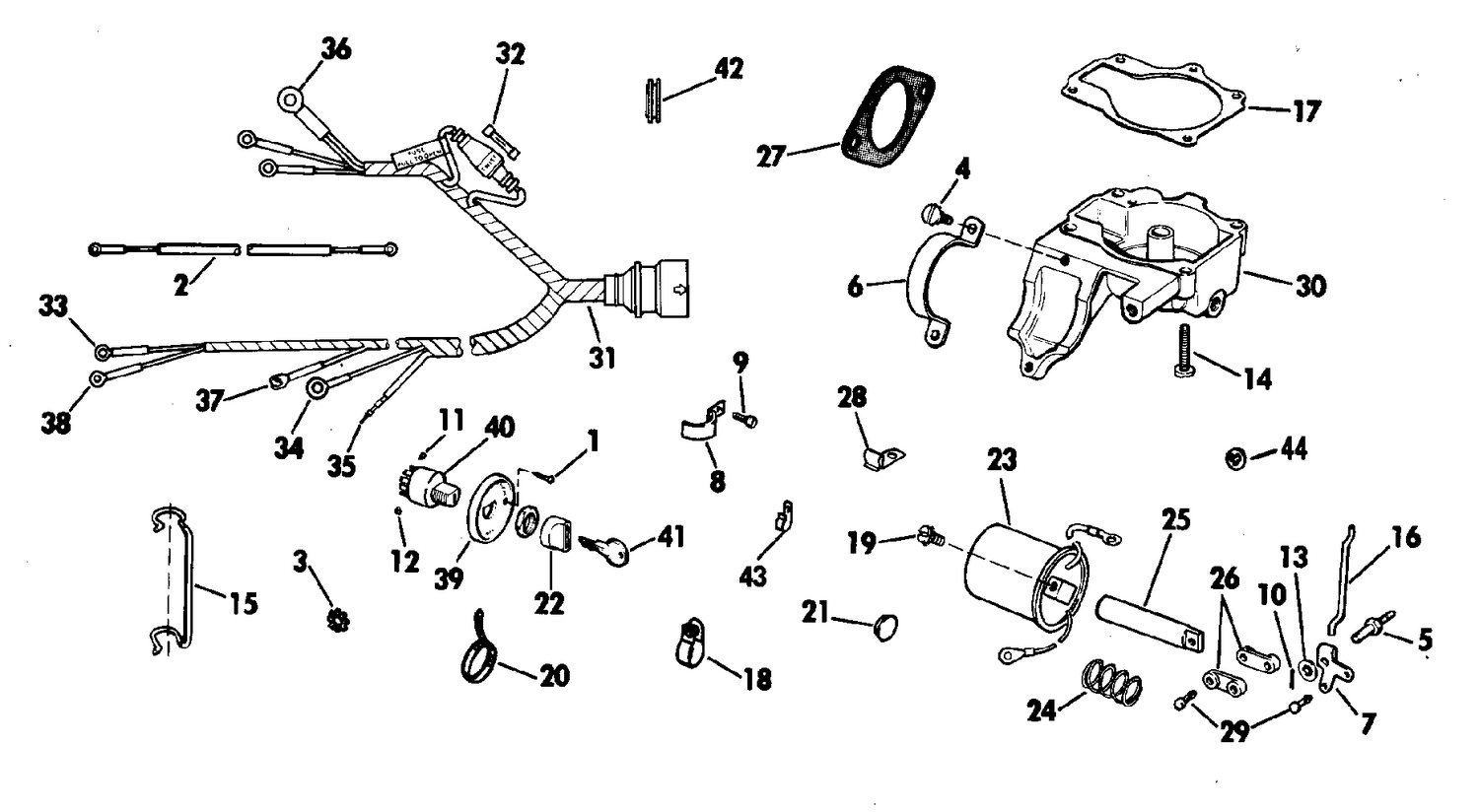

REMOTE ELECTRIC START KIT |
