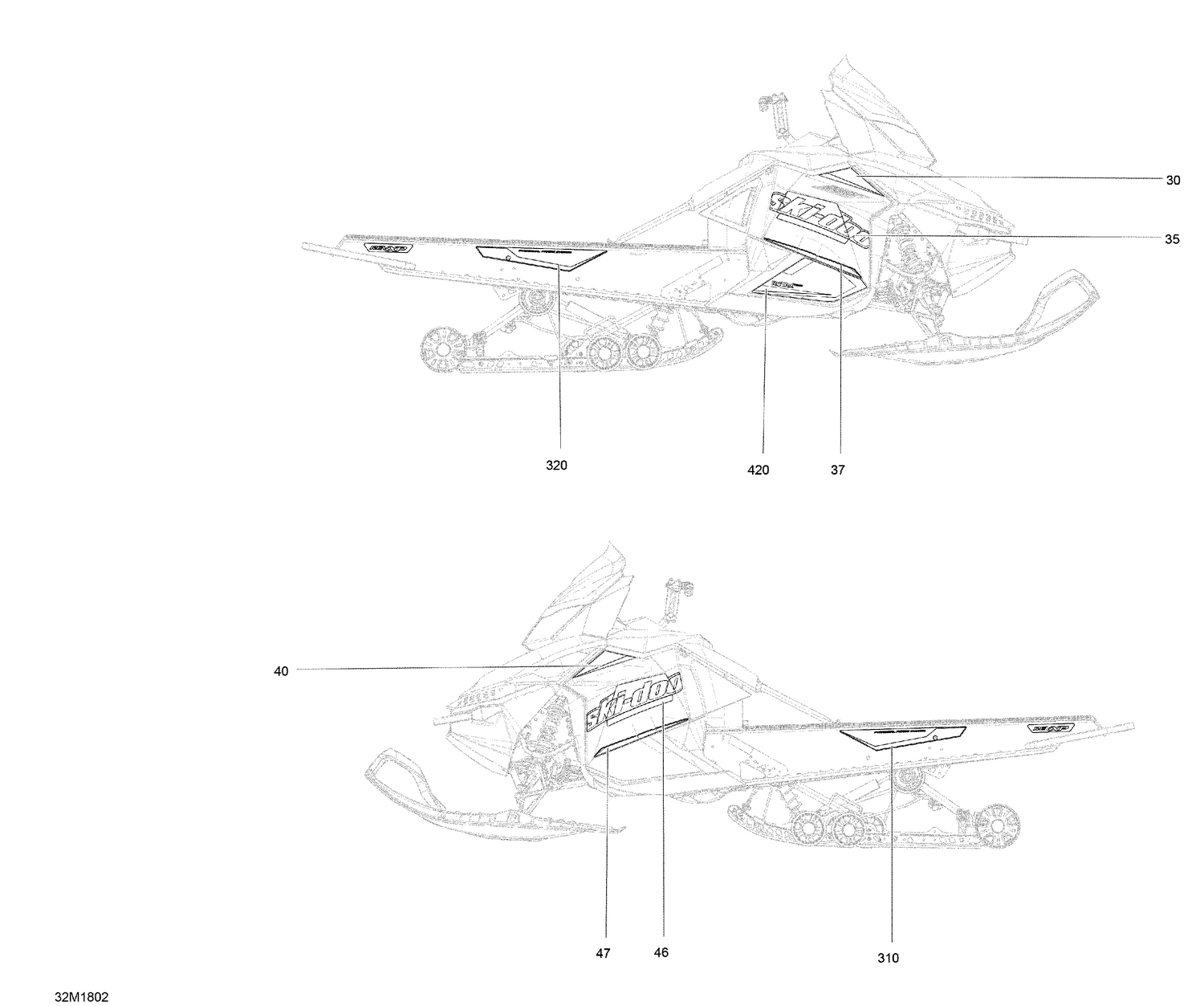

09- Decals MXZ - 600 Carb

09- Decals MXZ - 600 Carb

Parts (21)

RefPart NumberDescription
15 516008739 BRP Logo 68mm This part replaces 516006888.
20 516005991 Hood Decal Black/Grey/Silver "600"
30 516006513 RH Upper Side Decal, Black/Yellow
35 516005308 RH Side Decal "SKI-DOO" Black
37 516006517 RH Lower Side Decal, Black/Yellow
40 516006512 LH Upper Side Decal, Black/Yellow
45 516005307 LH Side Decal, SKI-DOO Black
46 516005129 LH Side Decal "MXZ" Black/White Letters
47 516006516 LH Lower Side Decal,Yellow/Black Contour
200 516005227 Warning Decal, Security
205 516005228 Warning Decal, Security
300 516007464 RH Tunnel Decal "Pyramidal Frame System"
310 516007463 LH Tunnel Decal "Pyramidal Frame System"
320 516006522 Decal, REV XP (Grey REV/Yellow XP)
420 516006519 Black/Yellow, RH Lower Decal ROTAX POWER
430 516006518 Black/Yellow, LH Lower Decal ROTAX POWER
460 516005280 Caution Decal Hot Parts
600 516006117 WARNING DECAL, TRACK - Call your local BRP dealership
610 516006525 RH Cover Decal, Black/Yellow
620 516006524 LH Cover Decal, Black/Yellow
640 516006964 RH Top Frame Decal Black "LinQ"
