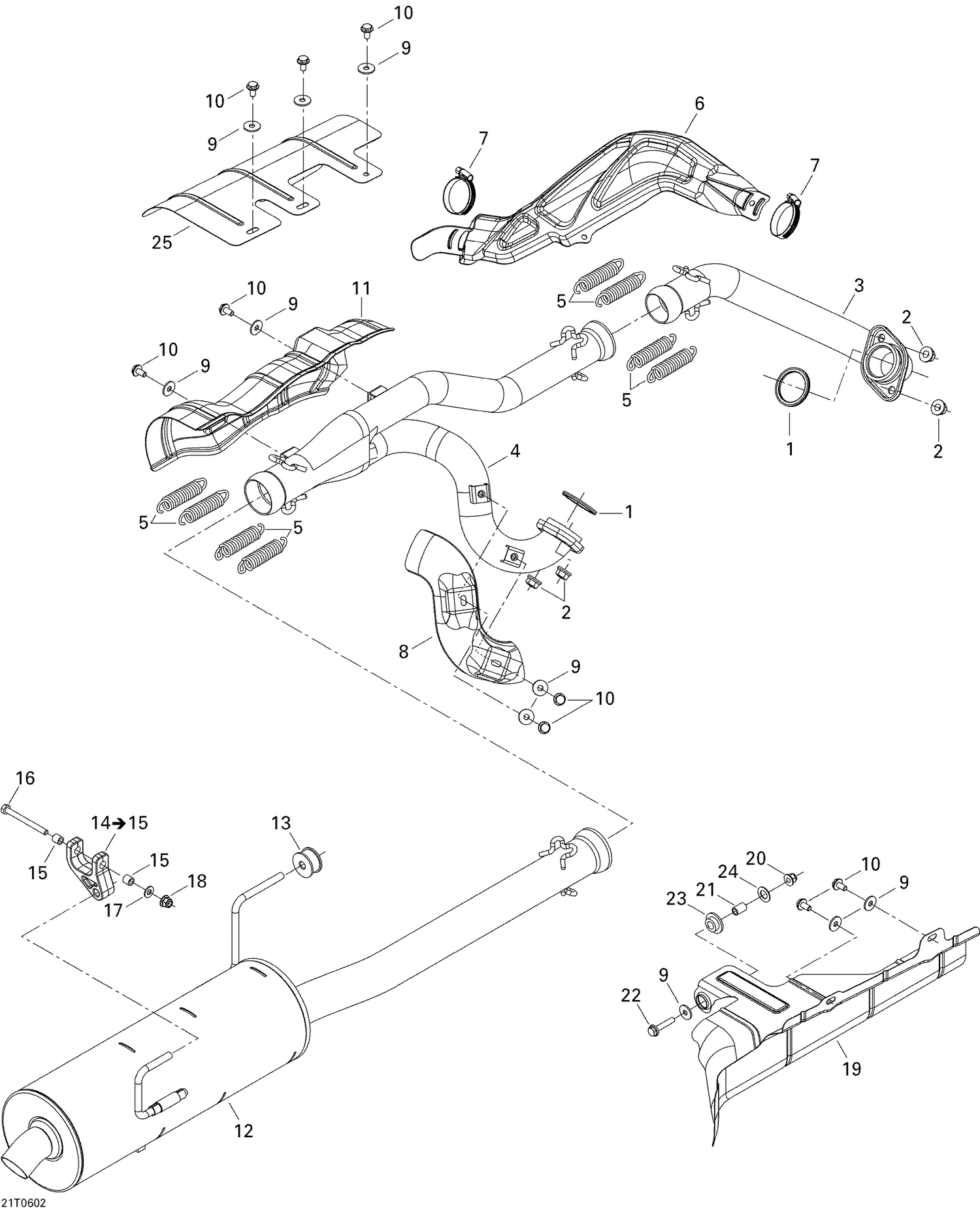

| Ref | Part Number | Description |
|---|
| 1 |
707600317 |
Gasket |
| 2 |
233081416 |
Hex. Flange Nut M8 |
| 3 |
707600529 |
FRONT TUNED PIPE - Call your local BRP dealership This part replaces 707600266. |
| 4 |
707600270 |
Rear Tuned Pipe |
| 5 |
415107100 |
Spring |
| 6 |
707600889 |
Heat Shield This part replaces 707600342. |
| 7 |
293650098 |
Norma Gear Clamp |
| 8 |
707600615 |
PROTECTOR - Call your local BRP dealership This part replaces 707600318. |
| 9 |
250200082 |
Flat Washer This part replaces 391302000. |
| 10 |
250000073 |
HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership |
| 11 |
707600344 |
REAR HEAT SHIELD - Call your local BRP dealership |
| 12 |
707600358 |
Muffler |
| 13 |
707600702 |
Anti-Vibration Rubber This part replaces 707600012. |
| 15 |
293900105 |
Bushing This part replaces 293900045. |
| 16 |
207066544 |
Hex. Screw M6 X 65 |
| 17 |
224061121 |
Flat Washer |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 19 |
707600621 |
Protector This part replaces 707600284. |
| 20 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 21 |
293900078 |
Sleeve This part replaces 708000084. |
| 22 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 23 |
705003932 |
Grommet This part replaces 709200115. |
| 24 |
503175800 |
Washer |
