| Ref | Part Number | Description |
|---|
| 1 |
0126582 |
CLAMP, Timer base |
| 2 |
0126671 |
PLATE, Stator mounting |
| 4 |
0175317 |
CABLE ASSY. |
| 8 |
0175332 |
CABLE ASSY. |
| 10 |
0175345 |
LEAD ASSY. |
| 12 |
0586656 |
TERMINAL, Socket |
| 13 |
0585190 |
FLYWHEEL Assy This part replaces 0175385. |
| 14 |
0175386 |
TIMER BASE Assy |
| 20 |
0126759 |
SPACER, Grommet to crankcase |
| 21 |
0175316 |
POWER PACK |
| 30 |
0302406 |
SLEEVE |
| 31 |
0303714 |
SCREW |
| 33 |
0326136 |
GROMMET |
| 35 |
0328726 |
SCREW (Use existing coil screw) |
| 36 |
0329182 |
VIS, borne |
| 37 |
0329895 |
BORNIER |
| 39 |
0338431 |
BRACKET |
| 40 |
0376349 |
FIL, masse |
| 42 |
0585001 |
REDRESSEUR & FIL This part replaces 0584476. |
| 46 |
0306014 |
VIS, ancrage |
| 51 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 52 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 53 |
0512743 |
DISPOSITIF DE RETENUE |
| 54 |
0325042 |
SCREW, Starter mounting |
| 55 |
0325402 |
SCREW, Bracket |
| 61 |
0329896 |
CACHE DE BORNIER |
| 63 |
0338676 |
BUMPER, Idle stop |
| 64 |
0435530 |
SHELL Assy, Electric start |
| 65 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 68 |
0584560 |
STATOR |
| 73 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 0175384 |
0175384 |

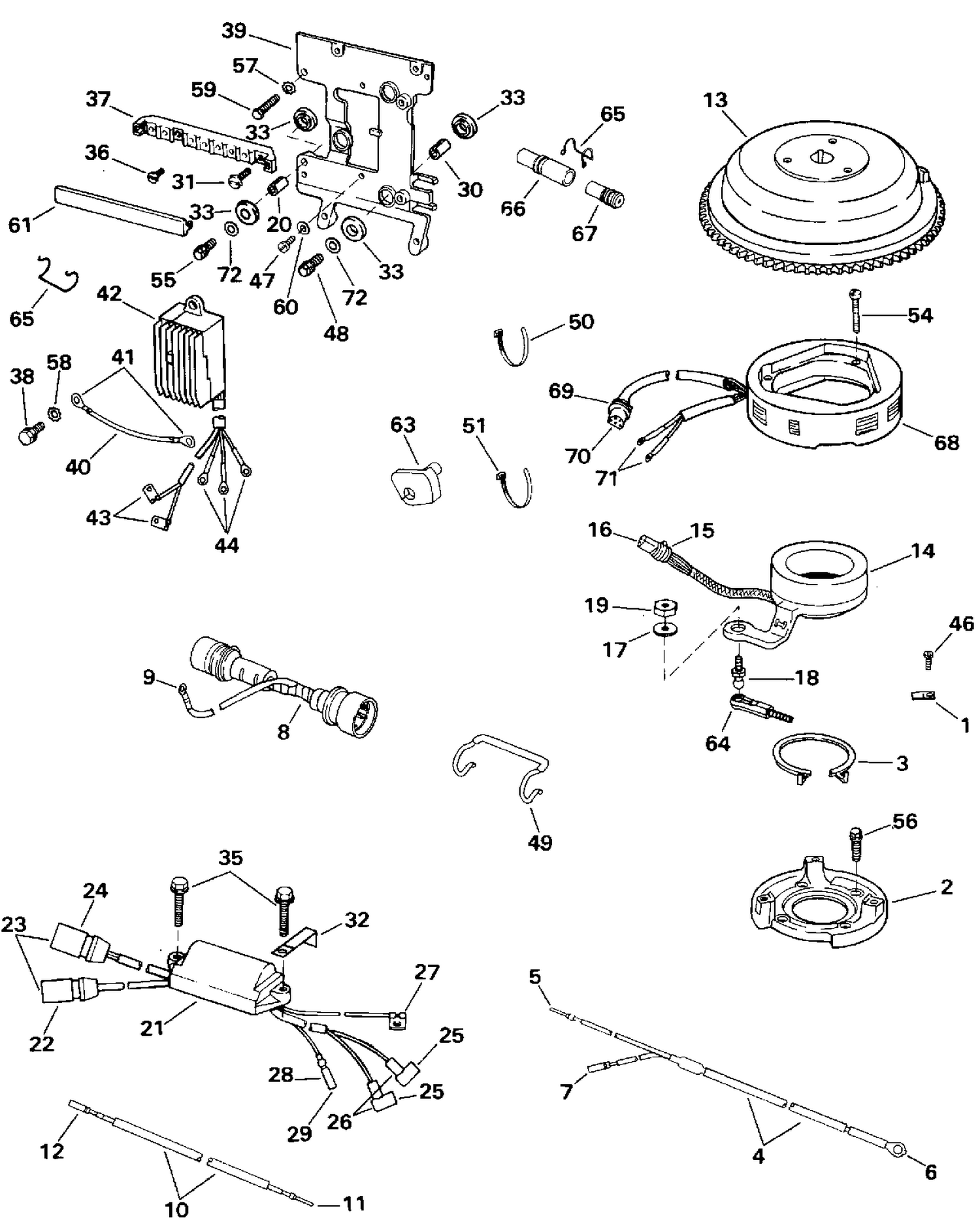

KIT ASSY., 12 Amp charging |
