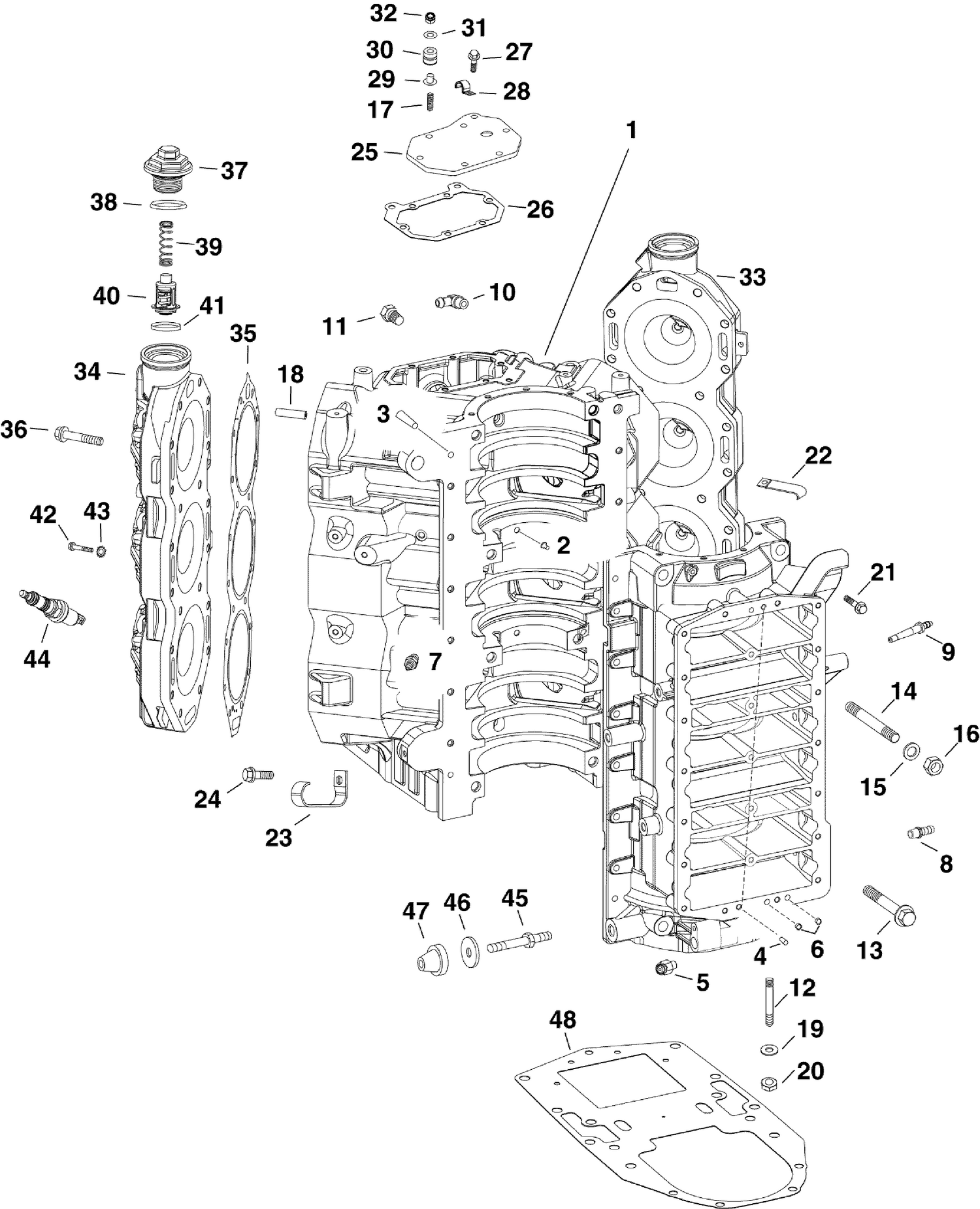

| Ref | Part Number | Description |
|---|
| 1 |
5005909 |
CYLINDER / CRANKCASE Assy |
| 23 |
0351745 |
CLAMP, Harness to block |
| 24 |
0335200 |
VIS, capteur position de vilebrequin vers support |
| 25 |
0347318 |
COVER |
| 28 |
0352767 |
CLAMP, Fuel return rail |
| 33 |
5006194 |
HEAD, Cylinder head - PORT |
| 34 |
5006195 |
HEAD, Cylinder head - STBD |
| 36 |
0352913 |
BOLT, Cylinder head |
| 37 |
0344771 |
COVER, Thermostat |
| 39 |
0345171 |
SPRING, Thermostat |
| 40 |
5005440 |
THERMOSTAT |
| 42 |
0335200 |
VIS, capteur position de vilebrequin vers support |
| 44 |
5011240 |
Spk Plug Qc10Wep This part replaces 5007120. |
| 45 |
0329743 |
STUD, Cover mount |
| 46 |
0349557 |
MOUNT |
| 47 |
0349556 |
Washer |
