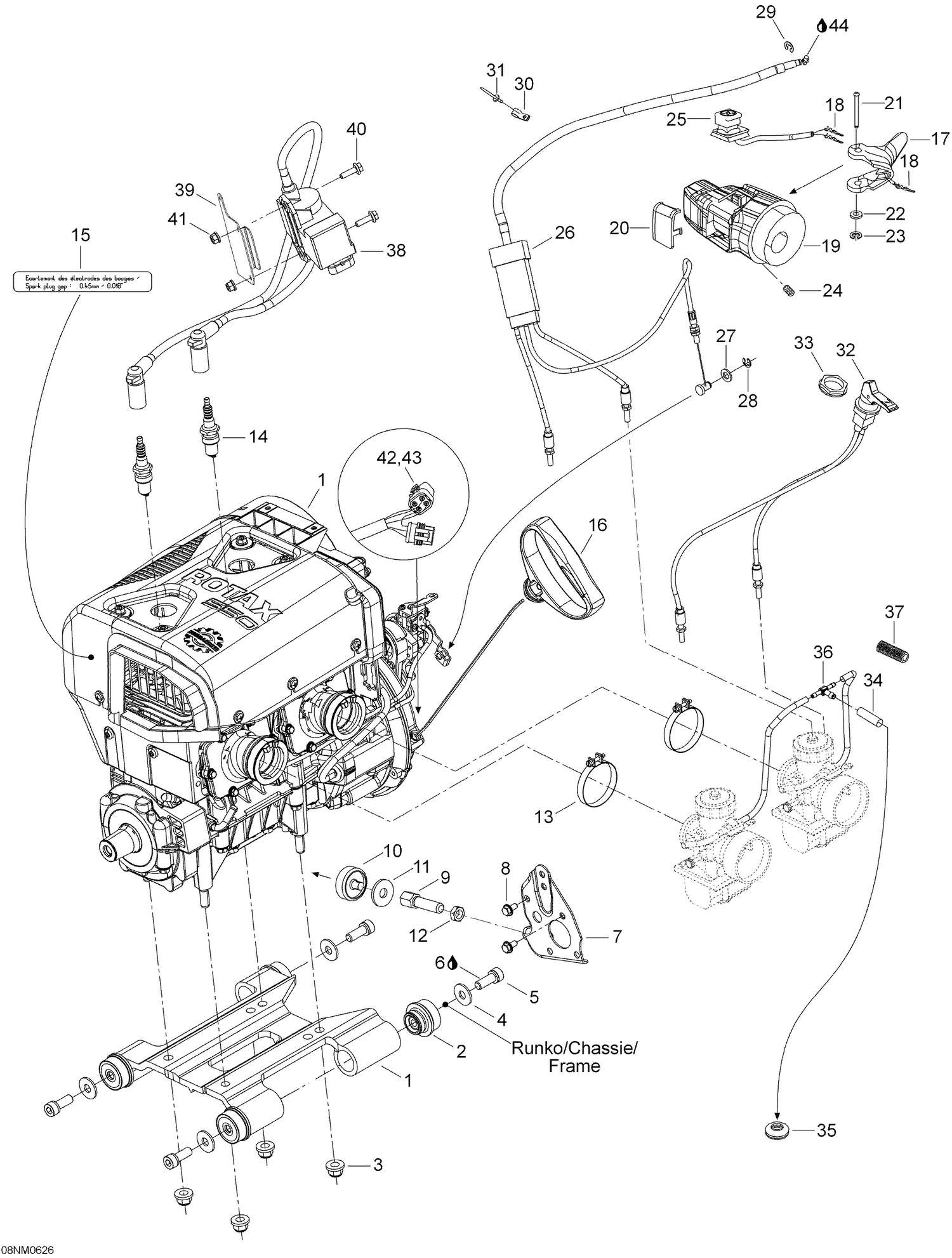

01- Engine And Engine Support
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 512059691 | Rubber |
| 3 | 33074 | NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership |
| 4 | 250200014 | Flat Washer This part replaces 506151251. |
| 5 | 205002544 | Screw M10 x 25 |
| 6 | 293800060 | Liima Loctite 243, 10ml |
| 7 | 512059910 | Plate |
| 8 | 40327 | Hex. screw M6 x 12 |
| 9 | 512058800 | STOPPER SCREW - Call your local BRP dealership |
| 10 | 512059610 | STOPPER - Call your local BRP dealership |
| 11 | 20023 | Washer M10 |
| 12 | 33218 | Jam nut M12 |
| 13 | 512059834 | Clamp |
| 14 | 219703120 | Spark Plug NGK BR9ES This part replaces 414961100. |
| 15 | 516000986 | Decal, spark plug |
| 16 | 572084400 | Grip |
| 17 | 512059624 | Throttle handle |
| 18 | 605642628 | CONNECTOR - Call your local BRP dealership |
| 19 | 572100900 | Throttle handle housing |
| 20 | 572100901 | Cover |
| 21 | 414438700 | Pin |
| 22 | 234051600 | Washer |
| 23 | 414439000 | Circlip |
| 24 | 414440800 | Socket Set Screw M8 X 10 |
| 25 | 515175410 | Switch kill |
| 26 | 512059913 | THROTTLE CABLE - Call your local BRP dealership |
| 27 | 234081100 | Washer |
| 28 | 414753500 | Circlip This part replaces 31035. |
| 29 | 31038 | Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership |
| 30 | 27092 | Clamp |
| 31 | 36037 | Rivet |
| 33 | 512059094 | PLASTIC NUT - Call your local BRP dealership |
| 34 | 39038 | Hose |
| 35 | 414580600 | Grommet |
| 36 | 572045500 | T-fitting |
| 37 | 28012 | Tubing |
| 38 | 512060040 | Electronic box ass'y |
| 39 | 605354186 | Bracket |
| 40 | 40030 | Screw M6 x 20 |
| 41 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 42 | 278001473 | Male connector housing |
| 43 | 278001474 | Lock |
