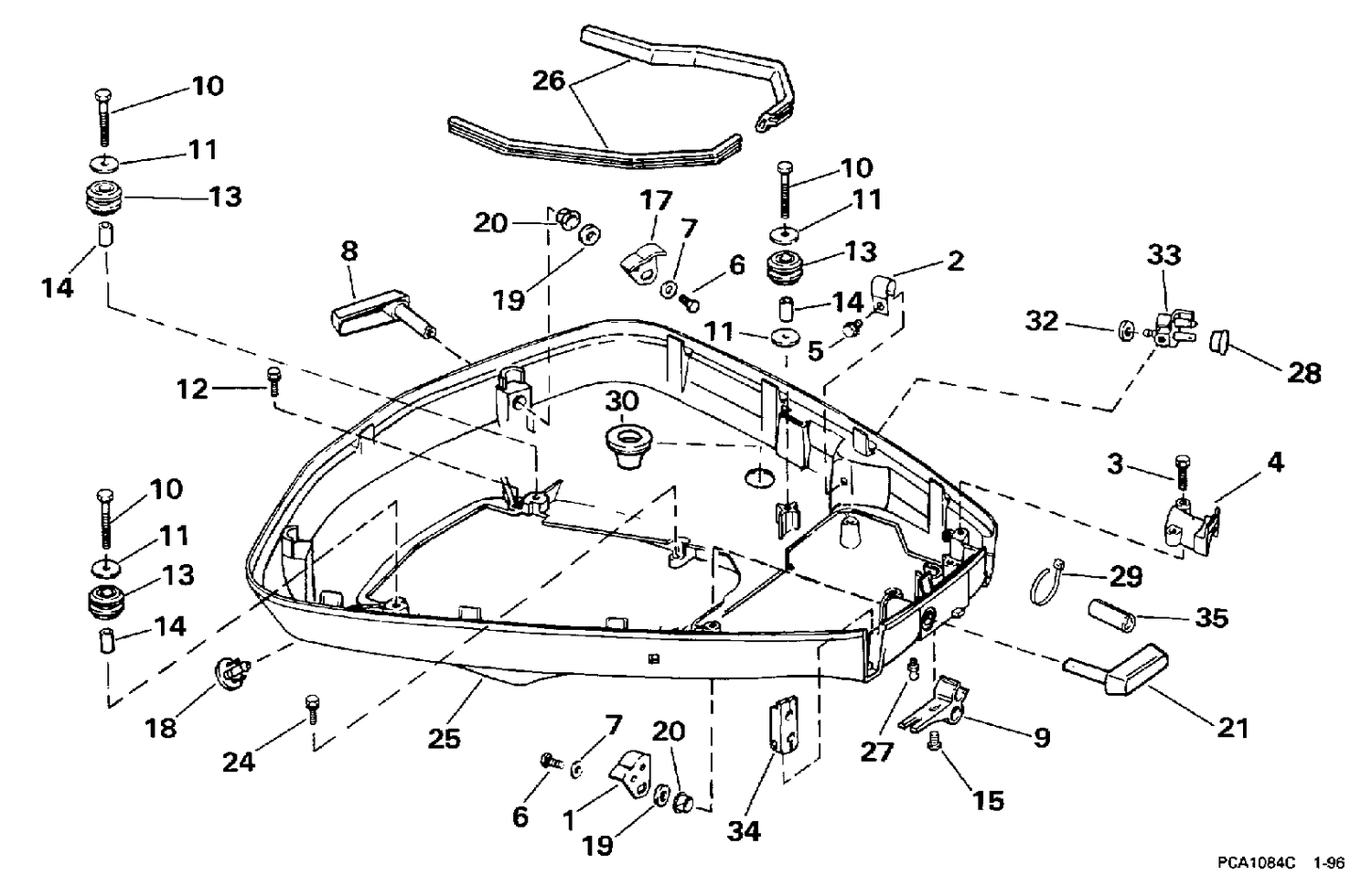

| Ref | Part Number | Description |
|---|
| 1 |
0323170 |
HOOK Front and stbd., rear |
| 3 |
0318178 |
SCREW, Clamp |
| 4 |
0318849 |
CLAMP, Instrument cable |
| 5 |
0908159 |
SCREW, Bearing clamp |
| 8 |
0395758 |
LATCH HANDLE ASSY., Rear |
| 9 |
0333739 |
RETAINER, Fuel hose to cover |
| 10 |
0303398 |
VIS, support |
| 13 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 14 |
0302406 |
SLEEVE |
| 17 |
0323169 |
HOOK, Lower rear port |
| 18 |
0321885 |
NIPPLE |
| 21 |
0395757 |
LATCH HANDLE ASSY., Front |
| 25 |
0434289 |
COVER, Lower |
| 26 |
0332876 |
CAM, Throttle control |
| 28 |
0334718 |
PLUG, Fuel conn. hole |
| 29 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 30 |
0331634 |
BAGUE, câble d'accélérateur |
| 33 |
0393334 |
CONNECTEUR, carburant - mâle |
| 34 |
0323428 |
GROMMET |
