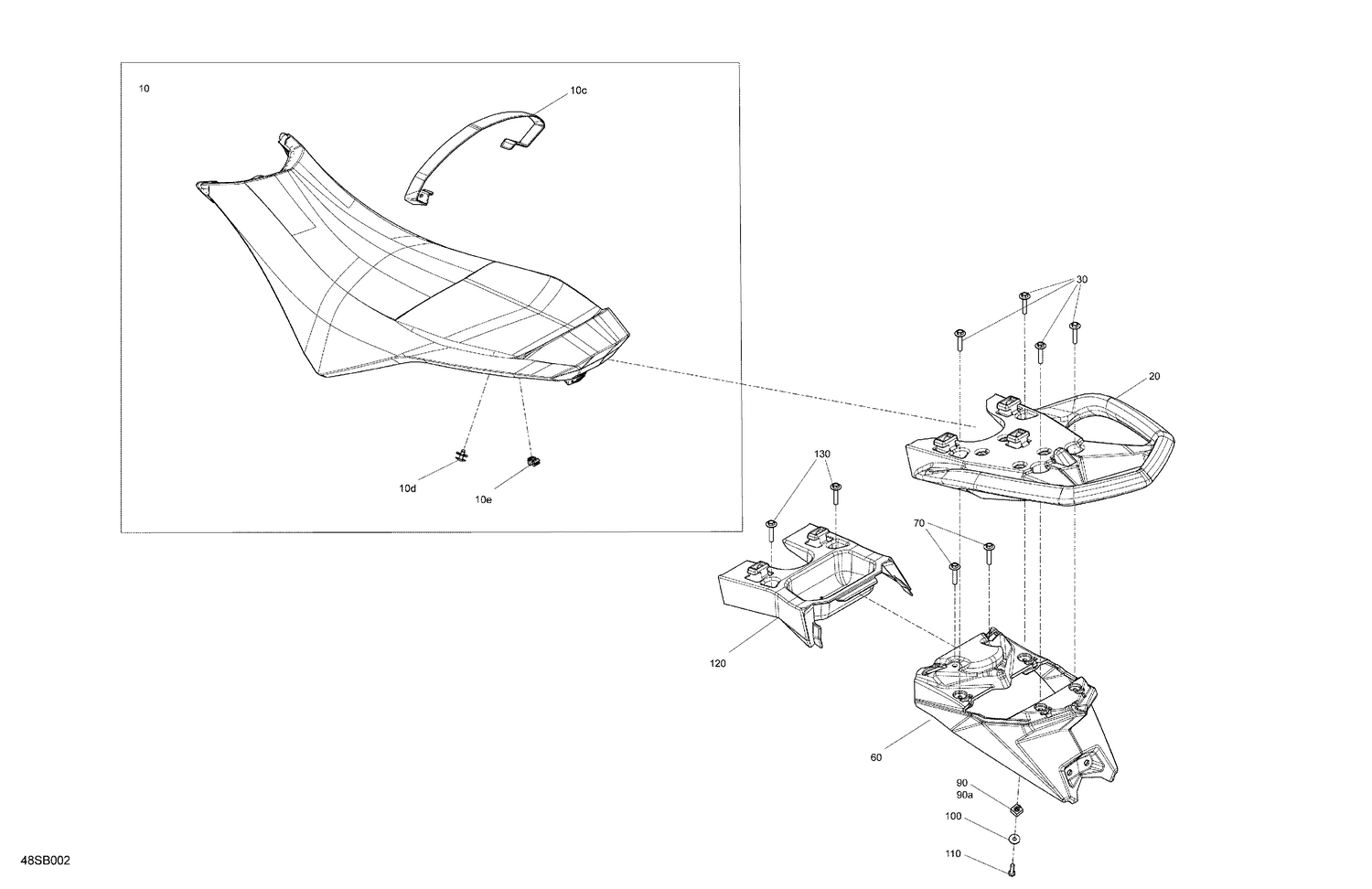

07- Body - Seat - 3 Seater Model
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 10c | 269002973 | Can-Am Red, Seat Strap |
| 10c | 269003139 | Manta Green, Seat Strap |
| 10d | 293150067 | Rivet |
| 10e | 293720100 | Rubber Stopper |
| 20 | 291004527 | Grab Handle |
| 30 | 250000689 | Hex. Cap Screw M6.8 |
| 60 | 291003556 | Handle Support |
| 70 | 250000689 | Hex. Cap Screw M6.8 |
| 90a | 232561200 | Brass Elastic Stop Nut M6 |
| 100 | 234062600 | Flat Washer M6, Stainless |
| 110 | 207162560 | Hex. Screw M6 X 25 |
| 120 | 291003789 | Seat Support |
