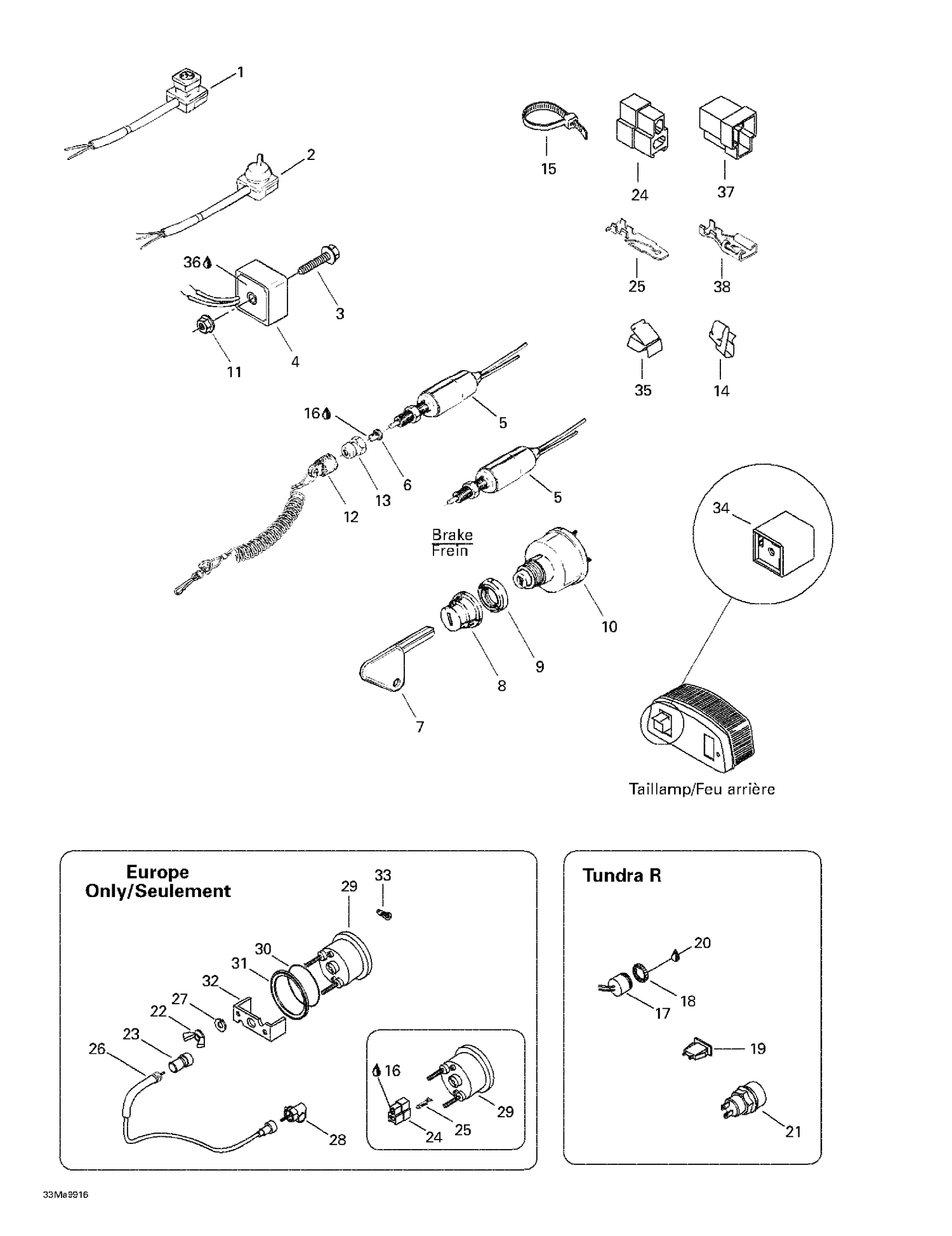

10- Electrical System
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 410209400 | Kill Switch |
| 2 | 410213000 | Dimmer Switch |
| 3 | 207063544 | Hex. Flange Screw M6 X 35 |
| 4 | 515163800 | VOLTAGE REGULATOR - Call your local BRP dealership |
| 5 | 515175653 | Brake Switch This part replaces 410106700. |
| 6 | 570151100 | Plunger Cap |
| 7 | 415129350 | BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 8 | 570013700 | Switch Boot |
| 9 | 410112100 | FACE NUT - Call your local BRP dealership |
| 10 | 410111200 | IGNITION SWITCH - Call your local BRP dealership |
| 11 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 12 | 515178283 | Cap Ass'y This part replaces 515151500. |
| 13 | 515145900 | Switch Nut |
| 14 | 414095100 | Clip |
| 15 | 414115200 | Tie-Rap 180 mm |
| 16 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 20 | 296000309 | Silicone Sealant 51388, 300 ml |
| 34 | 515175250 | Female Terminal Housing, 3 Circuits |
| 35 | 414227300 | Clip |
| 36 | 413707500 | Grease Tube Lmz, 400 G |
| 37 | 409204200 | FEMALE HOUSING - Call your local BRP dealership |
