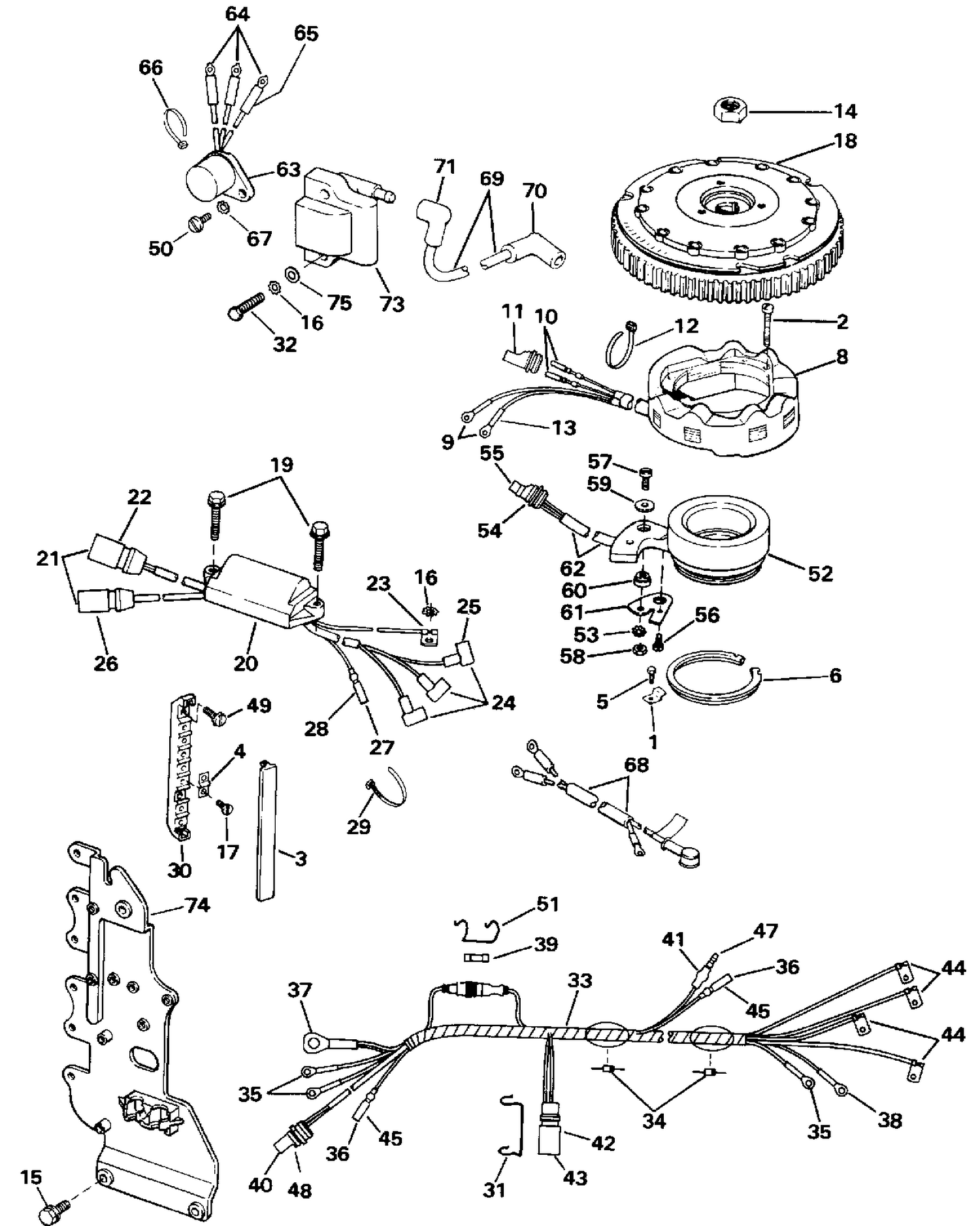

| Ref | Part Number | Description |
|---|
| 1 |
0314495 |
CLAMP, Distributor base |
| 2 |
0325042 |
SCREW, Starter mounting |
| 3 |
0432758 |
TERMINAL BLOCK COVER |
| 4 |
0315004 |
FIL DE LIAISON, bornier |
| 6 |
0313666 |
RET., Distributor base 1 |
| 8 |
0584236 |
STATOR ASSY. |
| 14 |
0329267 |
NUT, Flywheel |
| 17 |
0329182 |
VIS, borne |
| 18 |
0583222 |
FLYWHEEL ASSY. |
| 19 |
0328726 |
SCREW (Use existing coil screw) |
| 20 |
0583748 |
POWER PACK |
| 30 |
0329895 |
BORNIER |
| 31 |
0512743 |
DISPOSITIF DE RETENUE |
| 33 |
0584170 |
MOTOR CABLE ASSY. |
| 49 |
0306644 |
VIS, capteur de papillon |
| 50 |
0306644 |
VIS, capteur de papillon |
| 52 |
0584558 |
TIMER BASE ASSY. This part replaces 0583395. |
| 57 |
0319682 |
VIS, capteur vers plaque |
| 62 |
0511482 |
SLEEVE |
| 63 |
0583940 |
RECTIFIER |
| 68 |
0584381 |
CÂBLE DE BATTERIE This part replaces 0395390. |
| 69 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 73 |
0582508 |
COIL ASSY |
| 74 |
0514222 |
BRACKET, Electrical This part replaces 0513875. |
