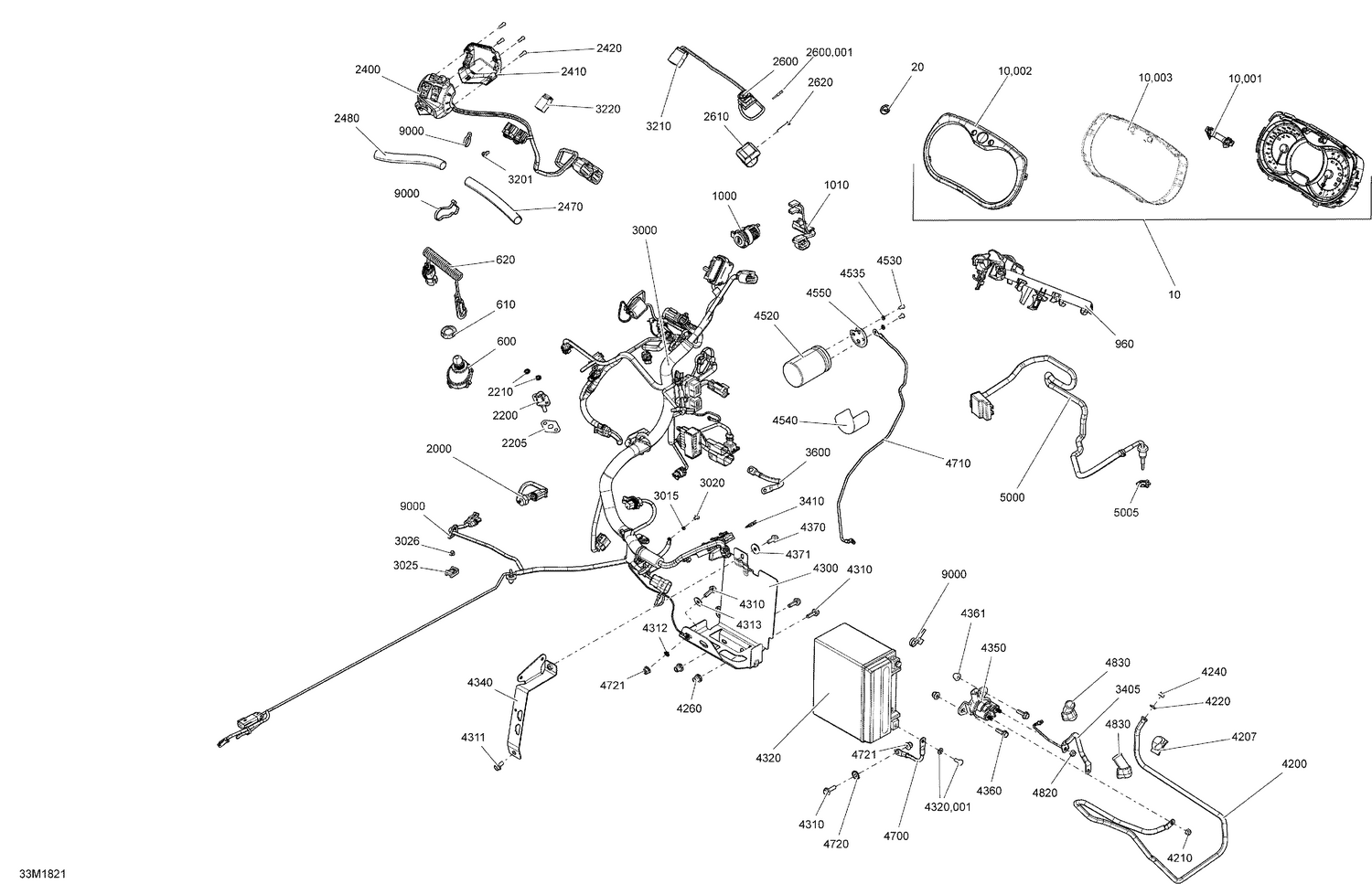

10- Electrical System Renegade - 600 HO E-TEC - Package X
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 516006224 | BRP Logo 20MM x 2MM |
| 600 | 515178840 | Terminal Dess One-Wire This part replaces 515178225. |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178286 | Grey, RF Key Ass'y |
| 960 | 515177134 | Connector Plate |
| 2000 | 420664509 | Temperature Sensor This part replaces 515177813. |
| 2200 | 515176366 | Air Temperature Sensor |
| 2205 | 508000769 | Seal |
| 2210 | 389804300 | Push Nut |
| 2400 | 515178197 | LH Switch Housing |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 2470 | 219704418 | PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership |
| 2480 | 219704418 | PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership |
| 2610 | 515177310 | Emergency Stop Switch Support |
| 2620 | 250000263 | Torx Screw #8-18 |
| 3000 | 515177984 | Main Harness |
| 3015 | 234141601 | Lock Washer 4 mm |
| 3020 | 250000741 | Screw-Torx Button Head M4 X 8 |
| 3027 | 518325560 | Adhesive Patch |
| 3201 | 250000690 | Pan Screw Forming, 7500C |
| 3210 | 515175662 | Male Terminal Housing, 6 Circuits |
| 3220 | 515175846 | Male Terminal Housing, 4 Circuits |
| 3405 | 515177576 | Fuse Battery Wire |
| 3410 | 278001443 | Fuse, 25 Amperes |
| 3600 | 515177289 | Ground Wire |
| 4200 | 515177208 | Battery/Starter Wire |
| 4207 | 515177066 | Clip |
| 4210 | 232561414 | Elastic Stop Nut M6 |
| 4220 | 234061410 | Flat Washer 6 mm |
| 4240 | 232561414 | Elastic Stop Nut M6 |
| 4260 | 293450275 | Insert |
| 4300 | 515177264 | Battery Support |
| 4310 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4311 | 207661244 | Hex. Flange Screw M6 X 12 |
| 4312 | 234461608 | External Serrated Lock Washer 6 mm |
| 4313 | 250200082 | Flat Washer |
| 4340 | 515177266 | Battery Strip |
| 4350 | 278003012 | Starter Relay |
| 4360 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4361 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 4370 | 207661644 | Hex. Flange Screw M6 X 16 |
| 4371 | 224061201 | Flat Washer |
| 4520 | 515177272 | Capacitor |
| 4530 | 250000462 | Socket Head Screw M10 X 32 |
| 4535 | 250200026 | Lock washer |
| 4540 | 516008593 | Capacitor Decal |
| 4550 | 515177193 | Cap |
| 4700 | 515176358 | Ground Wire |
| 4710 | 515178052 | Ground Wire |
| 4720 | 250200041 | Lock Washer Serrated M6 |
| 4721 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 4820 | 232561414 | Elastic Stop Nut M6 |
| 4830 | 710000495 | Protector Cap |
| 9000 | 293750001 | Tie Wrap 94 mm |
| 9000 | 293750002 | Tie Wrap 142 mm |
| 9000 | 293750008 | Tie Wrap 368 mm |
| 9000 | 414115200 | Tie-Rap 180 mm |
