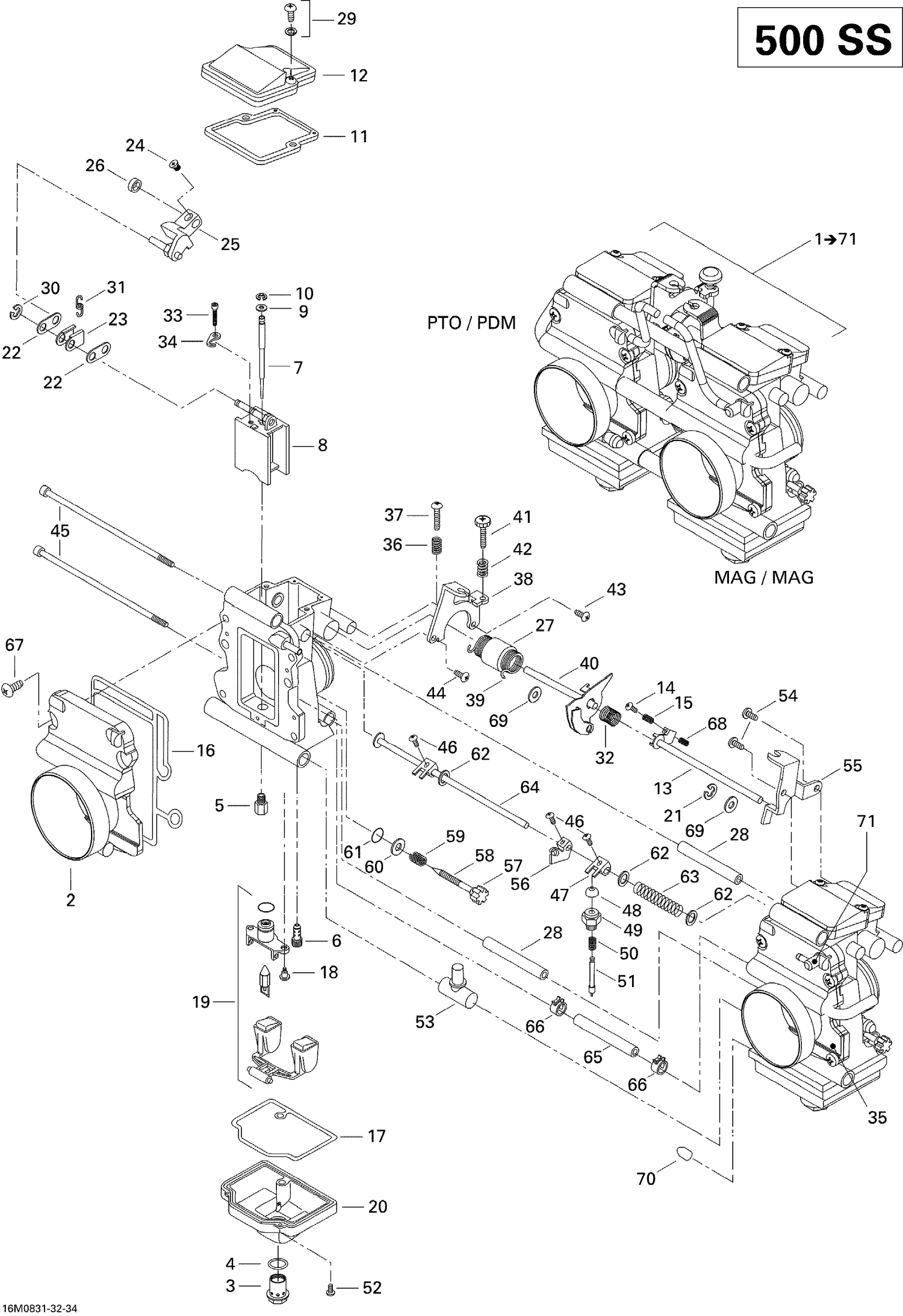

02- Carburetor 500SS
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 404162093 | Funnel, PTO |
| 3 | 404162094 | Drain Screw |
| 4 | 404161945 | O-Ring |
| 5 | 404107900 | MAIN JET MJ 420 Mikuni 4/042-420 - Call your local BRP dealership |
| 6 | 404161944 | Pilot Jet 17.5 |
| 7 | 404162119 | NEEDLE JET J8-9CEY01-58 - Call your local BRP dealership |
| 8 | 404162020 | Valve Piston 2.0 |
| 9 | 404137600 | Packing |
| 10 | 404152200 | E-Ring |
| 11 | 404161940 | Gasket |
| 12 | 404161939 | COVER - Call your local BRP dealership |
| 13 | 404162006 | Throttle Shaft |
| 14 | 404136700 | Screw |
| 15 | 404135300 | Adjustment Spring |
| 16 | 404161935 | O-Ring |
| 17 | 404161961 | O-Ring |
| 18 | 404161933 | Screw |
| 19 | 404161932 | Float |
| 20 | 404162095 | Body Float Ass'y |
| 21 | 707200027 | E-Ring |
| 22 | 404162007 | Plate |
| 23 | 404162008 | Holder |
| 24 | 404161928 | Screw |
| 25 | 404162009 | Lever |
| 26 | 404161926 | Ring |
| 27 | 404161925 | Ring |
| 28 | 404161924 | RING - Call your local BRP dealership |
| 29 | 404161923 | Screw |
| 30 | 404138300 | E-Ring |
| 31 | 404162010 | Spring |
| 32 | 404162011 | Spring |
| 33 | 404161920 | Screw |
| 34 | 404161919 | Plate |
| 35 | 404162096 | Funnel, MAG |
| 36 | 404161918 | Spring |
| 37 | 404161917 | Screw |
| 38 | Not | Available As Spare Part - Bracket |
| 39 | 404162014 | Spring |
| 40 | 404162015 | Throttle Shaft |
| 41 | 404137500 | Adjustment Screw |
| 42 | 404161913 | Spring |
| 43 | 404161912 | Screw |
| 44 | 404136100 | Screw |
| 45 | 404161911 | SCREW - Call your local BRP dealership |
| 46 | 404161910 | Screw |
| 47 | 404161909 | Lever |
| 48 | 404140000 | Cap |
| 49 | 404136900 | Guide Holder |
| 50 | 404161908 | Spring |
| 51 | 404161907 | Plunger Ass'y |
| 52 | 404161906 | Screw |
| 53 | 404161905 | Nipple |
| 54 | 404161903 | Screw |
| 55 | Not | Available As Spare Part - Bracket |
| 56 | 404161901 | Starter Lever |
| 57 | 404161899 | Cap |
| 58 | 404161898 | Adjuster |
| 59 | 404161897 | Spring |
| 60 | 404161896 | Washer |
| 61 | 404161895 | Packing |
| 62 | 404161894 | Packing |
| 63 | 404103500 | Spring |
| 64 | Not | Available As Spare Part - Shaft |
| 65 | 404161956 | Hose |
| 66 | 404161957 | Clip |
| 67 | 404138800 | Screw |
| 68 | 404135400 | Spring |
| 69 | 270500118 | Packing |
| 70 | 270500095 | Cap |
