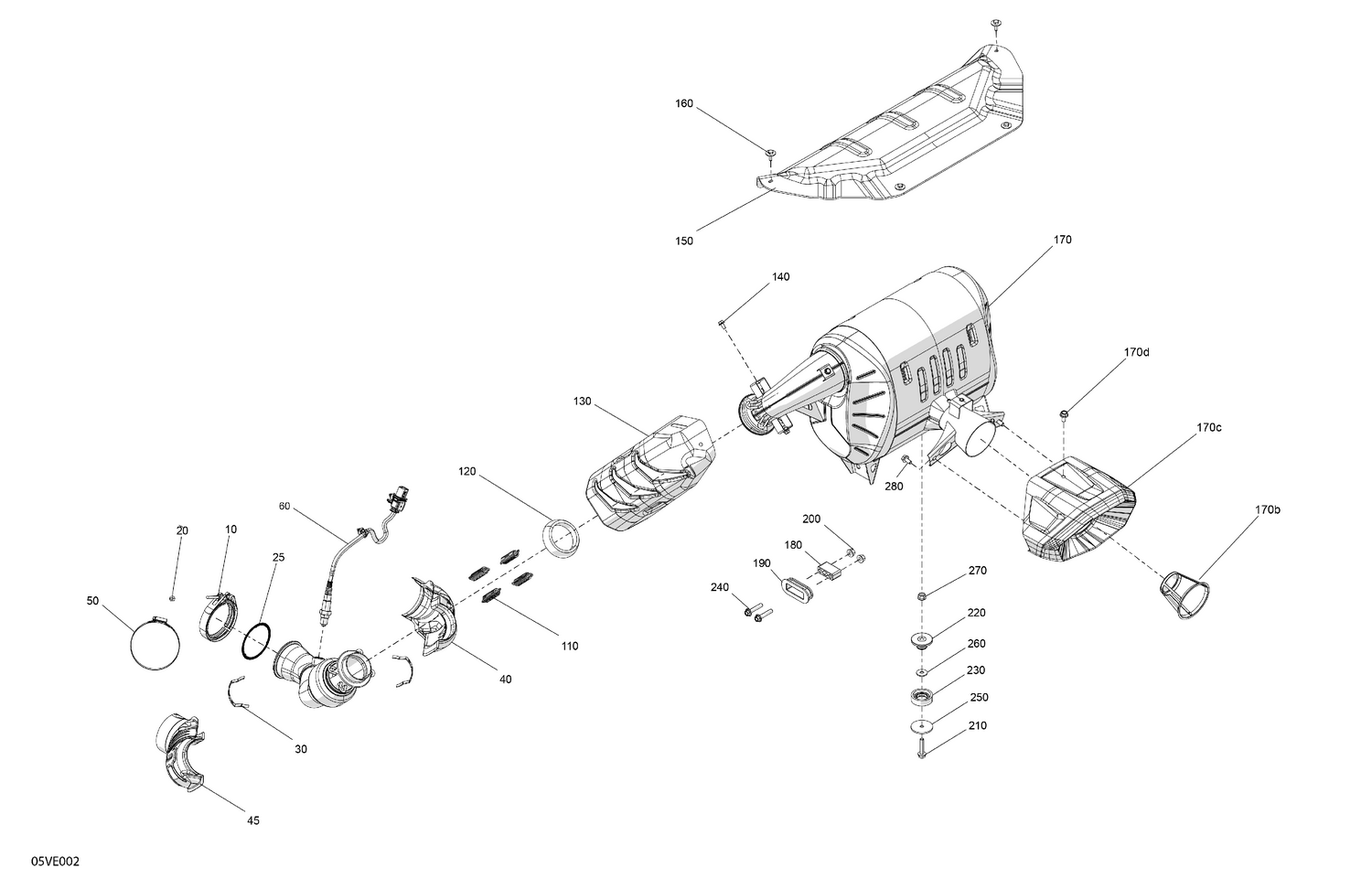

02- Engine - Exhaust
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 707603708 | Exhaust Clamp |
| 20 | 707602143 | Nut |
| 25 | 707601835 | Seal |
| 30 | 707602877 | Exhaust Pipe |
| 40 | 707603578 | Lower Heat Shield |
| 45 | 707603579 | Upper Heat Shield |
| 50 | 293650259 | Clamp |
| 60 | 707602926 | Oxygen Sensor |
| 110 | 707601834 | Spring |
| 120 | 707603140 | Joint |
| 130 | 707602881 | Lateral Heat Shield |
| 140 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 150 | 707603450 | Heat Shield |
| 160 | 250001165 | Hex Sems Screw M6X20 |
| 170b | 707603567 | Spark Arrester |
| 170c | 707603272 | Muffler End Piece |
| 170d | 207581644 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 180 | 707603214 | Muffler Stopper |
| 190 | 707603488 | Vibration Damper |
| 200 | 233081436 | Hex. Flange Nut |
| 210 | 207684044 | Hex. Flange Screw M8 X 40 |
| 220 | 707003062 | Anti Vibration Mount |
| 230 | 707603383 | Rubber Mount |
| 240 | 207684044 | Hex. Flange Screw M8 X 40 |
| 250 | 250200180 | Flat Washer M8 |
| 260 | 234082410 | Flat Washer 8 mm |
| 270 | 233081436 | Hex. Flange Nut |
