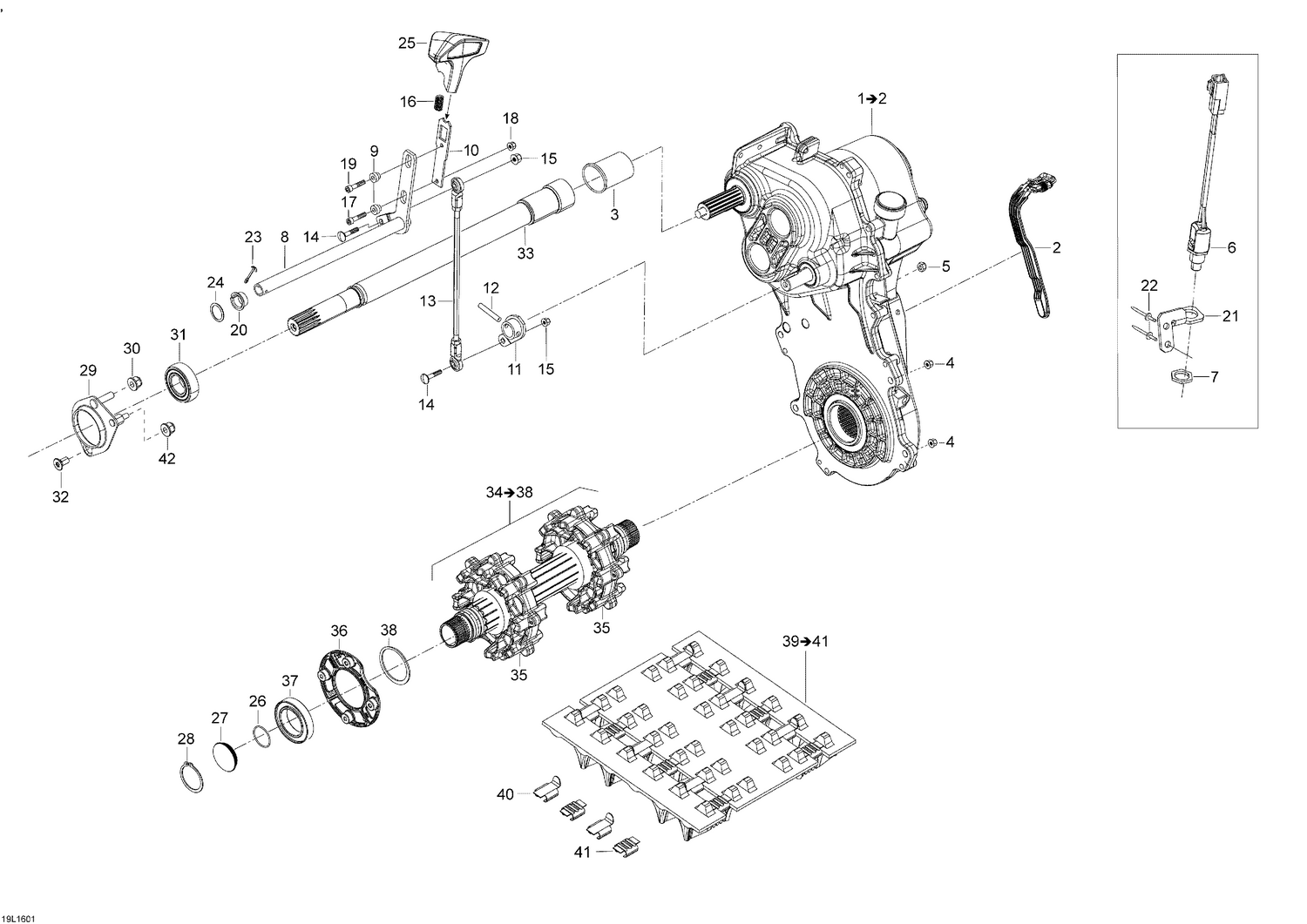

05- Drive System
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 504152896 | Sensor |
| 3 | 504153054 | Protective Rubber |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 |
| 5 | 232581414 | Hex. Elastic Stop Nut M8 |
| 6 | 515176472 | Switch |
| 7 | 250000373 | BRASS NUT - Call your local BRP dealership |
| 8 | 504153288 | Shifter |
| 9 | 504152787 | Sleeve |
| 10 | 504153287 | Shifter Arm |
| 11 | 504153280 | Lever |
| 12 | 41012 | Spring Pin 6 x 30 |
| 13 | 504153258 | Shifter Rod |
| 14 | 250000677 | Bolt Carriage M6 x 20 |
| 15 | 232561434 | Elastic Stop Nut M6 |
| 16 | 504152882 | Spring |
| 17 | 205052544 | Socket Head Screw M10 x 1.5 |
| 18 | 233251434 | Flanged Elastic Nut M5 |
| 19 | 250000676 | Forming Screw M5 x 16 |
| 20 | 504152890 | Bushing |
| 21 | 504152902 | Sensor Bracket |
| 22 | 293150163 | Rivet Hucklok |
| 23 | 250400035 | Cotter Pin |
| 24 | 503189273 | Washer |
| 25 | 504152837 | Shifter Handle |
| 26 | 293300122 | O-Ring |
| 27 | 504152619 | Magnetic Cap |
| 28 | 504152572 | Circlip |
| 29 | 504153187 | Bearing Housing |
| 30 | 233281414 | Hex. Flange Elastic Nut M8 |
| 31 | 293350074 | Ball Bearing |
| 32 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 33 | 504152963 | Counter Shaft |
| 35 | 504153087 | LH Sprocket (7 T) |
| 35 | 504153088 | RH Sprocket (7 T) |
| 36 | 504153886 | Retaining Ring This part replaces 504152949. |
| 37 | 293350059 | Ball Bearing |
| 38 | 504153207 | Shim |
| 40 | Not | Available As Spare Part - Guide |
| 41 | Not | Available As Spare Part - Cleat |
