Home / BRP / 2022 / 002 - SKI-DOO - North America - EXPEDITION Series / GEARCASE

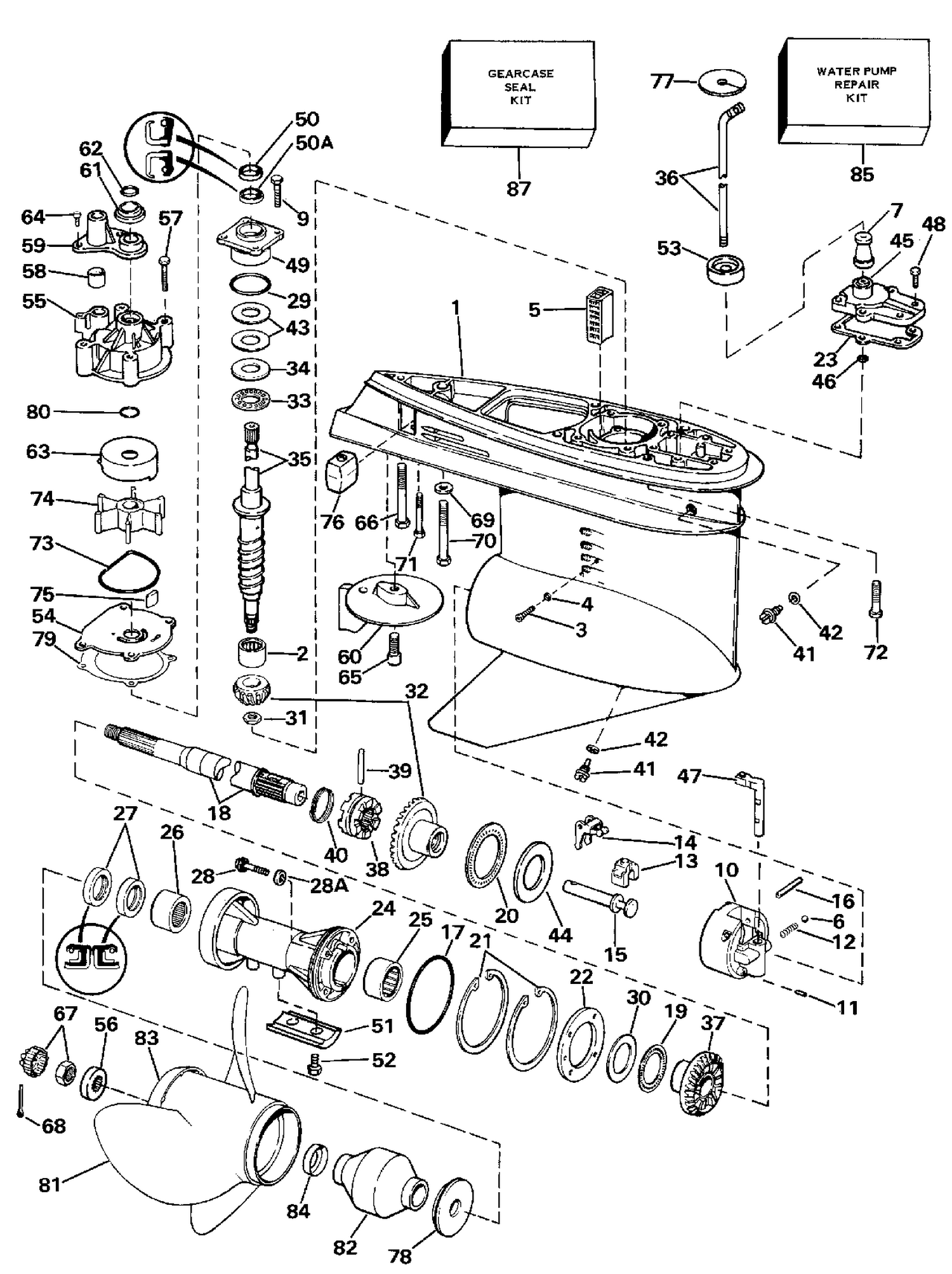

GEARCASE

GEARCASE

Parts (45)

RefPart NumberDescription
1 0431787 GEARCASE & BEARING ASSY.
17 0305123 O RING This part replaces 0321119.
18 0395209 PROP SHAFT ASSY
21 0321171 RETAINING RING
22 0321174 PLUG, Large
24 0397094 BEARING HOUSING & SEAL ASSY
28 0316563 SCREW
28A 0332583 SCREW & SEAL ASSY.
35 5000775 Kit Ayd/Shaft-20 This part replaces 0394615.
35 5000776 Kit Ay This part replaces 0394616.
36 0332122 SHIFT ROD
36 0332293 SHIFT ROD
37 0332725 GEAR, Reverse
54 0435027 CUP & PLATE This part replaces 0330380.
54 0435526 CHROME CUP & PLATE KIT This part replaces 0330383.
55 0435485 IMPELLER HOUSING ASSY. This part replaces 0395040.
57 0335221 SCREW, Throttle body to reed plate This part replaces 0328715.
60 0338742 COMPENSATEUR DE DÉRIVE This part replaces 0327640.
63 0435027 CUP & PLATE This part replaces 0330379.
63 0435526 CHROME CUP & PLATE KIT This part replaces 0330384.
65 0313715 SCREW, Cap, hex hd, 7/16-14 x 1
66 0330263 SCREW, Mounting, 3/8 in. X 3.50 in.
69 0306314 L'WASHER,Scr,long
70 0331998 SCREW, Gearcase to housing
72 0331999 SCREW, Gearcase housing
73 0331353 Seal, Impeller Housing Plate.
77 0322302 SEAL, Adapter to frame
78 0333592 THRUST BUSHING
80 0332000 SEAL RING
81 0389019 PROP, 14-1/2 x 23 SST
81 0389923 PROP, 14-1/2 x 21 SST
81 0389924 PROP, 14-1/2 x 19 SST
81 0389925 PROP, 15 x 16 SST
81 0390831 PROP, 14-1/2 x 14 SST
81 0391201 PROP, 14-1/2 x 19
81 0391202 PROP, 14-1/2 x 21
81 0391203 BEARING ASSY,Rear,std
81 0391290 PROP, 15 x 17 SST
81 0391535 PROP, 15-1/2 x 15
81 0391536 PROP, 15-1/2 x 13
81 0765187 PROPELLER, WDEX Models This part replaces 0391200.
85 5001594 WATER PUMP REPAIR KIT This part replaces 0395060.
87 5006373 GEARCASE SEAL KIT This part replaces 0396353.
0398096 0434427 GEARCASE ASSY., Complete This part replaces 0398096.
0398097 0434428 GEARCASE ASSY., Complete This part replaces 0398097.
