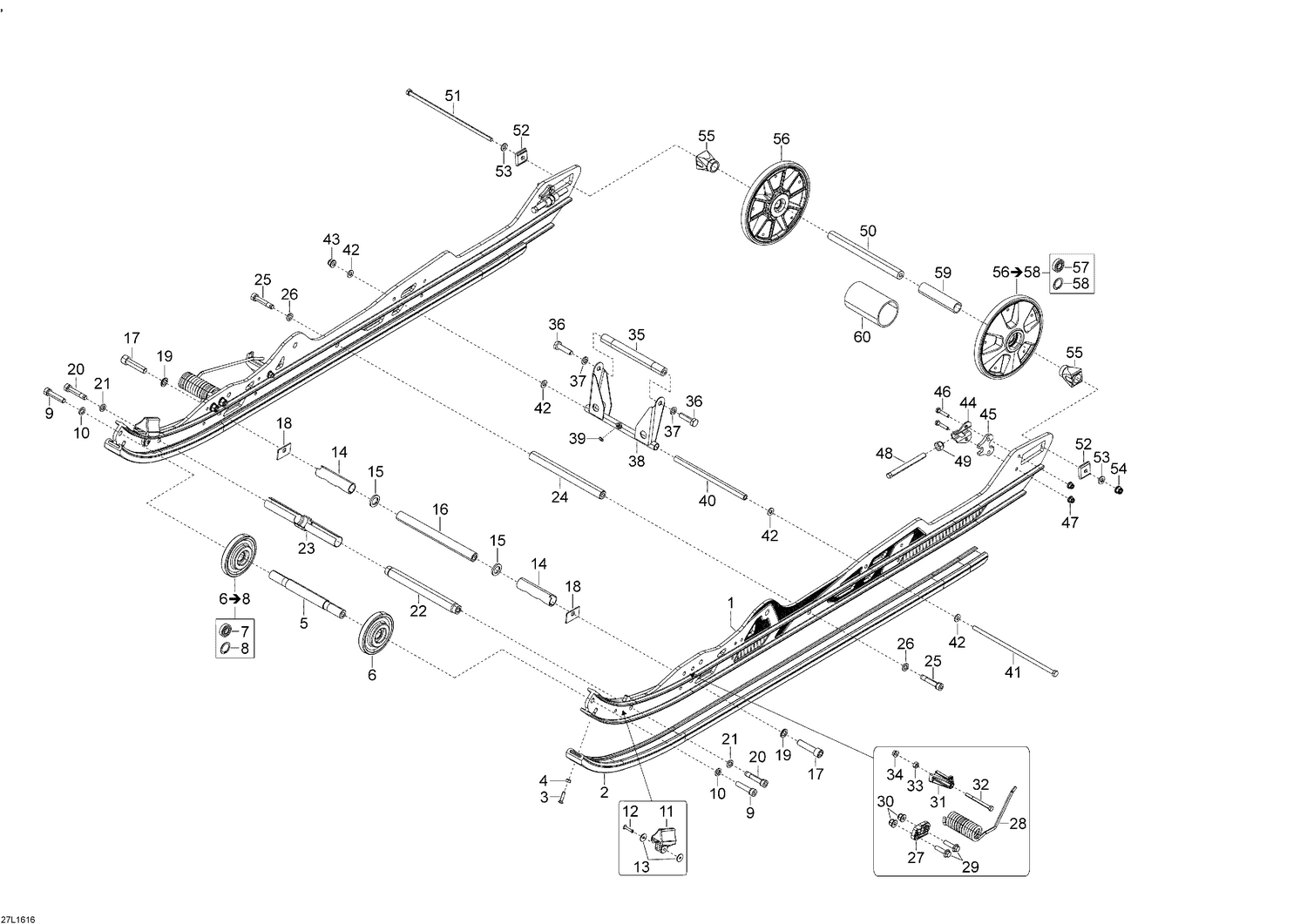

08- Rear Suspension A
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 208562531 | Phillips Screw M6 X 25 |
| 4 | 232561434 | Elastic Stop Nut M6 |
| 5 | 503192842 | Front Wheel Shaft |
| 7 | 503190396 | Ball Bearing |
| 8 | Not | Available As Spare Part - Circlip |
| 9 | 205504544 | Socket Screw |
| 10 | 503192496 | Washer |
| 11 | 503192106 | Rubber Stopper |
| 12 | 293150142 | Pop Rivet 3/16" |
| 13 | 503191273 | Washer |
| 14 | 605349896 | Sleeve |
| 15 | 31013 | Shim Ring |
| 16 | 605350690 | Shaft |
| 17 | 205525554 | Socket Screw |
| 18 | 605449294 | Support Plate |
| 19 | Not | Available As Spare Part - Lock Washer |
| 20 | 205505054 | Socket Screw |
| 21 | 503192496 | Washer |
| 22 | 605353958 | Shaft |
| 23 | 605355096 | Limiter Strap Retainer |
| 24 | 5343471 | Shaft |
| 25 | 205505054 | Socket Screw |
| 26 | 503192496 | Washer |
| 27 | 503193881 | SUPPORT - Call your local BRP dealership |
| 27 | 503193882 | RH Support |
| 28 | 503193825 | LH Spring |
| 28 | 503193826 | RH Spring |
| 29 | 207683054 | Hex. Flange Screw M8 X 30 |
| 30 | 233281466 | Elastic Flang Nut M8 |
| 31 | 861805521 | Hook Kit This part replaces 503194143. |
| 32 | 207167054 | Hex. Cap Screw M6 X 70 |
| 33 | 232061414 | Nut M6 |
| 34 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 35 | 503193638 | Shaft |
| 36 | 207204044 | Hex Cap Screw Din.931 S.grip |
| 37 | 503192496 | Washer |
| 38 | 503194342 | Rear Swing |
| 39 | 408200700 | Grease Fitting |
| 40 | 503189156 | Pivot Axle |
| 41 | 503192440 | Bolt M8 X 248mm |
| 42 | 503192494 | Washer |
| 43 | 233281466 | Elastic Flang Nut M8 |
| 44 | 503192583 | Tensioner |
| 45 | 503193250 | Spacer |
| 46 | 207063054 | Hex. Cap Screw M6 X 30 |
| 47 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 48 | 230100054 | Hex Screw M10 x 100 |
| 49 | 233601466 | Elastic Locking Nut M10 |
| 50 | 503194105 | Axle |
| 51 | 503194069 | Bolt M8 |
| 52 | 503194412 | Axle Slider |
| 53 | 250200159 | Conical Spring Washer |
| 54 | 233281466 | Elastic Flang Nut M8 |
| 55 | 503190428 | Rear Wheel Spacer |
| 57 | 503190396 | Ball Bearing |
| 58 | 415129371 | Retaining Ring |
