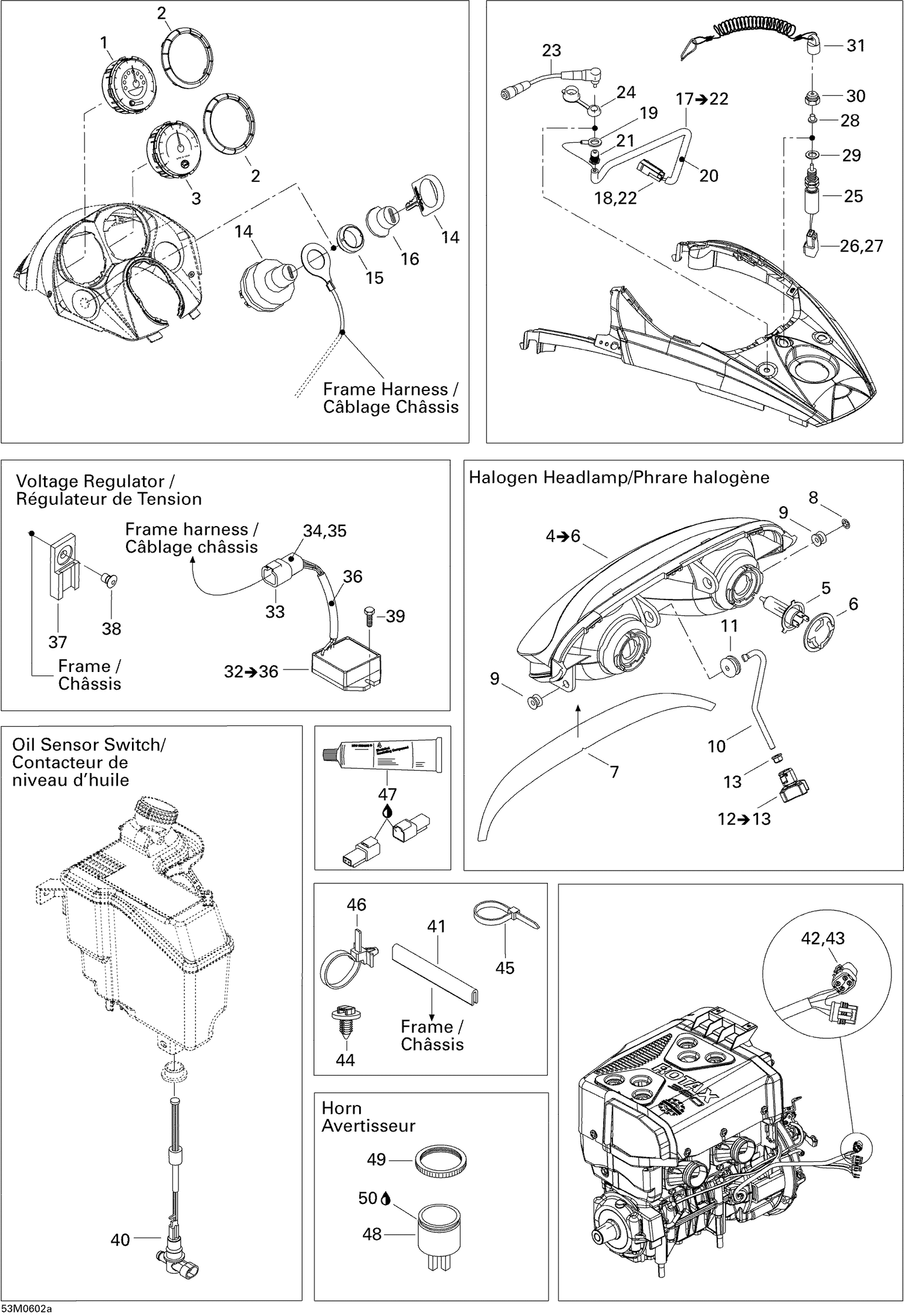

| Ref | Part Number | Description |
|---|
| 1 |
515176301 |
SPEEDOMETER - Call your local BRP dealership |
| 2 |
515179005 |
Gauge Ring This part replaces 515176242. |
| 3 |
515176303 |
TACHOMETER - Call your local BRP dealership |
| 5 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 6 |
515176385 |
BULB HOLDER - Call your local BRP dealership |
| 7 |
516001328 |
HEADLAMP DECAL - Call your local BRP dealership |
| 8 |
732610072 |
Push Nut |
| 9 |
515175760 |
HEADLAMP BUSHING - Call your local BRP dealership |
| 10 |
515175521 |
ADJUSTER ROD - Call your local BRP dealership |
| 11 |
415100800 |
Grommet - Call your local BRP dealership |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 14 |
515176548 |
IGNITION SWITCH - Call your local BRP dealership This part replaces 410113602. |
| 15 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 16 |
570013700 |
Switch Boot |
| 18 |
515175232 |
Male Terminal |
| 19 |
515175172 |
OPEN BARREL - Call your local BRP dealership |
| 20 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 21 |
415096100 |
Visor Plug |
| 22 |
515175654 |
Male Terminal Housing, 2 Circuits |
| 23 |
515175851 |
Extension |
| 24 |
572103300 |
Cap |
| 25 |
515175653 |
Brake Switch |
| 26 |
515175654 |
Male Terminal Housing, 2 Circuits This part replaces 515176297. |
| 27 |
515175232 |
Male Terminal |
| 28 |
570151100 |
Plunger Cap |
| 29 |
Not |
Available As Spare Part - Washer |
| 30 |
515145900 |
Switch Nut |
| 31 |
515178283 |
Cap Ass'y This part replaces 515151500. |
| 33 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 34 |
515175568 |
Male Terminal |
| 35 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 36 |
710000497 |
PROTECTOR TUBE, 9 MM - Call your local BRP dealership |
| 37 |
270000141 |
Clip This part replaces 515175917. |
| 38 |
293150037 |
Avdel Rivet 3/16" |
| 39 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 40 |
515176327 |
OIL LEVEL SENSOR - Call your local BRP dealership |
| 41 |
509000263 |
TRIM - Call your local BRP dealership |
| 42 |
278001473 |
Female Terminal Housing, 4 Circuits |
| 43 |
278001474 |
Female Lock, 4 Circuits |
| 44 |
293730040 |
Mount Dart This part replaces 293730018. |
| 45 |
293750002 |
Tie Wrap 142 mm |
| 45 |
414115200 |
Tie-Rap 180 mm |
| 46 |
293750009 |
Tie-Rap 173 mm |
| 47 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 48 |
515176035 |
HORN - Call your local BRP dealership |
| 49 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
