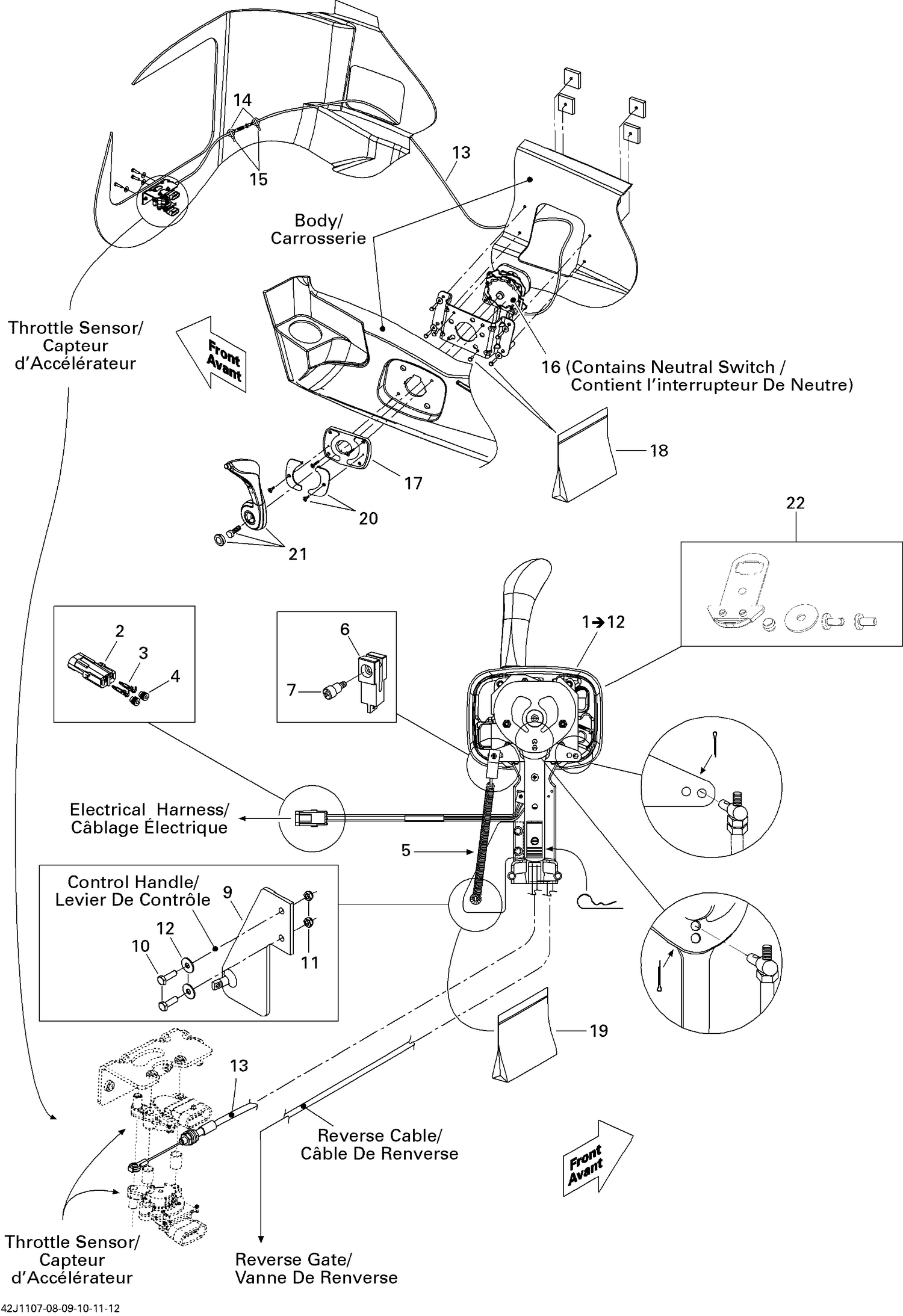

| Ref | Part Number | Description |
|---|
| 2 |
278000217 |
Female Housing, 2 Circuits |
| 3 |
278000222 |
Male Terminal |
| 4 |
278000218 |
Wire Seal |
| 5 |
204130208 |
SPRING - Call your local BRP dealership |
| 6 |
204130209 |
CLEVIS, STAINLESS STEEL - Call your local BRP dealership |
| 7 |
204100229 |
PHILLIPS HD.SHOULDER SCREW - Call your local BRP dealership |
| 9 |
204390526 |
BRACKET, STAINLESS STEEL - Call your local BRP dealership |
| 10 |
207151660 |
HEX. SCREW M5 X 16 - Call your local BRP dealership |
| 11 |
232551600 |
Hex. Elastic Nut M5 |
| 12 |
234052600 |
Flat Washer 5 mm, Stainless |
| 13 |
277001693 |
THROTTLE CABLE - Call your local BRP dealership |
| 14 |
293730040 |
Mount Dart |
| 15 |
293750002 |
Tie Wrap 142 mm |
| 16 |
204390602 |
MECHANISM W/COTTER PINS - Call your local BRP dealership |
| 17 |
204390603 |
BEZEL - Call your local BRP dealership |
| 18 |
204390604 |
KIT-HARDWARE/BEZEL - Call your local BRP dealership |
| 19 |
204390606 |
Spring Shifter Kit |
| 20 |
204390607 |
CHROME TRIM KIT - Call your local BRP dealership |
| 21 |
204390608 |
Handle Kit |
