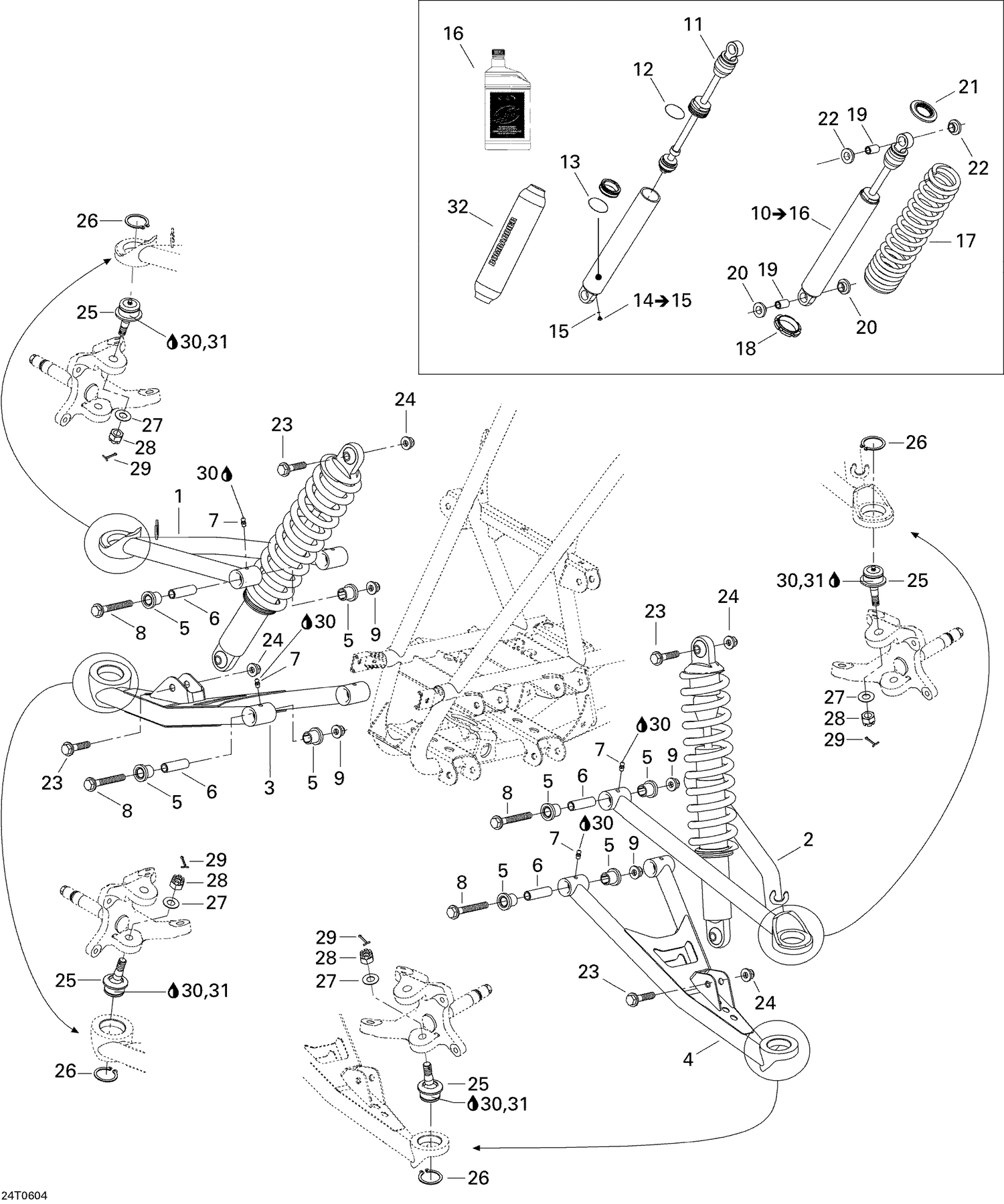

07- Front Suspension
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 706200382 | RH Upper Arm |
| 2 | 706200381 | LH UPPER ARM - Call your local BRP dealership |
| 3 | 706200376 | RH LOWER ARM - Call your local BRP dealership |
| 4 | 706200374 | LH LOWER ARM - Call your local BRP dealership |
| 5 | 706200063 | Cushion |
| 6 | 706200061 | Internal Bushing |
| 7 | 408200700 | Grease Fitting |
| 8 | 207607546 | Hex. Flange Screw M10 X 75 |
| 9 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 11 | 706200391 | PISTON ASS'Y - Call your local BRP dealership |
| 12 | 706200392 | O-ring |
| 13 | 706200393 | O-RING - Call your local BRP dealership |
| 15 | Not | Available As Spare Part - O-Ring |
| 16 | 503190103 | Oil Shock |
| 17 | 706200348 | SPRING - Call your local BRP dealership |
| 18 | 706200349 | SPRING SEAT - Call your local BRP dealership |
| 19 | 706200097 | Bushing |
| 20 | 706200099 | CUSHION - Call your local BRP dealership |
| 21 | 706200351 | SPRING RETAINER - Call your local BRP dealership |
| 22 | 706200412 | Bushing |
| 23 | 207605044 | Hex. Flange Screw M10 X 50 |
| 24 | 233201414 | Hex. Flange Elastic Nut M10 |
| 25 | 703500082 | Ball Joint |
| 26 | 293370017 | Circlip |
| 27 | 706200281 | Hardened Washer |
| 28 | 232221414 | Hex. Castellated Nut M12 |
| 29 | 211400017 | Cotter Pin |
| 30 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 31 | 413703100 | Loctite 609, 10 ml |
