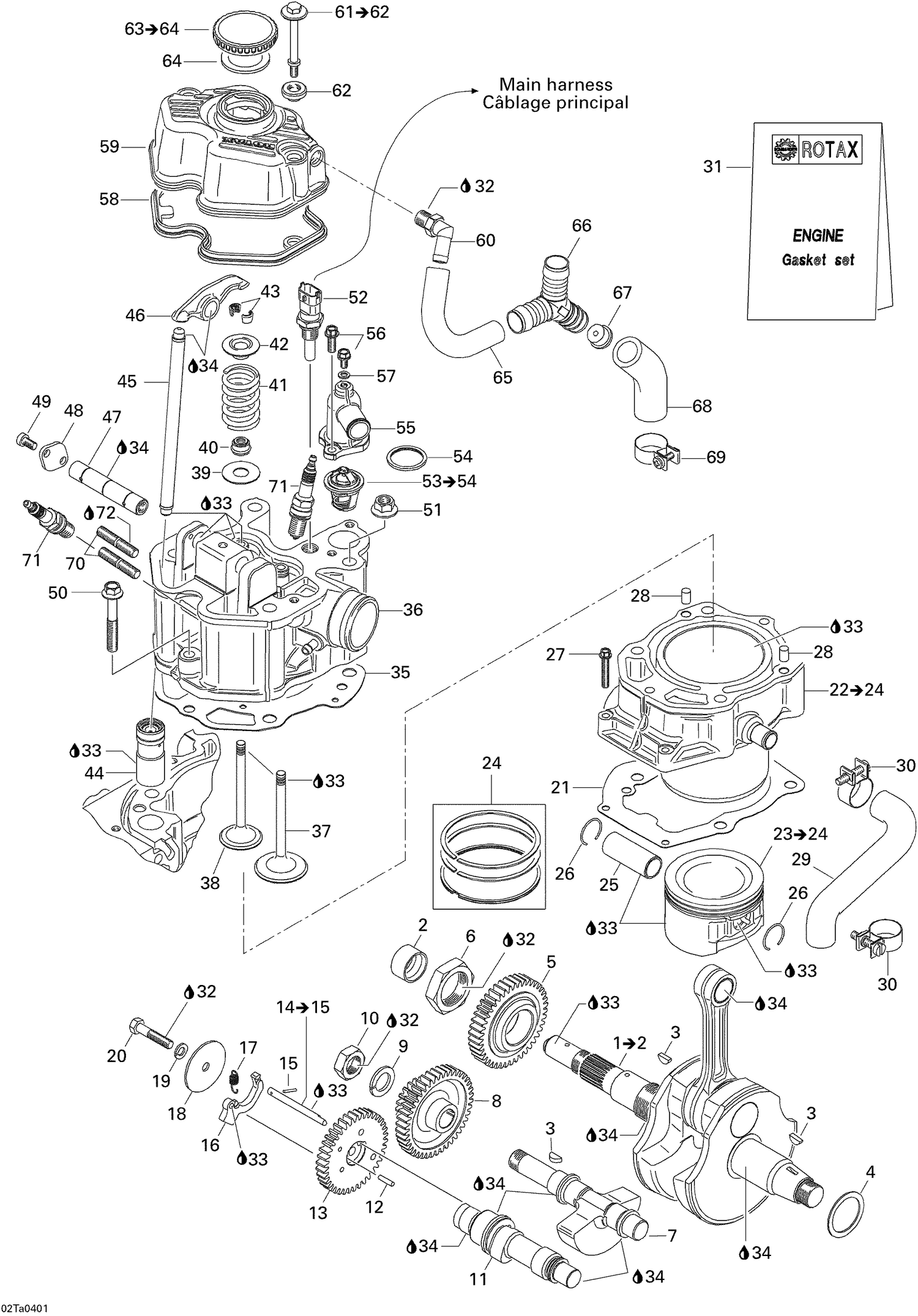

| Ref | Part Number | Description |
|---|
| 2 |
420247070 |
SPACER - Call your local BRP dealership |
| 3 |
420246570 |
Woodruff Key 4 X 5 |
| 4 |
420427505 |
WASHER-ADJUSTING DIN.988 - Call your local BRP dealership |
| 5 |
420635011 |
MATING GEAR, 42 TEETH - Call your local BRP dealership |
| 6 |
420842605 |
HEX. NUT M34 - Call your local BRP dealership |
| 7 |
420220470 |
Balance Shaft |
| 8 |
420635100 |
BALANCING GEAR DOUBLE - Call your local BRP dealership |
| 9 |
290945757 |
Lock Washer 18 mm |
| 10 |
420942220 |
HEX. NUT M18 - Call your local BRP dealership |
| 11 |
420220462 |
CAM SHAFT - Call your local BRP dealership |
| 12 |
420232420 |
Needle Pin |
| 13 |
420634956 |
CAM SHAFT GEAR, 38 TEETH - Call your local BRP dealership |
| 15 |
420929555 |
Groove pin |
| 16 |
420231050 |
Centrifugal Weight |
| 17 |
420239570 |
TENSION SPRING - Call your local BRP dealership |
| 18 |
420244260 |
RONDELLE - Call your local BRP dealership |
| 19 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 20 |
207084044 |
Hex. Screw M8 X 40 |
| 21 |
420650430 |
CYLINDER GASKET - Call your local BRP dealership |
| 24 |
420296114 |
Piston Ring Set |
| 25 |
420216225 |
Piston Pin |
| 26 |
420245431 |
CIRCLIP 22 MM - Call your local BRP dealership |
| 27 |
420941126 |
HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership |
| 28 |
420632010 |
Center Pin 8 X 12 |
| 29 |
420222285 |
WATER COOLING HOSE - Call your local BRP dealership |
| 30 |
420951760 |
Clamp |
| 31 |
420296372 |
Engine Gasket Set |
| 32 |
293800060 |
Loctite 243, 10 ml |
| 33 |
Not |
Available As Spare Part - Engine oil, mineral, API, SJ SAE 10W40 |
| 34 |
219704464 |
Was 420297616 Klueber Grease, 60g |
| 35 |
420650446 |
CYLINDER HEAD GASKET - Call your local BRP dealership |
| 36 |
420613375 |
CYLINDER HEAD - Call your local BRP dealership |
| 37 |
420254050 |
Inlet Valve 42 mm |
| 38 |
420254062 |
INLET VALVE 34 MM - Call your local BRP dealership |
| 39 |
420227980 |
THRUST WASHER - Call your local BRP dealership |
| 40 |
420230810 |
Valve Seal |
| 41 |
420239500 |
VALVE SPRING - Call your local BRP dealership |
| 42 |
420254100 |
VALVE SPRING RETAINER - Call your local BRP dealership |
| 43 |
420253090 |
VALVE COTTER - Call your local BRP dealership |
| 44 |
420854099 |
Valve Hydraulic Tappet This part replaces 420854094. |
| 45 |
420854575 |
PUSH ROD - Call your local BRP dealership |
| 46 |
420254083 |
Rocker Arm |
| 47 |
420254110 |
ROCKER ARM SHAFT - Call your local BRP dealership |
| 48 |
420244250 |
HOLDING STRIP - Call your local BRP dealership |
| 49 |
420241681 |
SOCKET HEAD SCREW M6 X 10 - Call your local BRP dealership |
| 50 |
420240326 |
Hex. Flange Screw M8 X 53.5 |
| 51 |
233101414 |
Hex. Flange Nut M10 |
| 52 |
278002895 |
Temperature Sensor This part replaces 420222425. |
| 54 |
420650300 |
Thermostat Gasket |
| 55 |
420222560 |
Thermostat Cover |
| 56 |
420241751 |
Hex. Flange Screw M6 X 16 |
| 57 |
404146600 |
Sealing Washer |
| 58 |
420650450 |
Gasket, Valve Cover |
| 59 |
420211835 |
VALVE COVER - Call your local BRP dealership |
| 60 |
420922242 |
Angular Tube This part replaces 420922245. |
| 62 |
420260050 |
Rubber Bushing |
| 64 |
420650990 |
Gasket Ring |
| 65 |
420222610 |
Formed Hose |
| 66 |
420874380 |
Y-Fitting |
| 67 |
420222590 |
FITTING - Call your local BRP dealership |
| 68 |
420222600 |
Formed Hose |
| 69 |
420951760 |
Clamp |
| 70 |
420940366 |
STUD M8 X 23 - Call your local BRP dealership |
| 71 |
707000008 |
Spark Plug NGK DR8EA |
| 420427506 |
Adjusting |
Washer 35 X 45 X 1.5 420427506 |
| 420427507 |
WASHER-ADJUSTING |
DIN.988 - Call your local BRP dealership 420427507 |
