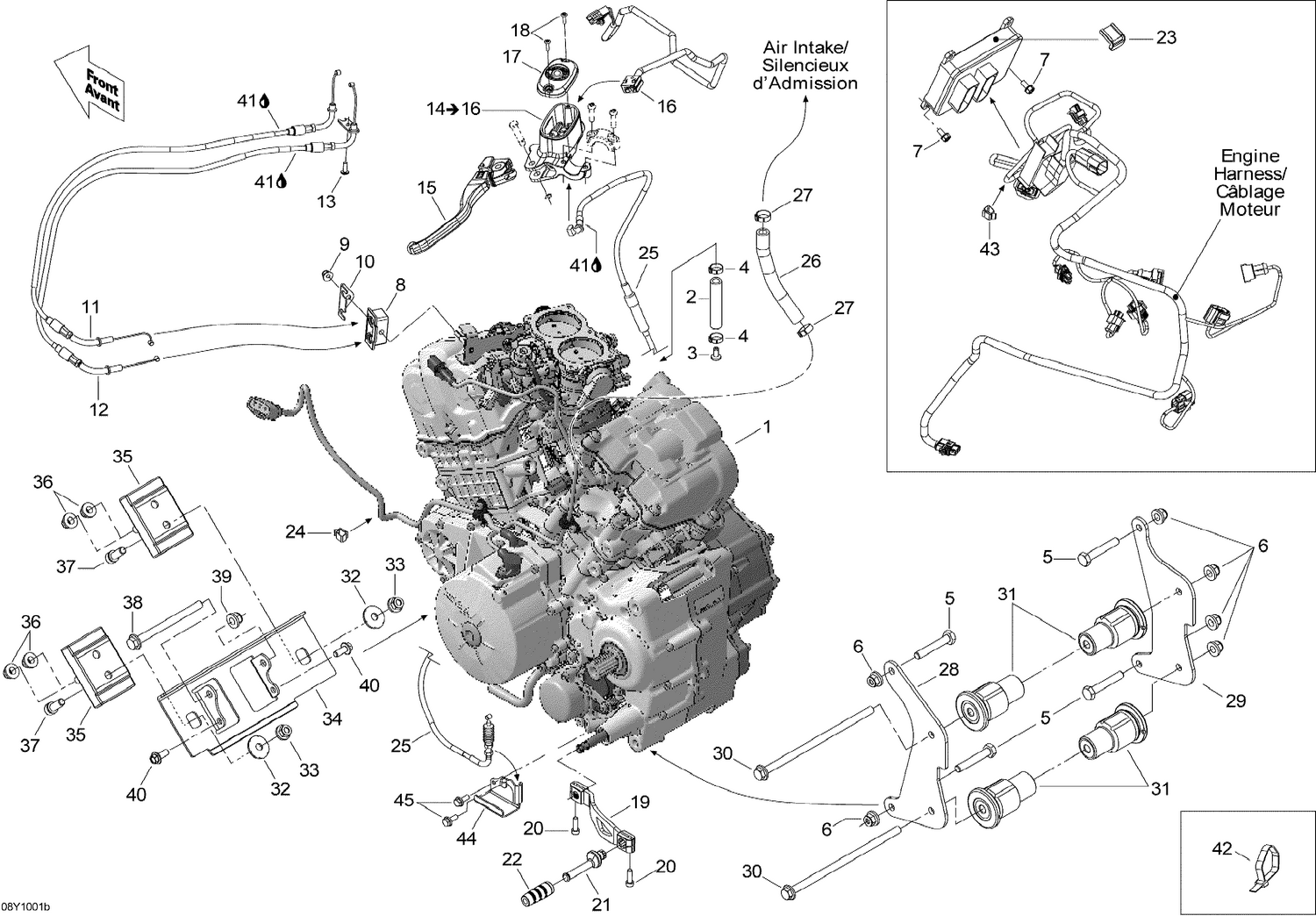

| Ref | Part Number | Description |
|---|
| 2 |
513033565 |
Hose |
| 3 |
707000946 |
PLUG - Call your local BRP dealership |
| 4 |
414415200 |
Spring Clamp |
| 5 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 6 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 7 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 8 |
707000609 |
INDEXING BLOCK - Call your local BRP dealership |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 10 |
707000610 |
FIXATION PLATE - Call your local BRP dealership |
| 11 |
707001208 |
THROTTLE CABLE - Call your local BRP dealership This part replaces 707000809. |
| 12 |
707001209 |
THROTTLE CABLE - Call your local BRP dealership This part replaces 707000810. |
| 13 |
250000742 |
Torx Screw M5 X 14 This part replaces 250000145. |
| 15 |
707000623 |
CLUTCH LEVER - Call your local BRP dealership |
| 16 |
710002086 |
SWITCH - Call your local BRP dealership |
| 17 |
707000616 |
COVER RESERVOIR - Call your local BRP dealership |
| 18 |
250000342 |
Screw 8-32 |
| 19 |
707000386 |
LEVER - Call your local BRP dealership |
| 20 |
250001077 |
Socket Head Screw Scotch Grip M6 X 20 This part replaces 514054047. |
| 21 |
707000455 |
Adjustment Rod |
| 22 |
707000456 |
End Clutch Pedal |
| 23 |
278001166 |
MODULE PROTECTOR - Call your local BRP dealership |
| 24 |
414227300 |
Clip |
| 25 |
707000811 |
CABLE REVERSE - Call your local BRP dealership This part replaces 707000400. |
| 26 |
219704436 |
HOSE-11.1MM. 1000MM LONG - Call your local BRP dealership |
| 27 |
293650186 |
Oetiker Clamp |
| 28 |
707000510 |
LH SUPPORT - Call your local BRP dealership |
| 29 |
707000512 |
RH SUPPORT - Call your local BRP dealership |
| 30 |
250000286 |
HEX. FLANGED SCREW M10 X 210 - Call your local BRP dealership |
| 31 |
707000516 |
RUBBER MOUNT - Call your local BRP dealership |
| 32 |
512056700 |
Lock Washer |
| 33 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 34 |
707000823 |
Front Engine Support |
| 35 |
707000441 |
RUBBER MOUNT - Call your local BRP dealership |
| 36 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 37 |
205002544 |
Socket Head Screw M10 X 25 |
| 38 |
230602546 |
Hex. Flange Screw M10 X 125 |
| 39 |
233201436 |
Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 40 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 41 |
293600041 |
CABLE LUBRICANT, 400 G - Call your local BRP dealership |
| 42 |
293750002 |
Tie Wrap 142 mm |
| 42 |
293750008 |
Tie Wrap 368 mm |
| 42 |
414115200 |
Tie-Rap 180 mm |
| 43 |
414227300 |
Clip |
| 44 |
420251565 |
REVERSE CABLE SUPPORT - Call your local BRP dealership |
