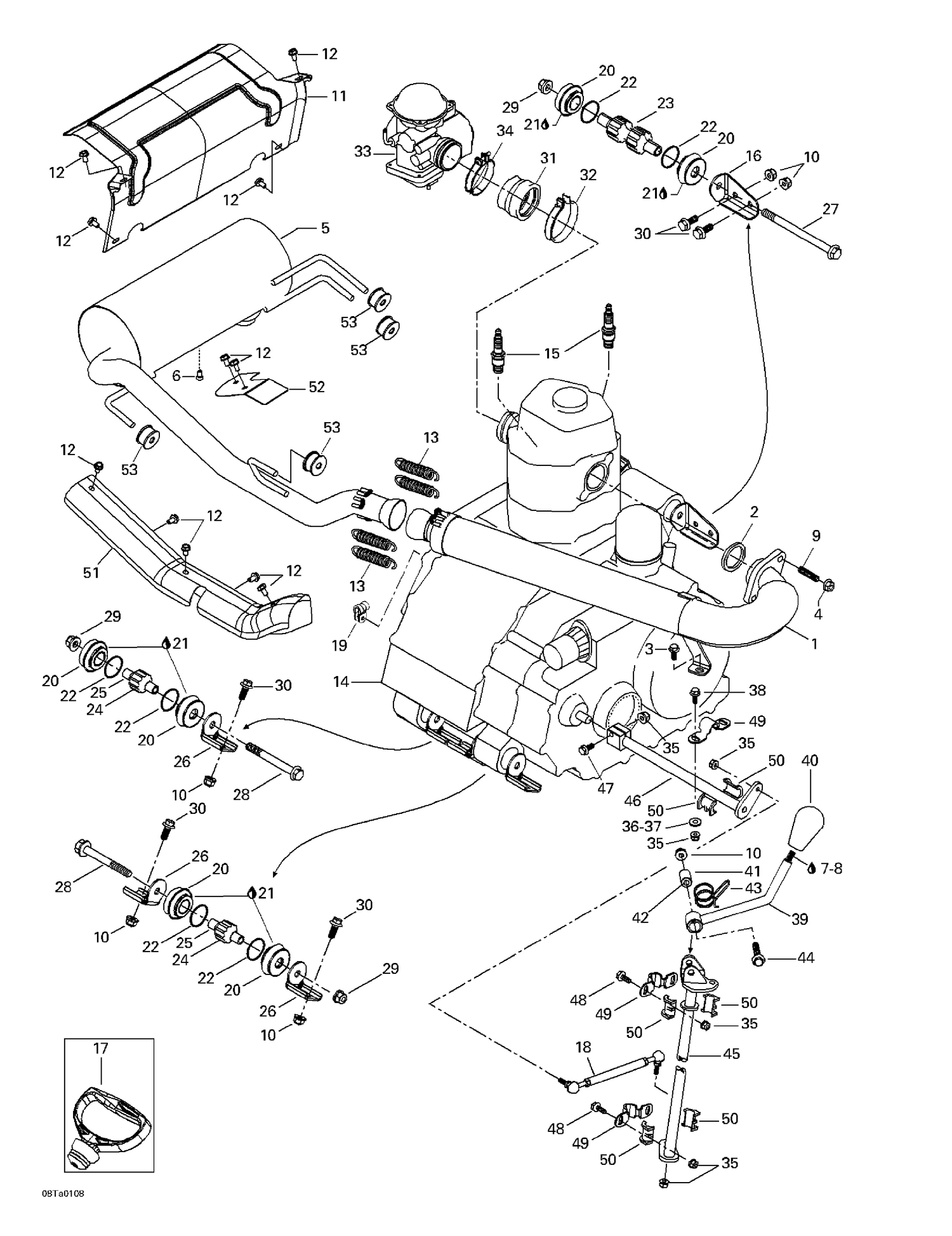

01- Exhaust System
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 707600062 | Tuned Pipe |
| 2 | 707600003 | GASKET - Call your local BRP dealership |
| 3 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 4 | 233081416 | Hex. Flange Nut M8 |
| 6 | 250500003 | Drain Plug |
| 7 | 219704458 | Was 293800041 Loctite Primer 7649 |
| 8 | 293800060 | Loctite 243, 10 ml |
| 9 | 711940366 | Stud M8 x 23 |
| 10 | 233281414 | Hex. Flange Elastic Nut M8 |
| 11 | 707600094 | Heat Shield |
| 12 | 210261040 | Hex. Flange Screw M6 X 10 |
| 13 | 415107100 | Spring |
| 14 | 707000041 | Rotax 4 Strokes Engine «511» |
| 15 | 707000008 | Spark Plug NGK DR8EA |
| 16 | 707000082 | Front Engine Bracket, Black |
| 17 | 711852515 | Starting Grip |
| 18 | 707000068 | Tie Rod Ass'y |
| 20 | 707000002 | Anti-Vibration Mount |
| 21 | 293550010 | Synthetic Grease, 400 G |
| 22 | 293300050 | O-Ring |
| 23 | 707000019 | ENGINE SUPPORT BUSHING - Call your local BRP dealership |
| 25 | 707000004 | RH LOWER BUSHING - Call your local BRP dealership |
| 26 | 705200197 | Engine Bracket |
| 27 | 230604044 | Hex. Flange Screw M10 X 140 |
| 28 | 207609544 | HEX. FLANGED SCREW M10 X 95 - Call your local BRP dealership |
| 29 | 233201414 | Hex. Flange Elastic Nut M10 |
| 30 | 207682044 | Hex. Flange Screw M8 X 20 |
| 31 | 707000037 | CARBURETOR ADAPTOR - Call your local BRP dealership |
| 32 | 512059062 | Clamp |
| 33 | 707200149 | Carburetor BSR 33-27 |
| 34 | 293650094 | Gear Clamp Gemi |
| 35 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 36 | 707000080 | Shim 1.0 mm |
| 37 | 707000081 | Shim 2.0 mm |
| 38 | 207662044 | Hex. Flange Screw M6 X 20 |
| 39 | 707000010 | LEVER ASS'Y - Call your local BRP dealership |
| 40 | 705500022 | LEVER BUTTON - Call your local BRP dealership |
| 41 | 705500193 | Adjuster Bushing |
| 42 | 705500150 | BUSHING - Call your local BRP dealership |
| 43 | 705500024 | LEVER SPRING - Call your local BRP dealership |
| 44 | 207685044 | Hex. Flange Screw M8 X 50 |
| 45 | 705500134 | Upper Tube |
| 46 | 705500135 | Lower Tube |
| 47 | 207663544 | Hex. Flange Screw M6 X 35 |
| 48 | 207661644 | Hex. Flange Screw M6 X 16 |
| 49 | 705500041 | RETAINER CLAMP - Call your local BRP dealership |
| 50 | 705500033 | Half Ring |
| 51 | 707600100 | Heat Shield |
| 52 | 707600148 | Heat Shield |
