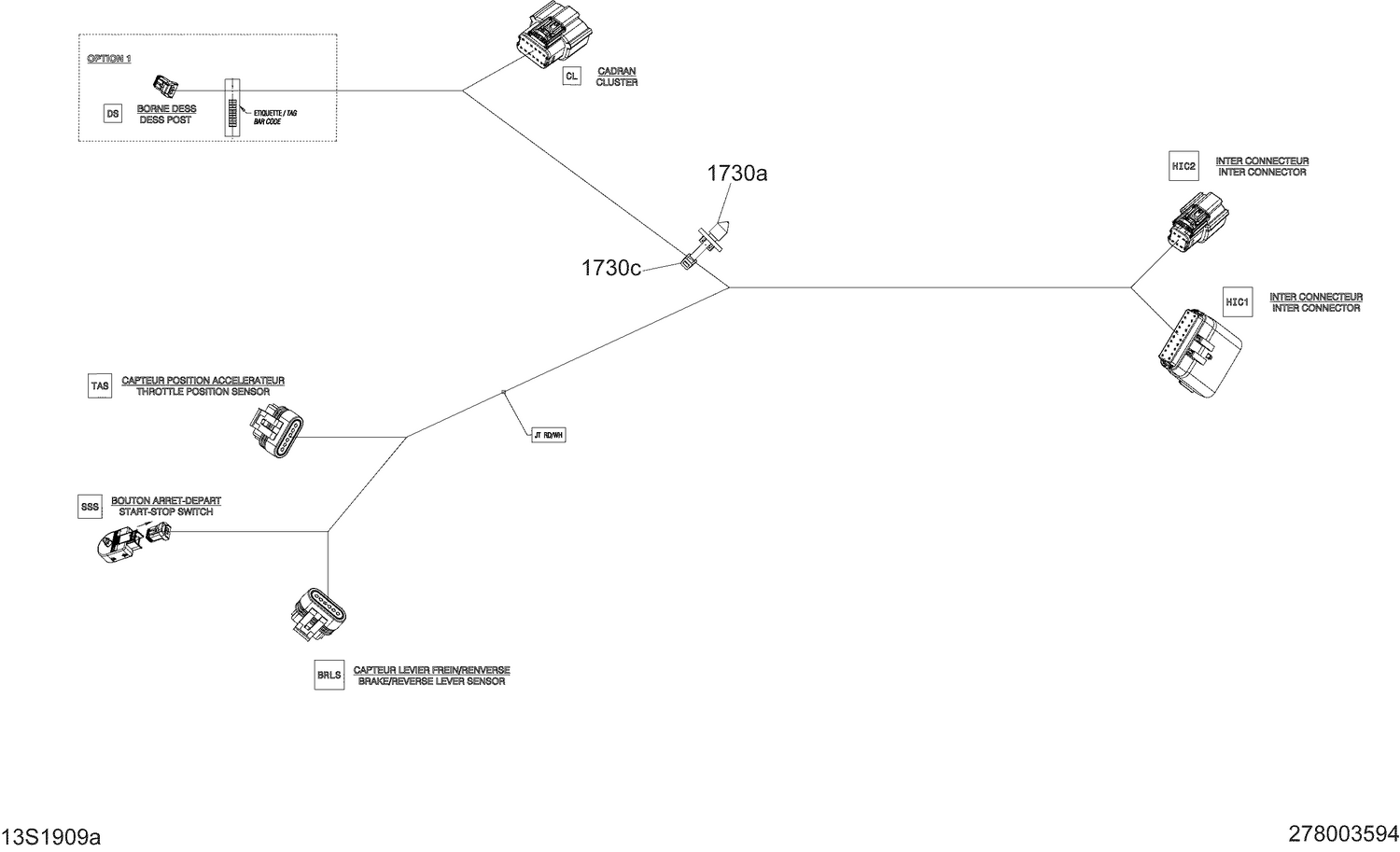

10- Steering Harness 278003594 Spark - Package 2 + 1 iBR - BASE
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| BRLS | 278002299 | Female Terminal Housing 6 Circuits |
| BRLS | 710001119 | Female Terminal |
| CL | 278002453 | Female Terminal |
| CL | 278002860 | Sealing Cap |
| CL | 278002994 | Housing, 12 Circuits |
| DS | 278002856 | Housing JAE 2 Circuits |
| DS | 278002857 | Female Terminal |
| HIC1 | 278002454 | Male Terminal |
| HIC1 | 278002852 | Housing 20 Circuits |
| HIC1 | 278002860 | Sealing Cap |
| HIC2 | 278002453 | Female Terminal |
| HIC2 | 278002894 | Housing 6 Circuits |
| SSS | 278002676 | Switch Start/Stop This part replaces 278002676. |
| SSS | 278002856 | Housing JAE 2 Circuits |
| SSS | 278002857 | Female Terminal |
| TAS | 278002299 | Female Terminal Housing 6 Circuits |
| 1730a | 293730040 | Mount Dart |
| 1730c | 710002714 | Tie-Rap |
