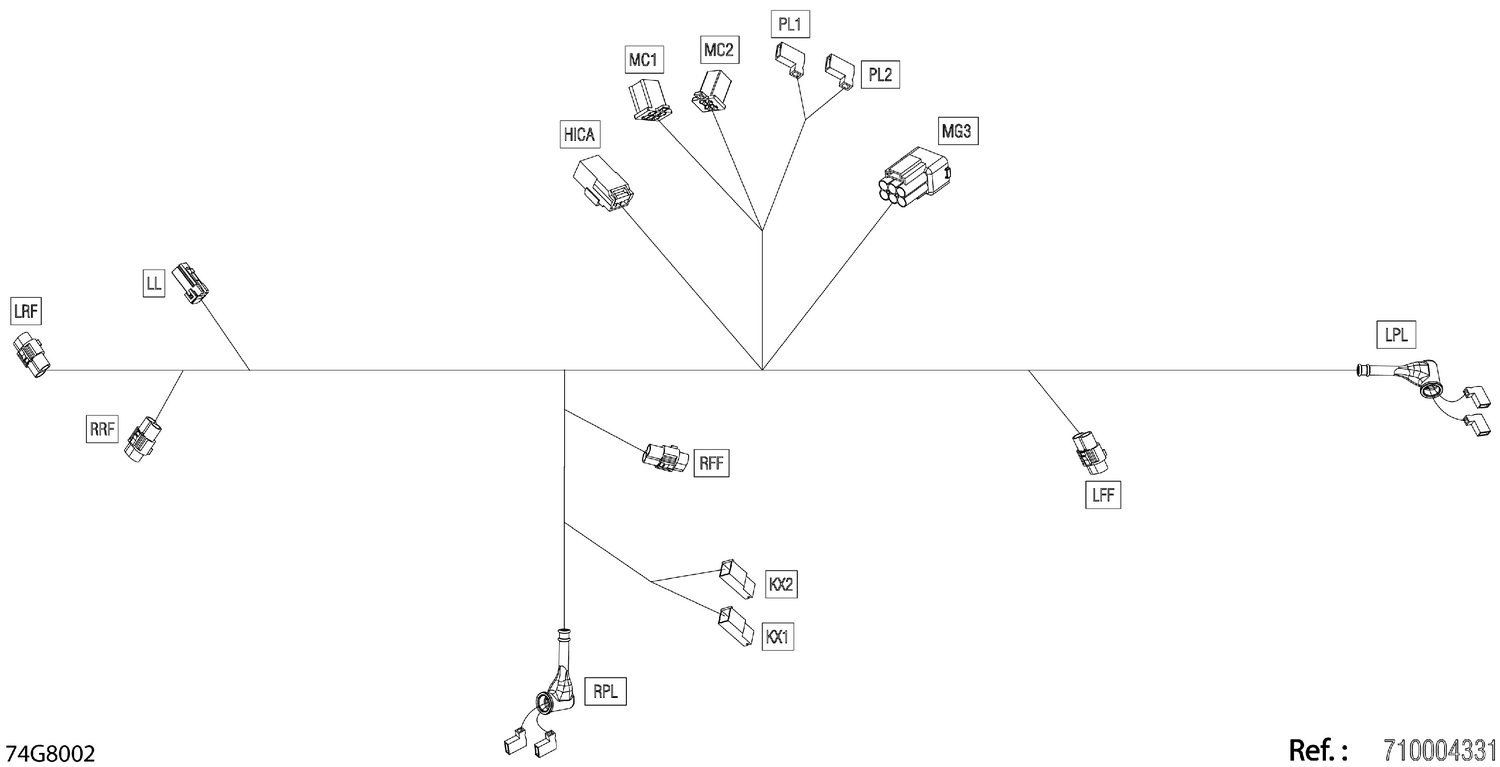

08- Electric - Position Light Harness - 710004331
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| KX1 | 409010100 | Female Terminal |
| KX1 | 409010400 | Female Terminal Housing, 1 Circuit |
| KX2 | 409010100 | Female Terminal |
| KX2 | 409010400 | Female Terminal Housing, 1 Circuit |
| LFF | 409012100 | Female Terminal |
| LFF | 409012300 | Seal |
| LL | 515175231 | Female Terminal |
| LL | 515175658 | Female Housing, 2 Circuits |
| LPL | 710003269 | Cap Protector |
| LPL1 | 409010300 | Female Terminal |
| LPL2 | 409010300 | Female Terminal |
| LRF | 409012100 | Female Terminal |
| LRF | 409012300 | Seal |
| MC1 | 710002315 | Terminal |
| MC1 | 710004047 | Female Housing |
| MC2 | 710002315 | Terminal |
| MC2 | 710004048 | Female Housing |
| MG3 | 409011300 | Male Terminal |
| MG3 | 409012300 | Seal |
| MG3 | 710000080 | Cap |
| MG3 | 710001446 | Male Housing Terminal, 6 Circuits |
| PL1 | 409010300 | Female Terminal |
| PL2 | 409010300 | Female Terminal |
| RFF | 409012100 | Female Terminal |
| RFF | 409012300 | Seal |
| RPL | 710003269 | Cap Protector |
| RPL1 | 409010300 | Female Terminal |
| RPL2 | 409010300 | Female Terminal |
| RRF | 409012300 | Seal |
| 730 | 710004331 | Wiring Harness Ass'y |
