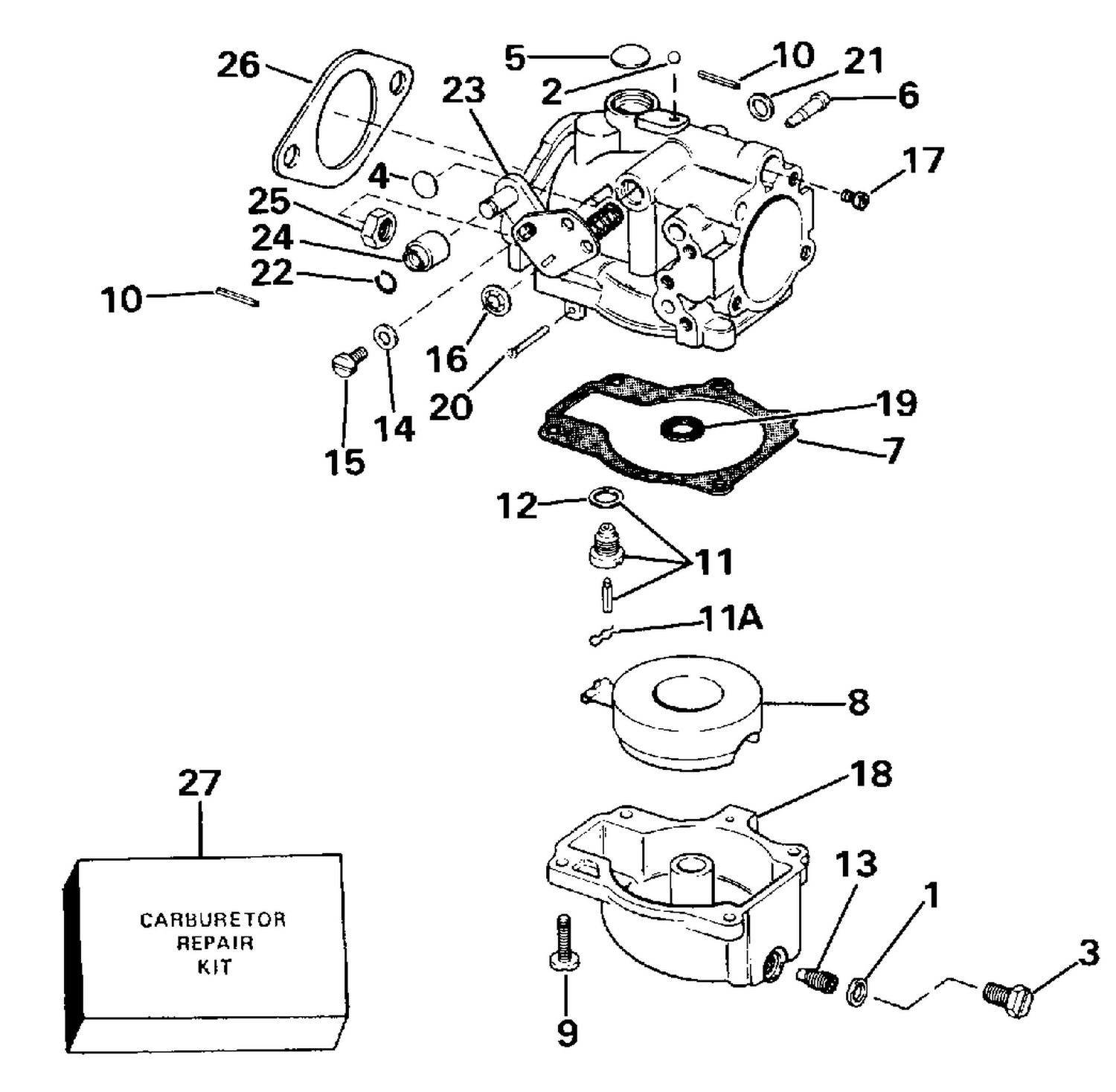

CARBURETOR
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 0319682 | VIS, capteur vers plaque |
| 11A | 0336842 | CLIP, SPRING This part replaces 0603145. |
| 13 | 0321407 | ORFICE PLUG (54D) |
| 15 | 0306014 | VIS, ancrage |
| 17 | 0322936 | ORIFICE, # 28 |
| 17 | 0328549 | ORIFICE, #24, 90 |
| 22 | 0308776 | O-RING |
| 23 | 0397036 | LEVER & PIN |
| 24 | 0397499 | ROLLER & SLEEVE ASSY. |
| 25 | 0316355 | BUT, Carburetor mounting |
| 26 | 0325092 | GASKET |
| 0396964 | 0396964 | CARBURETOR ASSEMBLY |
