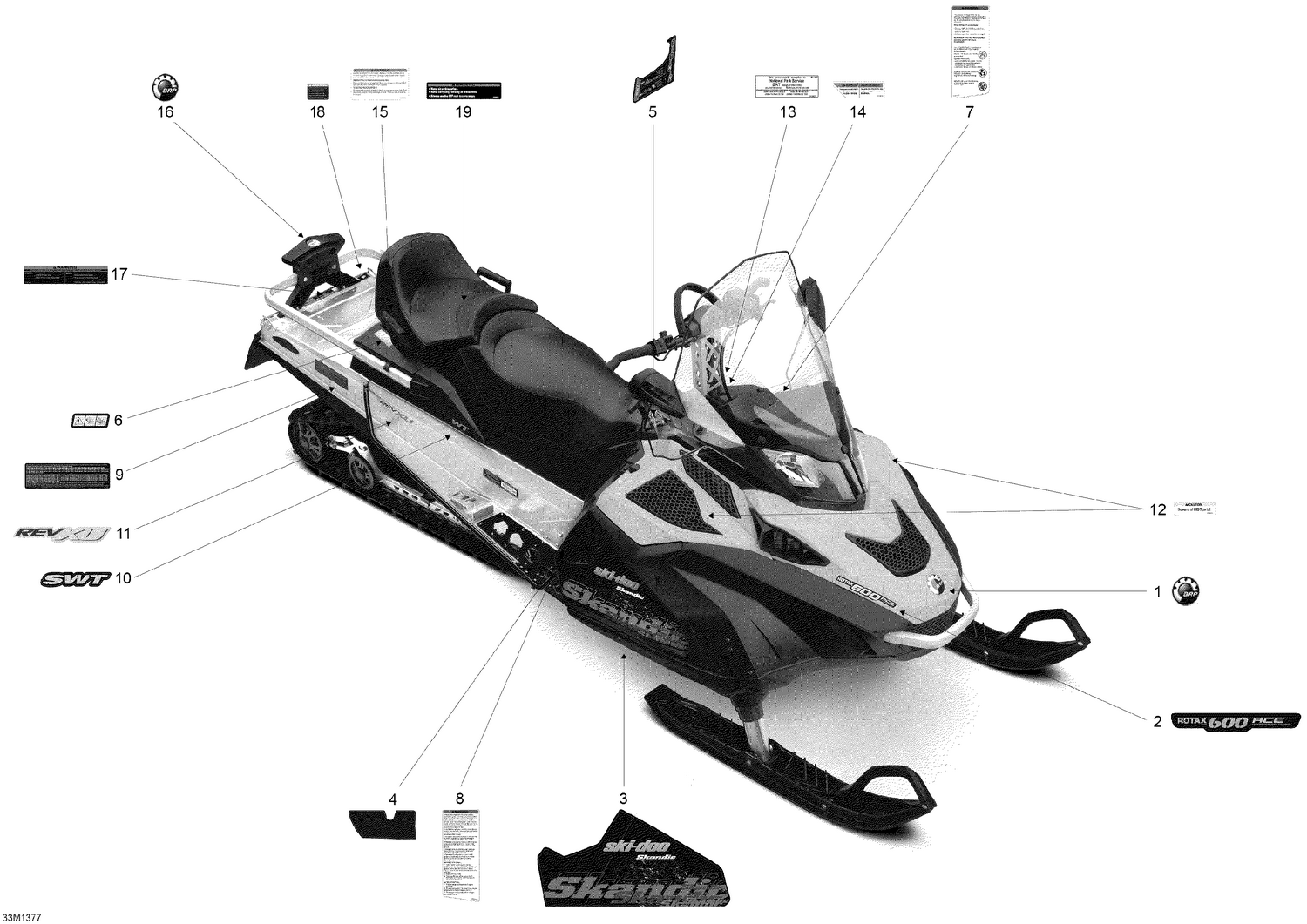

| Ref | Part Number | Description |
|---|
| 1 |
516008739 |
BRP Logo 68mm This part replaces 219903609. |
| 2 |
516004360 |
Hood Decal "Rotax 600 Ace" |
| 3 |
516004343 |
LH. SIDE DECAL - Call your local BRP dealership |
| 3 |
516004344 |
RH. SIDE DECAL - Call your local BRP dealership |
| 4 |
516005121 |
RH Tunnel Decal |
| 4 |
516005122 |
LH Tunnel Decal |
| 5 |
516004305 |
Instruction Label, Transmission |
| 6 |
516005111 |
Instruction Decal, Back Seat Locking |
| 7 |
516004652 |
Warning Decal |
| 8 |
516004653 |
Warning Decal |
| 9 |
Not |
Available As Spare Part - Label Pending |
| 10 |
516005048 |
Decal " SWT " |
| 11 |
516004201 |
DECAL, REV XU - Call your local BRP dealership |
| 12 |
516004651 |
Caution Label, Air Intake |
| 13 |
516005893 |
Decal, National Park Service |
| 14 |
516005683 |
Security label, drive pulley cover |
| 15 |
516005682 |
DECAL WARNING - Call your local BRP dealership |
| 16 |
219903947 |
BRP Logo 48 mm |
| 17 |
516004960 |
Rear Security Decal, English |
| 18 |
516004650 |
WARNING DECAL - Call your local BRP dealership |
