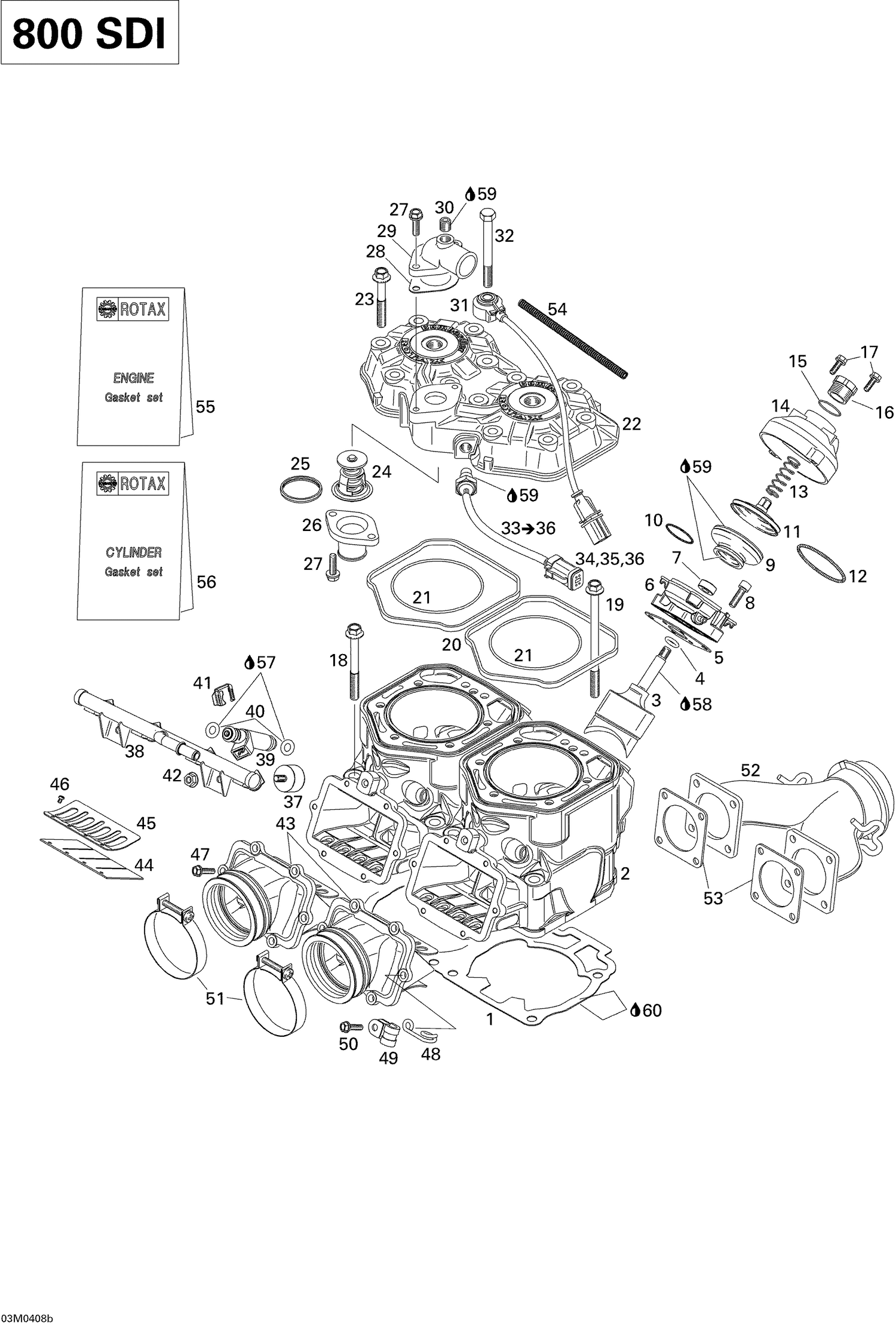

01- Cylinder, Exhaust Manifold, Reed Valve (800)
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420931838 | GASKET 0.5 - Call your local BRP dealership |
| 2 | 420923813 | Cylinder-Nicasil |
| 3 | 420854660 | Exhaust Valve |
| 4 | 420430110 | O-Ring |
| 5 | 420931542 | Gasket |
| 6 | 420854454 | VALVE HOUSING - Call your local BRP dealership |
| 7 | 420950732 | Oil Seal This part replaces 420950730. |
| 8 | 205062544 | Socket Head Screw M6 X 25 |
| 9 | 420260729 | Bellows |
| 10 | 420838255 | Hose Spring |
| 11 | 420854449 | Exhaust Valve |
| 12 | 420939281 | Hose Spring This part replaces 420939280. |
| 13 | 420239941 | SPRING - Call your local BRP dealership |
| 14 | 420911559 | Valve Cover This part replaces 420911558. |
| 15 | 420430220 | O-Ring |
| 16 | 420241221 | Adjuster Screw |
| 17 | 420241271 | Hex. Taptite Screw M5 X 25 This part replaces 420241270. |
| 18 | 420640524 | Hex. Collar Screw |
| 19 | 420640534 | Hex. Collar Screw |
| 20 | 420931590 | Rubber Ring |
| 21 | 420931410 | O-Ring |
| 22 | 420923825 | Cylinder Head Cover, Silver |
| 23 | 420941627 | Hex. Screw M8 X 56.5 This part replaces 420941621. |
| 24 | 420922519 | Thermostat This part replaces 420922518. |
| 25 | 420931272 | Sealing Ring |
| 26 | 420922025 | BENT OUTLET SOCKET - Call your local BRP dealership |
| 27 | 420941251 | SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 28 | 420850339 | Gasket This part replaces 420850338. |
| 29 | 420922062 | BENT OUTLET SOCKET - Call your local BRP dealership |
| 30 | 420240480 | PLUG SCREW - Call your local BRP dealership |
| 31 | 270000484 | Noise Sensor This part replaces 420664030. |
| 32 | 420941221 | HEX. SCREW M8 X 80 - Call your local BRP dealership |
| 34 | 278000739 | Male Connector, 4 Circuits |
| 35 | 278000632 | Female Terminal |
| 36 | 515175677 | MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 37 | 420960065 | STOPPER - Call your local BRP dealership |
| 38 | 420874460 | Fuel Rail Ass’Y |
| 39 | 420874485 | Fuel Injectors |
| 40 | 420631220 | O-Ring |
| 41 | 420851800 | CLIP - Call your local BRP dealership |
| 42 | 420442172 | NUT - Call your local BRP dealership |
| 43 | 420867230 | CARBURETOR SOCKET - Call your local BRP dealership |
| 44 | 420924680 | Reed Pedal |
| 45 | 420924695 | Reed Pedal Stop |
| 46 | 420941215 | Phillips Screw M3 X 5 |
| 47 | 420941928 | Taptite Screw M5 X 16 This part replaces 420941925. |
| 48 | 420853640 | Bracket |
| 49 | 414176000 | Open Clamp This part replaces 420853412. |
| 50 | 420841550 | Tapping Screw M5 X 22 |
| 51 | 420851810 | CLAMP - Call your local BRP dealership |
| 52 | 420673245 | Exhaust Manifold |
| 53 | 420931850 | Gasket |
| 54 | 420460010 | TUBE - Call your local BRP dealership |
| 55 | 420888741 | Gasket Engine Kit |
| 56 | 420888745 | CYLINDER GASKET - Call your local BRP dealership |
| 57 | 413707000 | Dow Corning 111, 150 g |
| 58 | Not | Available As Spare Part - Engine Oil, Mineral, Api Sj Sae 10W40 |
| 59 | 420297907 | Sealing Compound Loctite 5366 310Ml This part replaces 420297906. |
