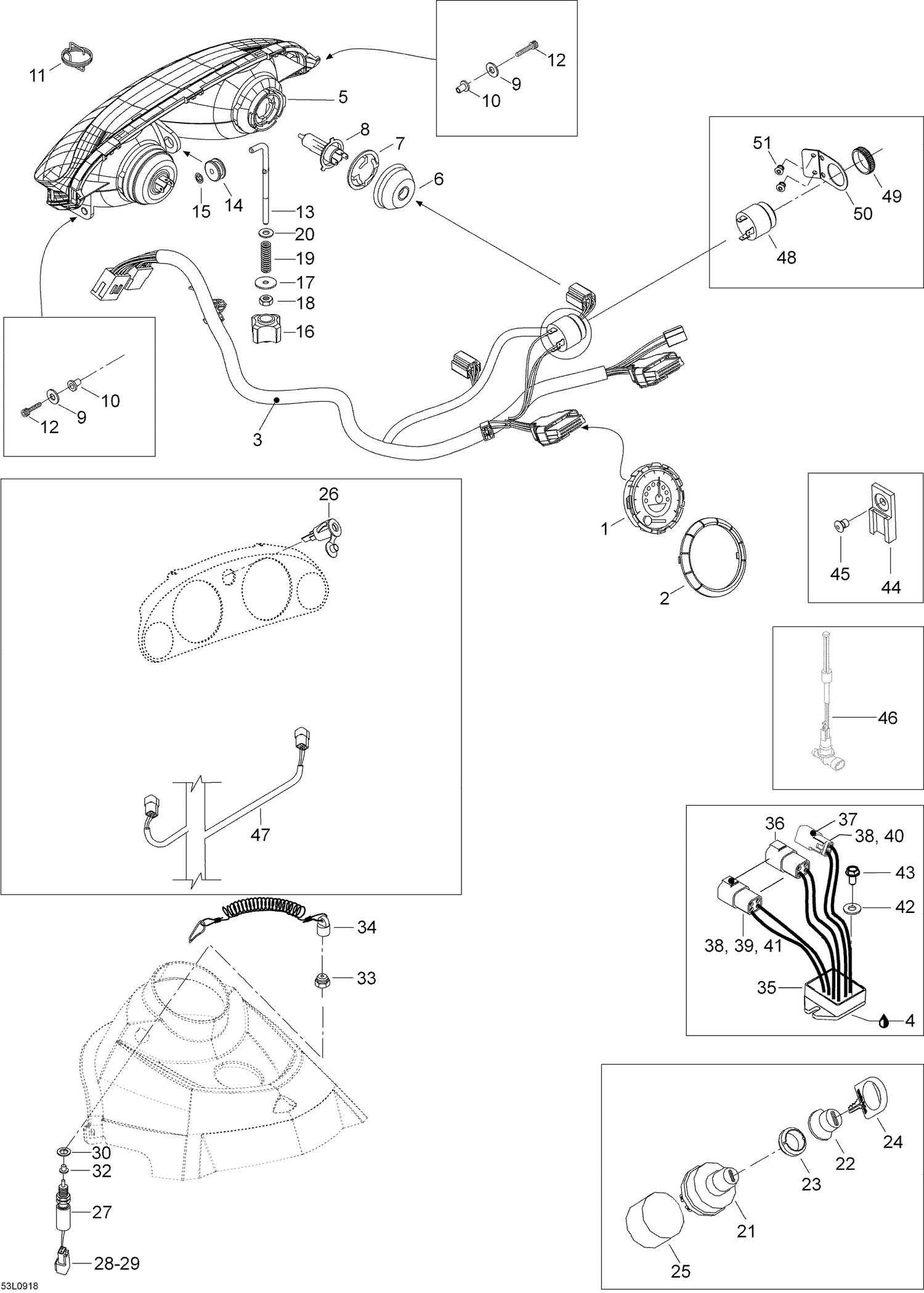

| Ref | Part Number | Description |
|---|
| 1 |
515176476 |
SPEEDOMETER - Call your local BRP dealership |
| 2 |
515179005 |
Gauge Ring This part replaces 515176242. |
| 3 |
605355301 |
WIRING HARNESS ASSY - Call your local BRP dealership |
| 4 |
413707500 |
Lithium-grease |
| 6 |
515175911 |
COVER - Call your local BRP dealership |
| 7 |
515176385 |
BULB HOLDER - Call your local BRP dealership |
| 8 |
515176274 |
Halogen bulp |
| 9 |
20008 |
Washer A5,3 |
| 10 |
250100018 |
NUT M5 - Call your local BRP dealership |
| 11 |
5447238 |
Spring |
| 12 |
40235 |
Hex. screw M5 x 35 |
| 13 |
605450023 |
ADJUSTER ROD - Call your local BRP dealership |
| 14 |
415100800 |
Grommet - Call your local BRP dealership |
| 15 |
36084 |
Nut Push |
| 16 |
515175548 |
Handle - Call your local BRP dealership |
| 17 |
20038 |
Washer 6mm |
| 18 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 19 |
415100600 |
SPRING - Call your local BRP dealership |
| 20 |
20003 |
Washer A6,4 |
| 21 |
515176548 |
IGNITION SWITCH - Call your local BRP dealership |
| 22 |
570013700 |
Boot |
| 23 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 24 |
415129350 |
BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 25 |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 26 |
710001248 |
Flush mounted socket |
| 27 |
515175653 |
Brake Switch This part replaces 515176525. |
| 28 |
605642628 |
CONNECTOR - Call your local BRP dealership |
| 29 |
42608 |
Male terminal housing |
| 30 |
25004 |
Cup Spring |
| 31 |
570151100 |
Plunger Cap |
| 32 |
605454413 |
SLEEVE - Call your local BRP dealership |
| 33 |
515145900 |
Switch Nut |
| 34 |
515178283 |
Cap Ass'y This part replaces 515176463. |
| 36 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 37 |
278001674 |
Male terminal housing |
| 38 |
515175568 |
Female terminal |
| 39 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 40 |
278001672 |
Male lock |
| 41 |
293000052 |
Sealing Cap |
| 42 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 43 |
40030 |
Hex. screw M6 x 20 |
| 44 |
270000141 |
Clip This part replaces 515175917. |
| 45 |
36005 |
Rivet |
| 46 |
605452095 |
OIL SENSOR - Call your local BRP dealership |
| 47 |
605354843 |
MAIN HARNESS - Call your local BRP dealership |
| 48 |
414792102 |
Horn |
| 49 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 50 |
5447941 |
HORN SUPPORT - Call your local BRP dealership |
