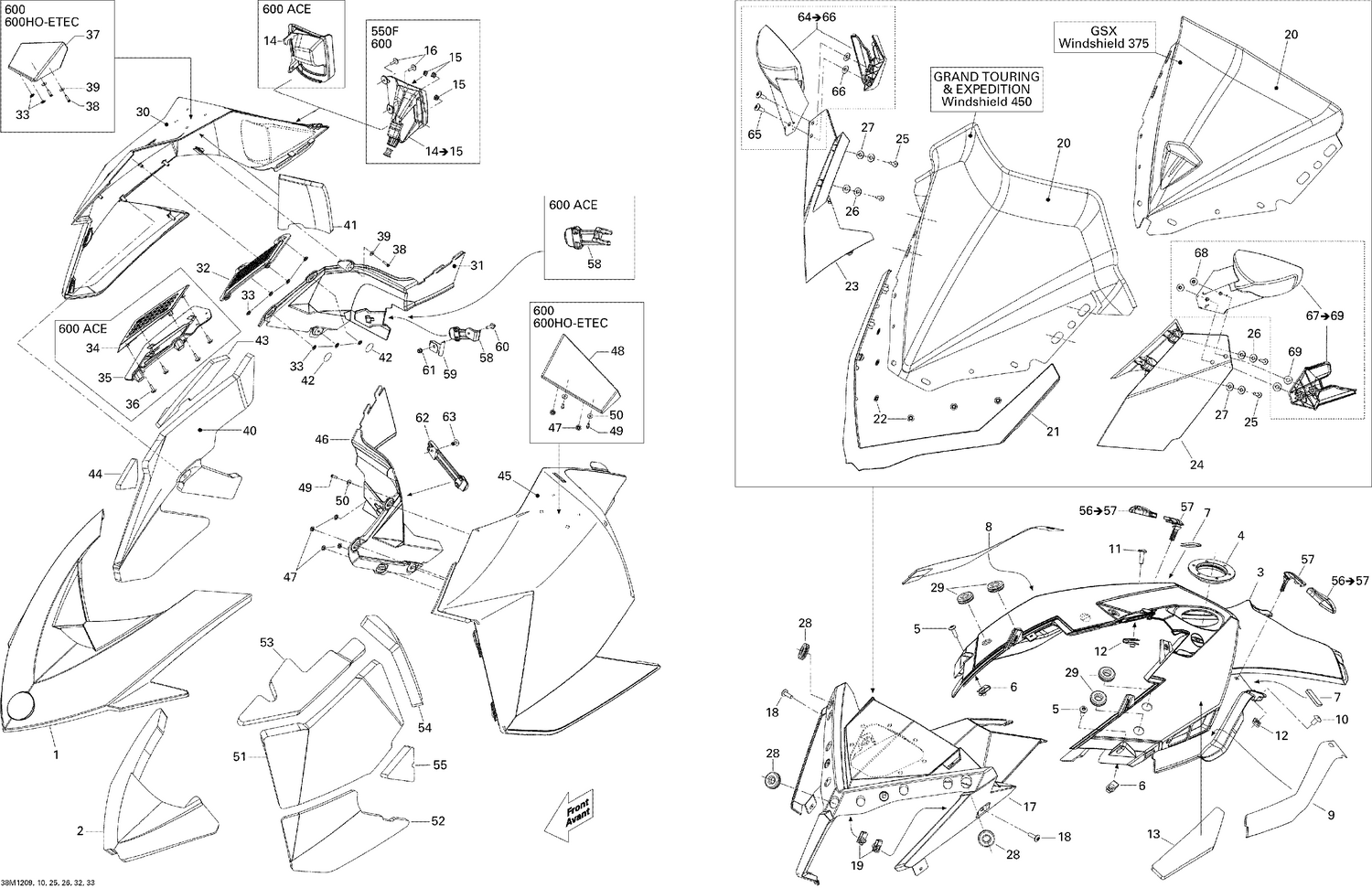

09- Hood, Windshield And Console

09- Hood, Windshield And Console

Parts (50)

RefPart NumberDescription
1 517304530 Deep Black Hood
2 517304913 Hood Foam
3 517303924 CONSOLE B-160 - Call your local BRP dealership
4 517304518 Console Nut
5 250000722 Torx Screw M6 X 20 This part replaces 250000128.
6 250100198 Panel Nut M6 X 1.0 This part replaces 250100113.
7 XXX Not Available As Spare Parts
8 XXX Not Available As Spare Parts
9 XXX Not Available As Spare Parts
10 250000721 Torx Truss Screw M6 X 16 This part replaces 250000129.
11 250000722 Torx Screw M6 X 20 This part replaces 250000128.
12 250100198 Panel Nut M6 X 1.0 This part replaces 250100113.
13 XXX Not Available As Spare Parts
15 XXX Not Available As Spare Parts
16 XXX Not Available As Spare Parts
18 250000722 Torx Screw M6 X 20 This part replaces 250000128.
19 250100198 Panel Nut M6 X 1.0 This part replaces 250100113.
21 517303607 Windshield Support
22 732610072 Push Nut
25 250000720 Torx Screw K50 X 16 This part replaces 250000146.
26 250200025 Washer M5
27 250200024 Rubber Washer 5 mm
28 517303756 Grommet
29 517303756 Grommet
31 517303671 Deep Black RH Moulding Panel
32 XXX Not Available As Spare Parts
33 732610072 Push Nut
37 XXX Not Available As Spare Parts
40 517304883 RH Center Foam
41 517304884 RH Panel Rear Foam
42 518325560 Adhesive Patch
43 XXX Not Available As Spare Parts
44 XXX Not Available As Spare Parts
46 517303673 Deep Black, LH Moulding Panel
47 732610072 Push Nut
48 XXX Not Available As Spare Parts
51 517304887 LH Panel Center Foam
52 517304888 LH Panel Lower Foam
53 517304889 LH Panel Upper Foam
54 517304890 LH Panel Rear Foam
55 517304891 Foam
57 517303981 Panel Latch
59 XXX Not Available As Spare Parts
60 XXX Not Available As Spare Parts
61 XXX Not Available As Spare Parts
62 517303808 LH Panel Latch
63 250000722 Torx Screw M6 X 20 This part replaces 250000128.
65 250000721 Torx Truss Screw M6 X 16 This part replaces 250000129.
66 250200024 Rubber Washer 5 mm
68 250000721 Torx Truss Screw M6 X 16 This part replaces 250000129.
