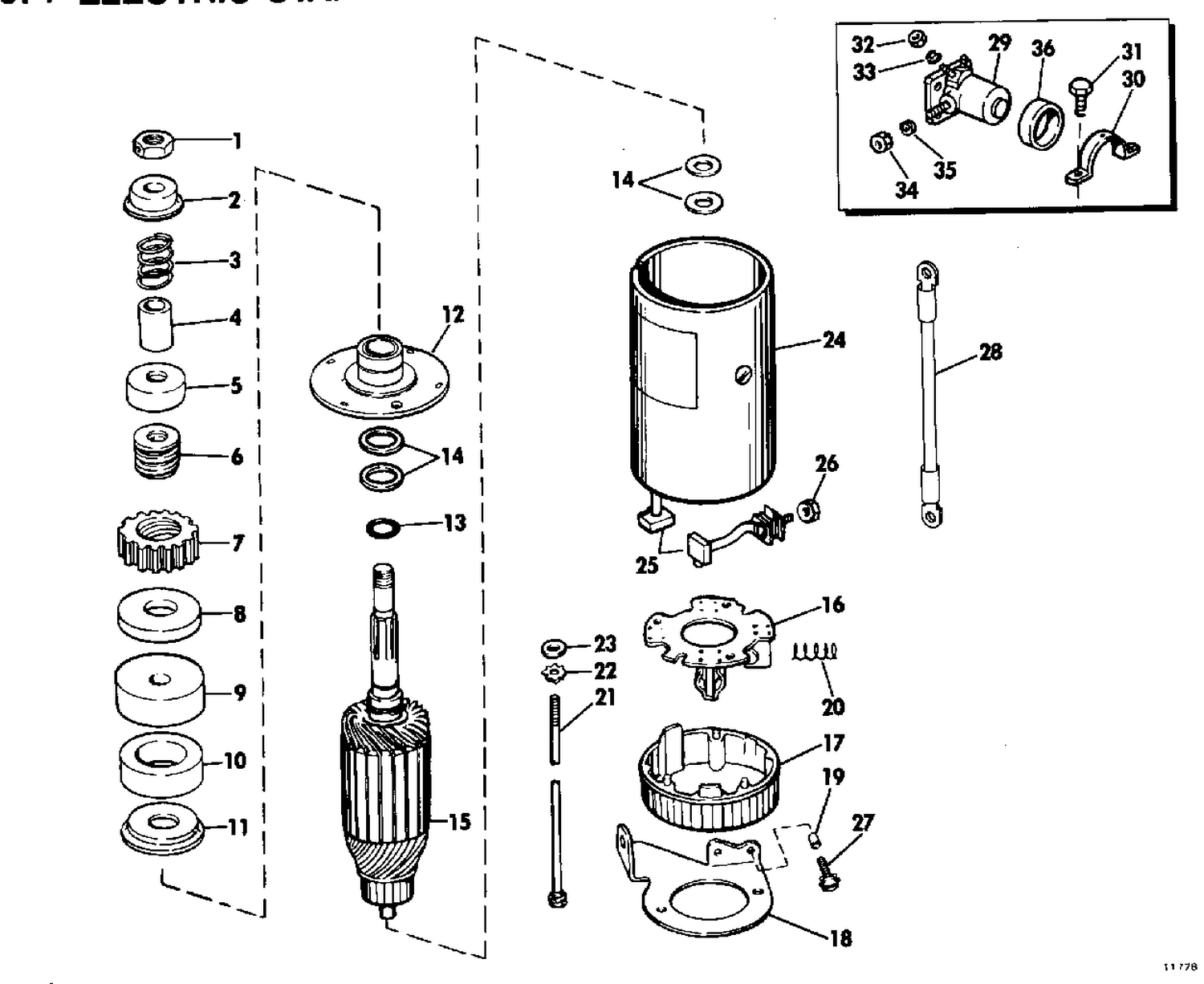

| Ref | Part Number | Description |
|---|
| 6 |
0387382 |
PINION & SCR SHAFT PKG This part replaces 0311863. |
| 7 |
0387382 |
PINION & SCR SHAFT PKG This part replaces 0311861. |
| 12 |
0381582 |
END HEAD , Drive |
| 13 |
0310996 |
O RING |
| 14 |
0385448 |
THRUST WASHER PKG |
| 15 |
0379968 |
ARMATURE ASSEMBLE |
| 16 |
0379967 |
BRUSH PLATE & HOLDER |
| 17 |
0379966 |
HEAD ASSEMBLY, Commutator end |
| 18 |
0380240 |
BRACKET & SLEEVE ASSY |
| 20 |
0383891 |
SPRING SET This part replaces 0311128. |
| 21 |
0385847 |
THRU BOLT PKG |
| 23 |
0302471 |
W.ASHER, Plain |
| 24 |
0379969 |
FRAME & FIELD |
| 27 |
0311366 |
SCEW, Support |
| 28 |
0380096 |
CABLE, Starter to solenoid |
| 30 |
0330112 |
BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 31 |
0552062 |
SCREW, Clamp |
| 0380239 |
0380239 |
STARTER MOTOR ASSY |
